9. MAJOR UNIT REPLACEMENT EO18-33027

9.4 STEPPING MOTOR ASS’Y

9-7

9.4 STEPPING MOTOR ASS’Y

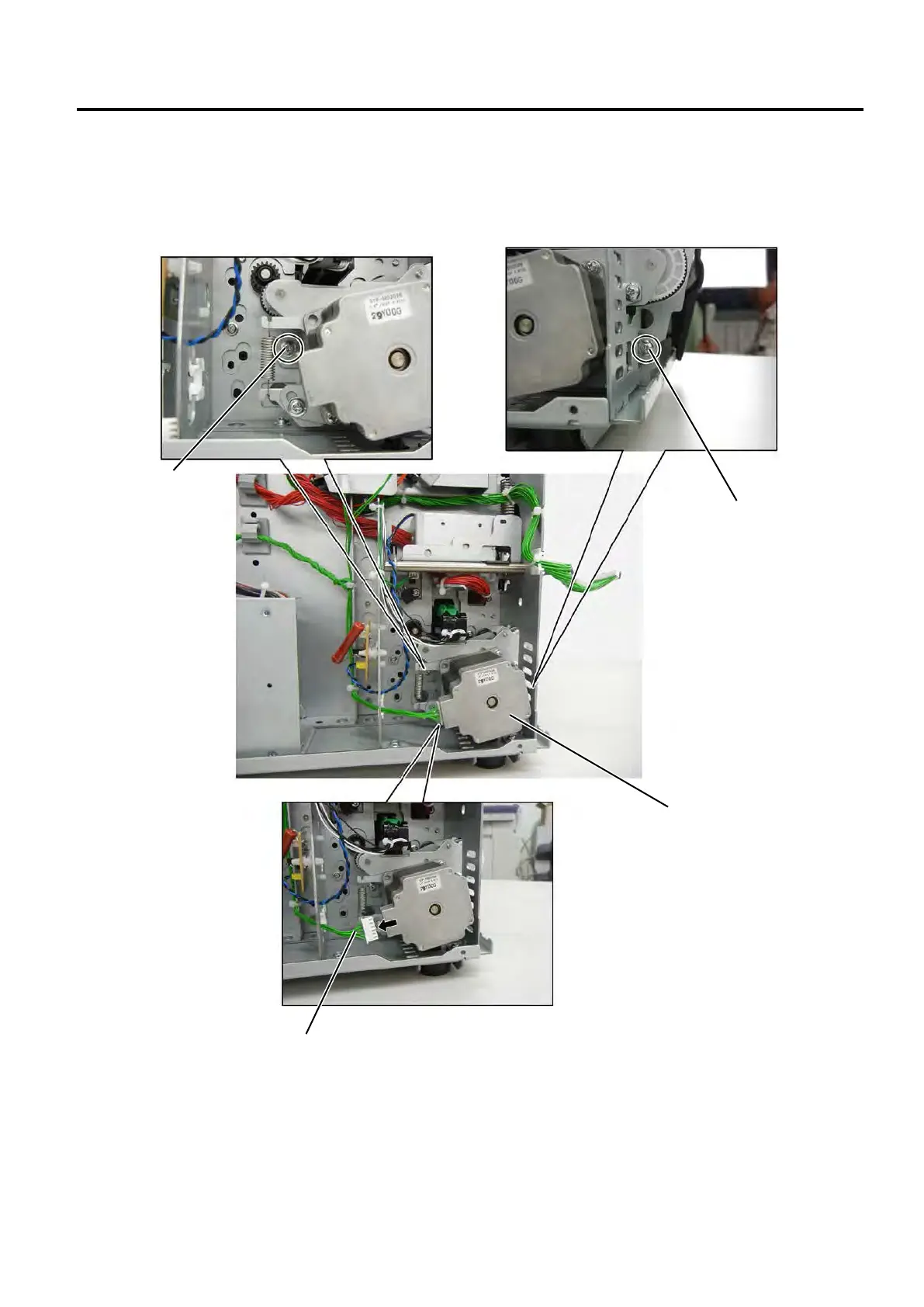

1) Remove the side panel (L). (Refer to Section 3.2.)

2) Disconnect the stepping motor harness from the stepping motor ass’y.

3) Remove the two SMW-4x8 screws to detach the stepping motor ass’y.

SMW-4x8 Screw

Stepping Motor Harness

Stepping Motor Ass’y

SMW-4x8 Screw
