9. MAJOR UNIT REPLACEMENT EO18-33027
9.7 PRINT HEAD
9-15
9.7 PRINT HEAD
CAUTION!
1. Never touch the element when handling the print head.
2. Never touch the connector pins to avoid a breakdown of the print head by static electricity.
3. Never remove the screws which secure the print head to the bracket. Doing so may cause
improper print quality.
4. Never disassemble the head block frame. Doing so may cause a print failure, such as ribbon
wrinkle, blurred print, etc.
5. When replacing parts or performing maintenance on the printer, be careful not to damage the
print head with a hard object like a watch or a ring.
Since the print head element can be easily damaged by shock, please treat it carefully by not hitting
a hard object against it.
WA
NING
Never perform the replacement just after printing. Doing so may cause you to be injured by the print
head being hot.

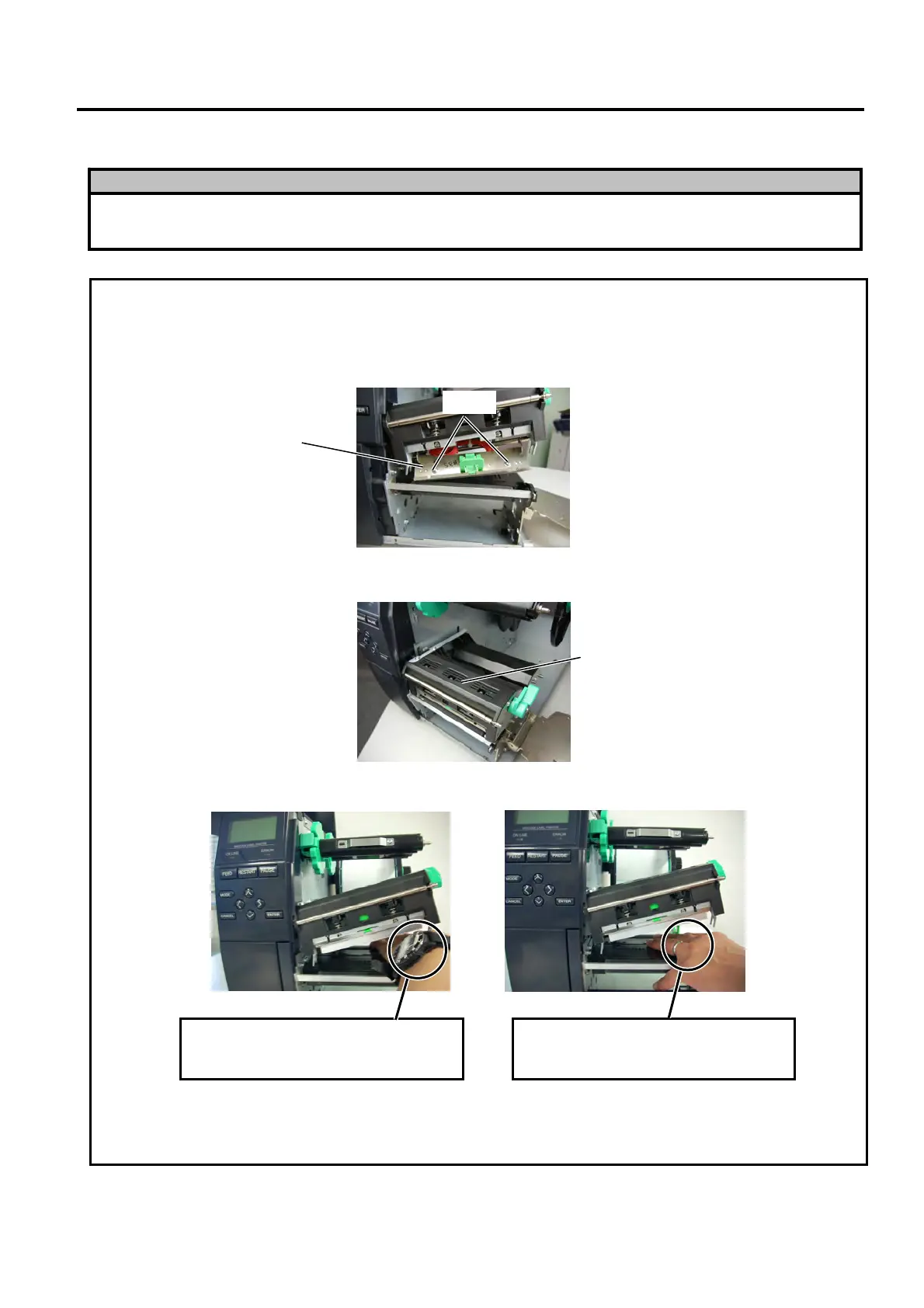

Print Head Bracket
Screw
Head Block Frame
Care must be taken not to allow the
metal or glass part of a watch to touch
the print head edge.
Care must be taken not to allow a
metal object like a ring to touch the
print head edge.
