Toshiba B-EX4 SERIES Service Manual

10. RFID ANALYZE TOOL EO18-33027
10.3 Application Functions
10- 5
(2) Log Save As
Saves text data in the “Results” box of the RFID Analyze Tool screen into a text file.
(3) Text Capture
Saves the test result into a CSV file.

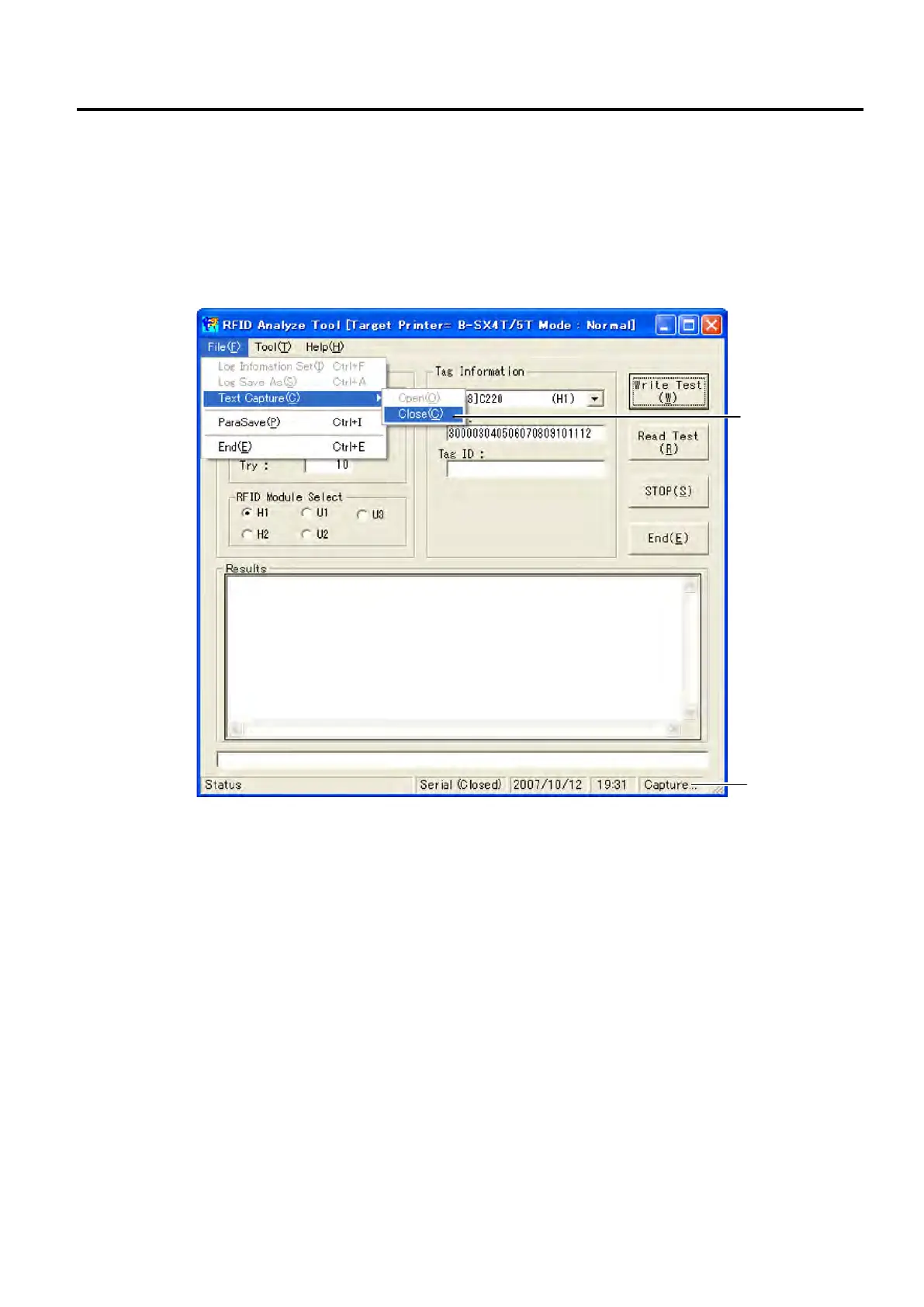

Selecting “Text Capture” then “Open” shows “Capture” in the area indicated by “2)” in the figure
below. When a write/read test is executed with “Capture” shown, the test result is automatically
saved in a CSV file specified.
1) After “Text Capture” is selected, the menu adds “Close” under “Open”. Selecting “Close” exits
from this function.
2) When “Text Capture” is selected, ”Capture” is shown.
(4) ParaSave (Parameter Save)
Saves the current test information to facilitate a next test. The saved parameters are invoked at a
program boot. Information to be saved are feed amount, number of tries, RFID module type, tag
type, communication settings between PC and printer, label size command, Feed command, Sheet
count, printer type, and test mode.
1)
2)
