Toshiba B-EX4 SERIES Service Manual

9. MAJOR UNIT REPLACEMENT EO18-33027
(Revision date: AUG. 2016)
9.11 MEDIA SENSOR ASS’Y
9-28

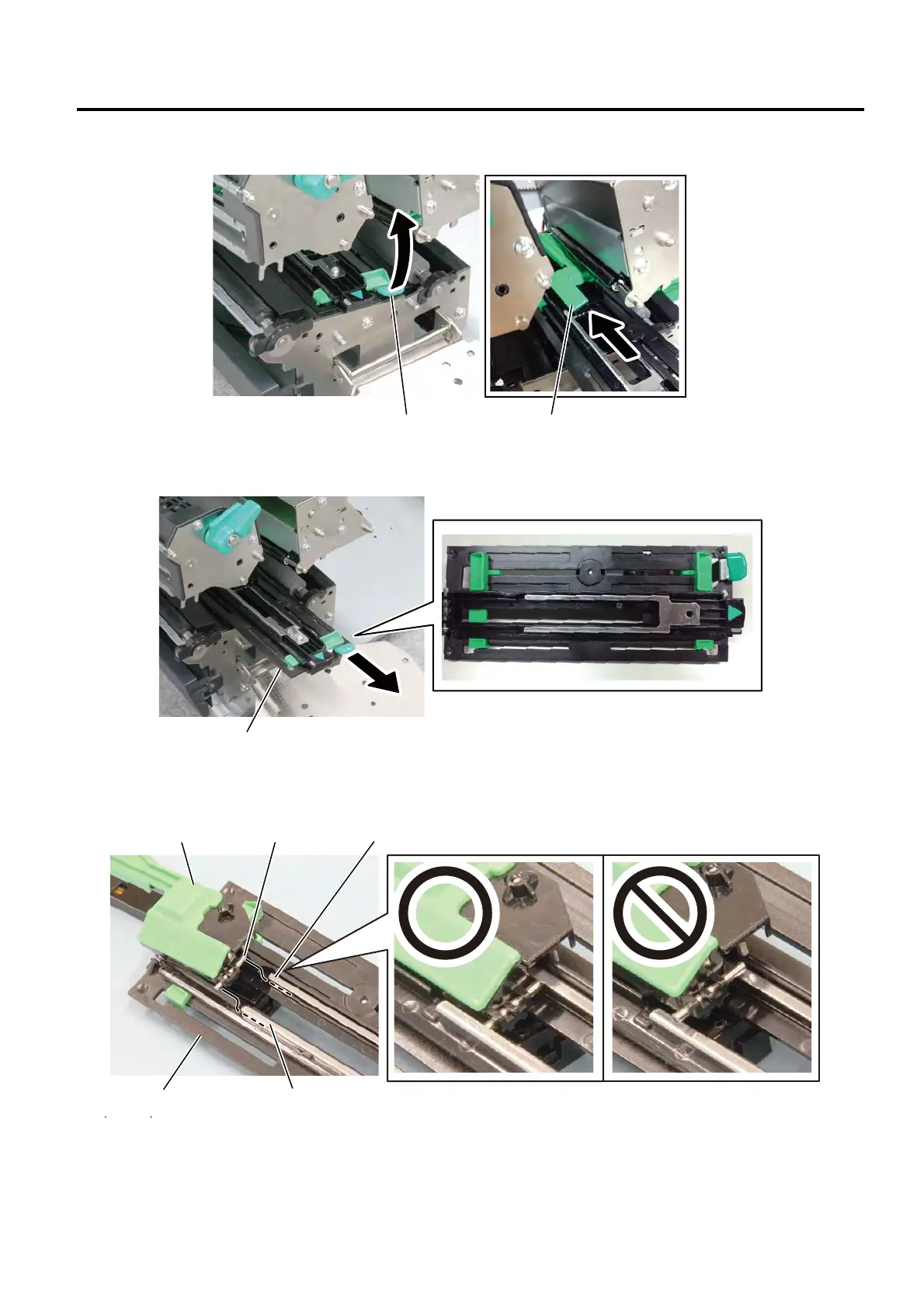

6) While holding the tab, slide the media sensor (upper) to the frame side.
7) Pull out the media sensor (lower).
NOTE: When installing the media sensor (upper) in the media sensor (lower), the shaft must be located under
the guide of the media sensor (lower).
Media Sensor (Upper) Tab
Media Sensor (Lower)
Media Sensor (Upper) Shaft Guide
Guide
Media Sensor
(
)

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
