Toshiba B-EX4 SERIES Service Manual

3. NOTE FOR OPTIONAL EQUIPMENT INSTALLATION/MAJOR UNIT REPLACEMENT EO18-33027
/MAINTENANCE

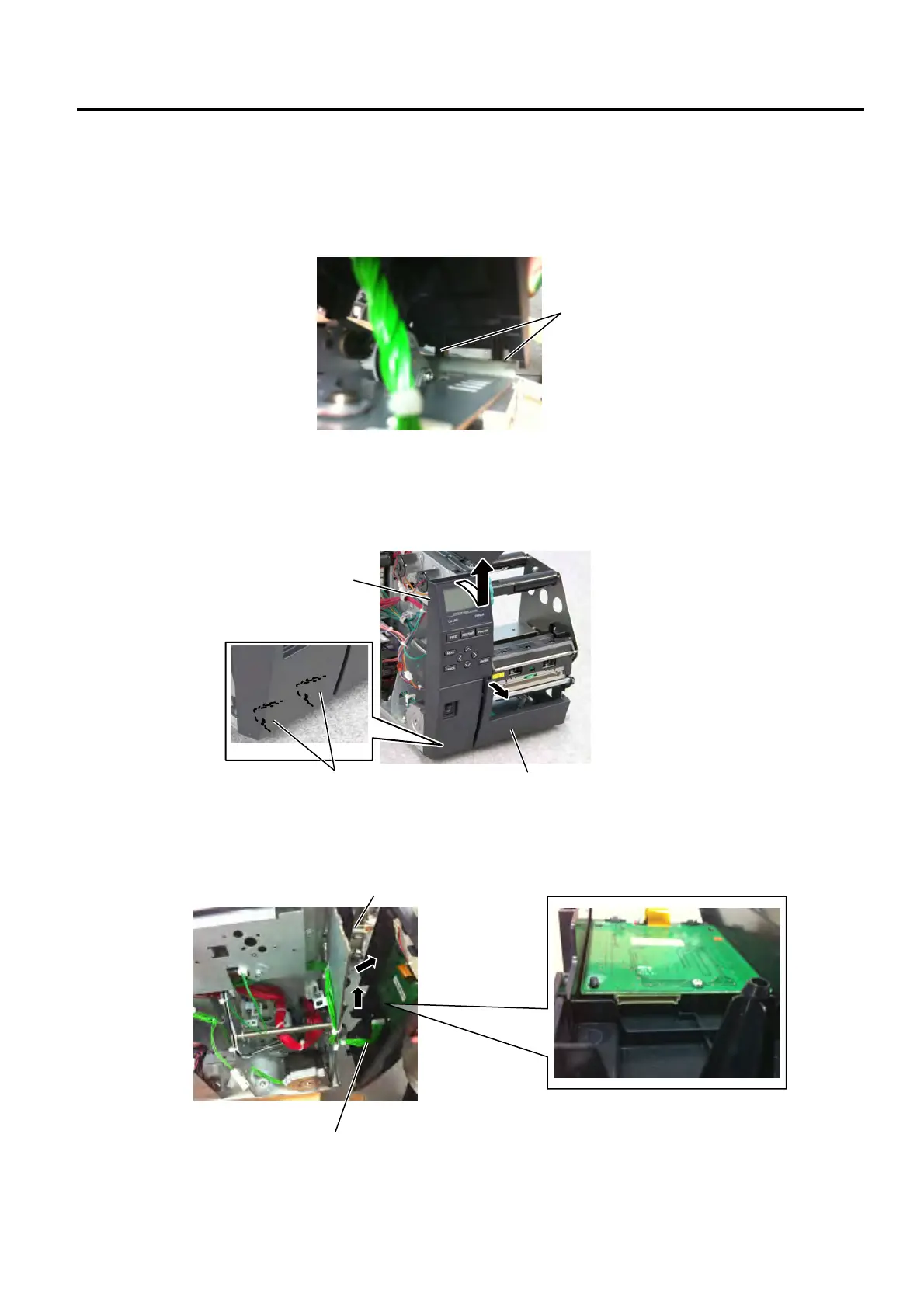

3.4 REMOVING THE OPERATION PANEL
3- 6
5)
[T1/T2 series]
Lift the operation panel ass’y to release the bottom hook, and then remove the operation panel ass’y
by moving it forward.
[T3 series]
Pull the front bottom cover slightly forward.
To release the hooks at the bottom, pull the upper part of the operation panel slightly forward. Then lift
it up to remove it.
6) Disconnect the operation panel harness from the operation panel ass’y.
Operation Panel Ass’y
Operation Panel Harness
Hooks
Front Bottom Cover
Operation Panel
Hooks

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
