9. MAJOR UNIT REPLACEMENT EO18-33027
9.13 RIBBON END SENSOR
9-32
5) Disconnect the ribbon end sensor harness from the ribbon end sensor.
6) Replace the ribbon end sensor with a new one, then reassemble in the reverse order of removal.
NOTE: After replacing the ribbon end sensor, refer to Section 5.7 to adjust the sensor level for the ribbon to be
used

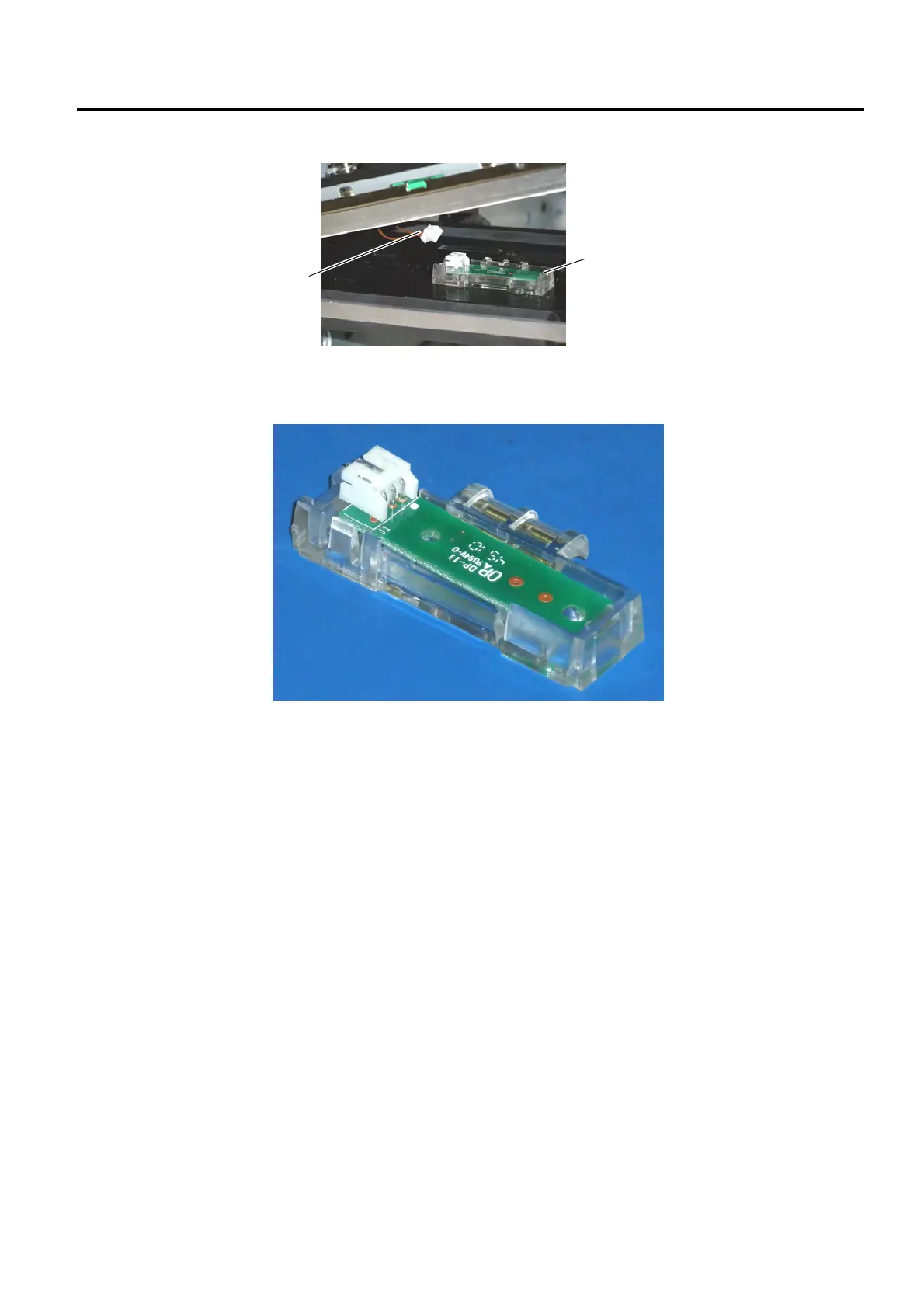

Ribbon End Sensor
Ribbon End Sensor Harness
