Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
(Revised on OCT. 2013)
4.1 DISC CUTTER (B-EX204-QM-R)
4- 2 -1

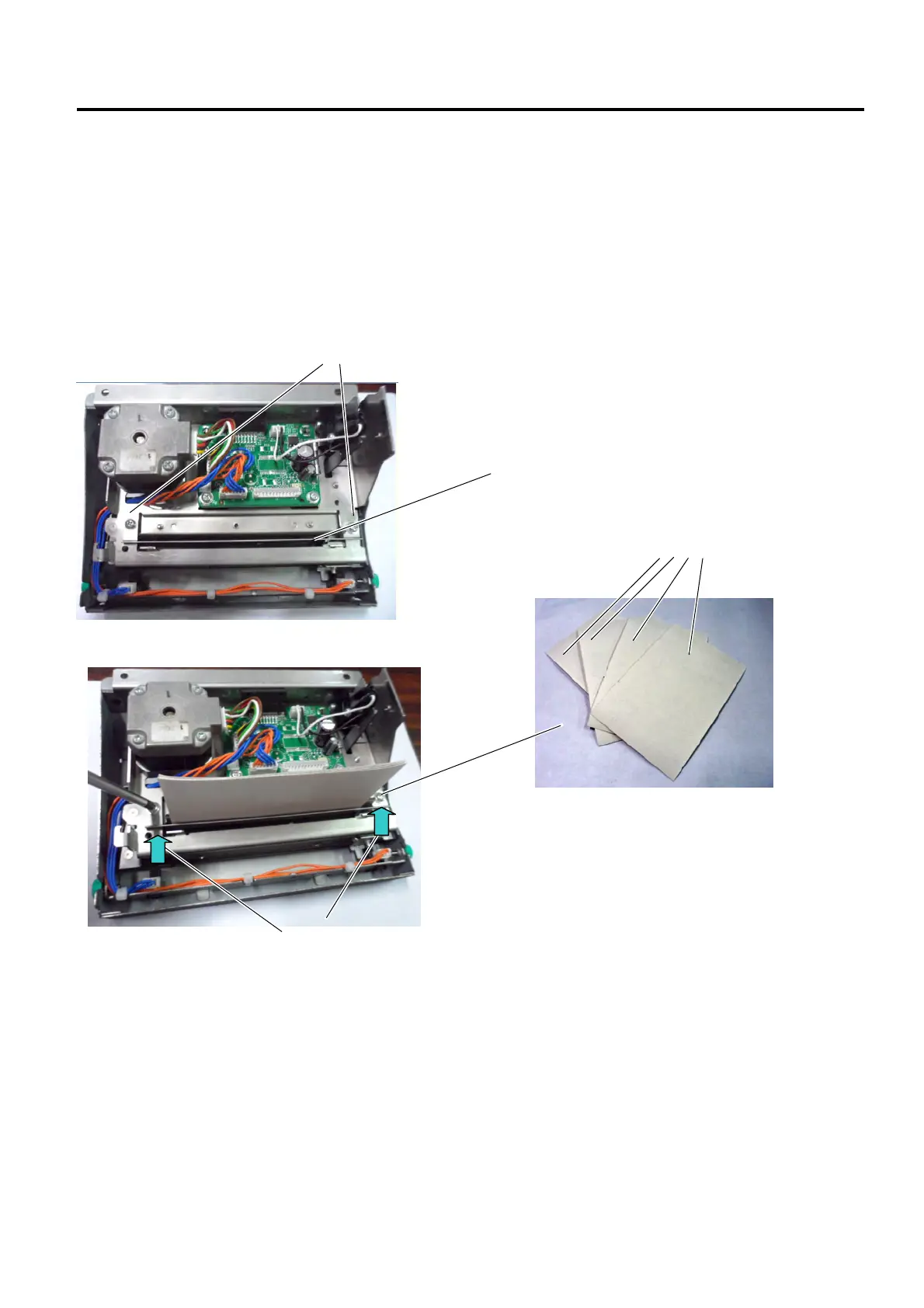

Adjustment Method for Paper Guide
Before installing the disc cutter unit for T2/T3 printer, exchanging of Paper Guide and adjustment has to be
made to set the clearance of the cutter.
1. Loosen the two FL-3 x 6 screws holding the metal guide.
2. A Paper Guide is exchanged for Paper guide of T2/T3 printer.
3. Prepare four sheets of Tag paper and insert them between the guides.
4. Press both sides of the Paper Guide against the four sheets of tag paper.
5. Tightened the SAME FL-3 x 6 screws after proper checking and adjustment is confirmed.
6. Perform a test cut to check for a proper operation. Repeat the procedure, if necessary.
FL-3 x 6 screws
Tag Paper
One sheet of Tag Paper = 0.15 mm
Four sheets of Tag Paper = 0.6 mm
Paper Guide (Metal)
FL-3 x 6 screws

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
