Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
(Revised on OCT. 2013)
4.1 DISC CUTTER (B-EX204-QM-R)
4- 7

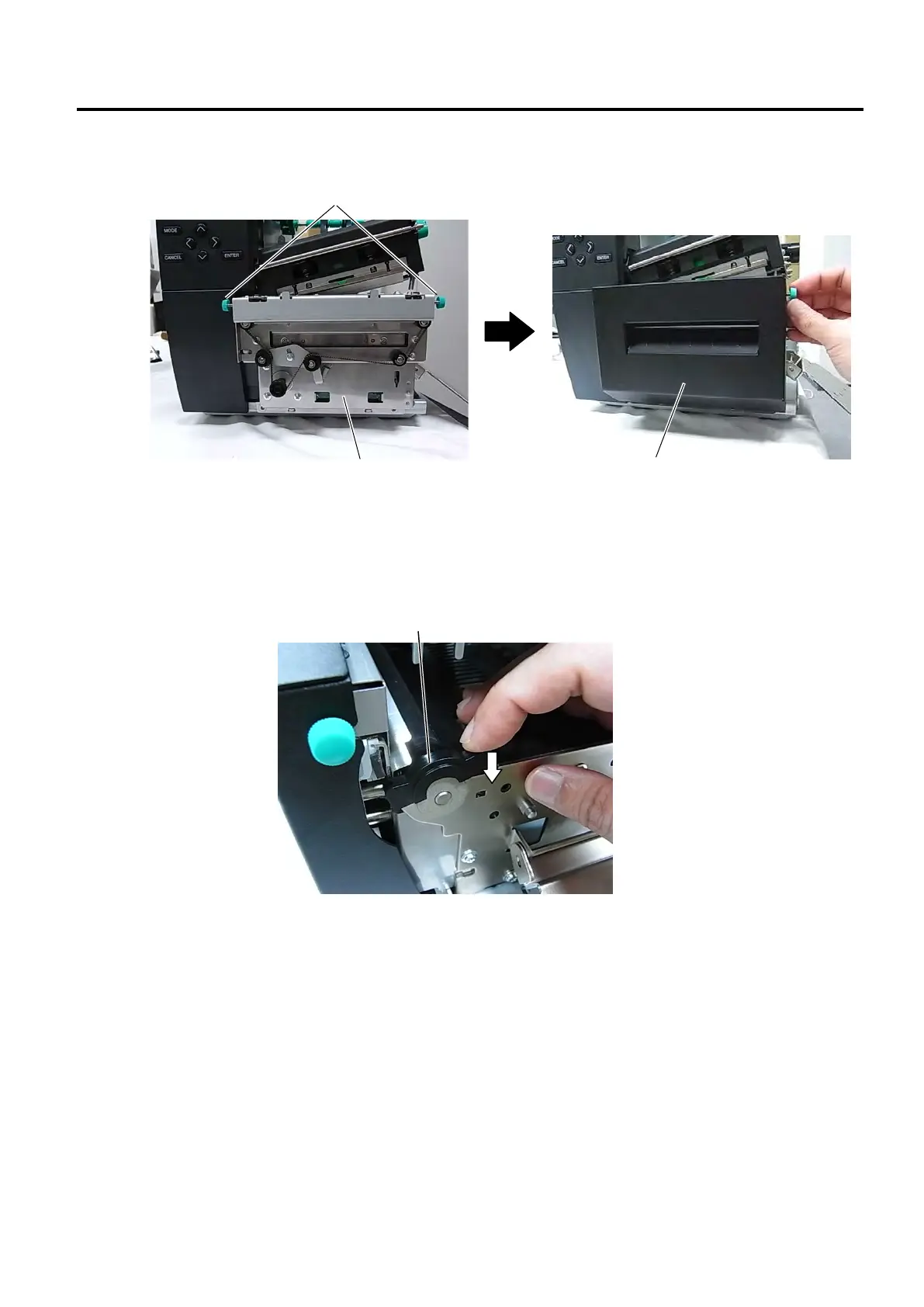

12. Attach the Cutter Cover to the Cutter Unit with the Plastic Head Screws.
13. Restore the Platen Holder Cover.
NOTE: The strip plate is not used. Keep it safe for future use.
14. Close the Print Head Block and Ribbon Shaft Holder Plate.
NOTE: DO NOT excessively push down the print head block to close it. Doing so may cause a failure of the
print head block or damage to the print head.
Plastic Head Screw
Cutter Cover
Cutter Unit
Platen Holder Cover

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
