Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
(Revised on OCT. 2013)
4.1 DISC CUTTER (B-EX204-QM-R)
4- 6

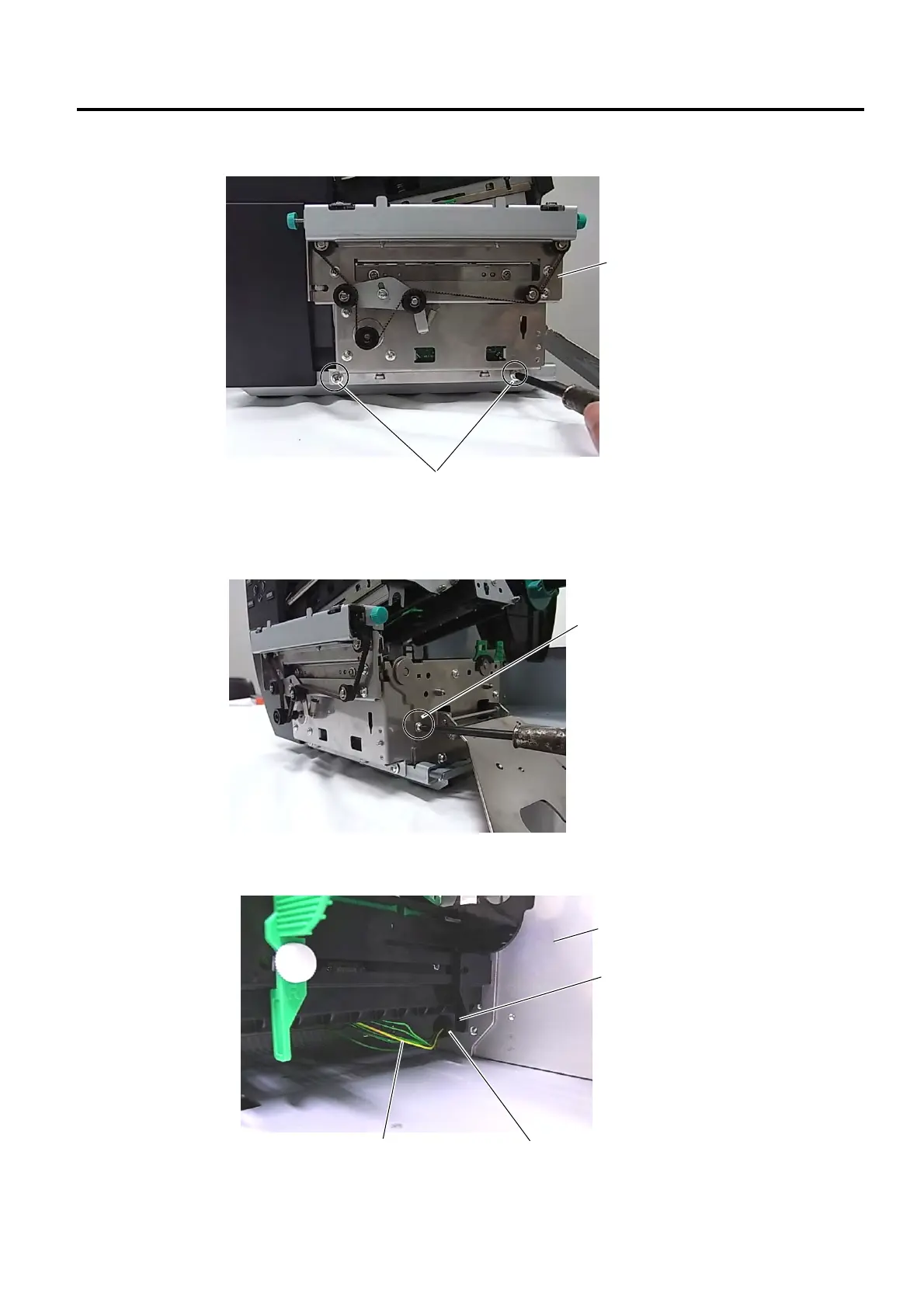

9. Secure the bottom of the Cutter Unit with the two M-4x6 screws.
10. Secure the side of the Cutter Unit with the FL-3x6 screw.
11. Insert the connector of the Harness Ass’y into the hole in the Main Frame, then fit the Cord Bush into
the hole.
NOTE: Make sure the wires will not touch or obstruct any moving parts.
M-4x6 Screw
Cutter Unit
FL-3x6 Screw
Hole
Main Frame
Harness Ass’y
Cord Bush
