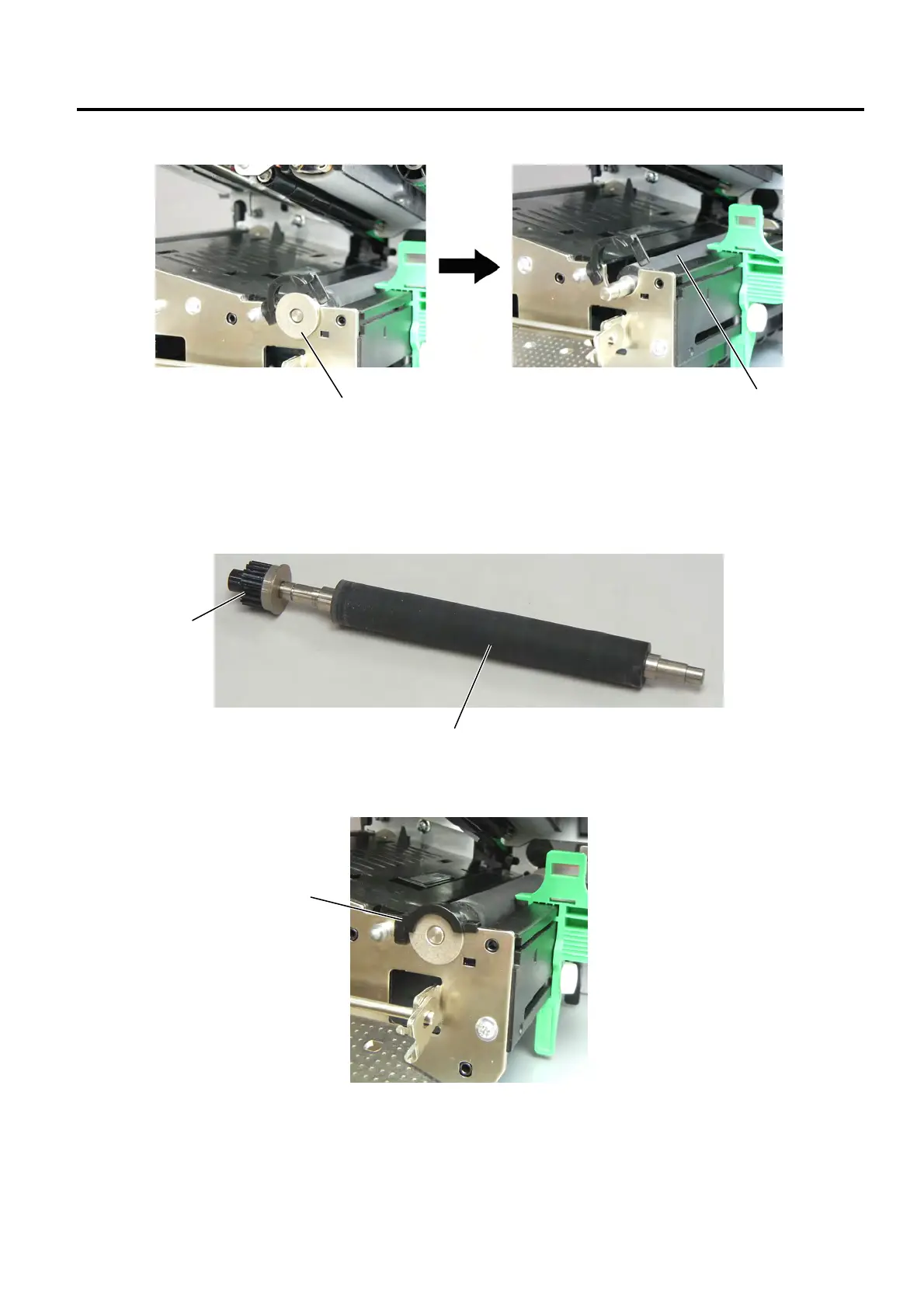

9. MAJOR UNIT REPLACEMENT EO18-33027
9.9 PINCH ROLLER LOWER ASS’Y
9-21
5) Detach the pinch roller holder and the pinch roller lower ass’y.
6) Replace the pinch roller lower ass’y with a new one, then reassemble in the reverse order of
removal.
NOTES:
1. Apply FLOIL to the pinch roller gear before installing the pinch roller lower ass’y.
2. When reassembling, make sure that the pinch roller lower ass’y is attached correctly. Also, make sure
that the pinch roller holder cover is fixed with the hook.
Pinch Roller Holder
Pinch Roller Lower Ass’y
Pinch Roller Holder Cover
Pinch Roller Gear
Pinch Roller Lower Ass’y
