9. MAJOR UNIT REPLACEMENT EO18-33027
(Revised on AUG. 2016)
9.10 PINCH ROLLER UPPER ASS’Y
9-25

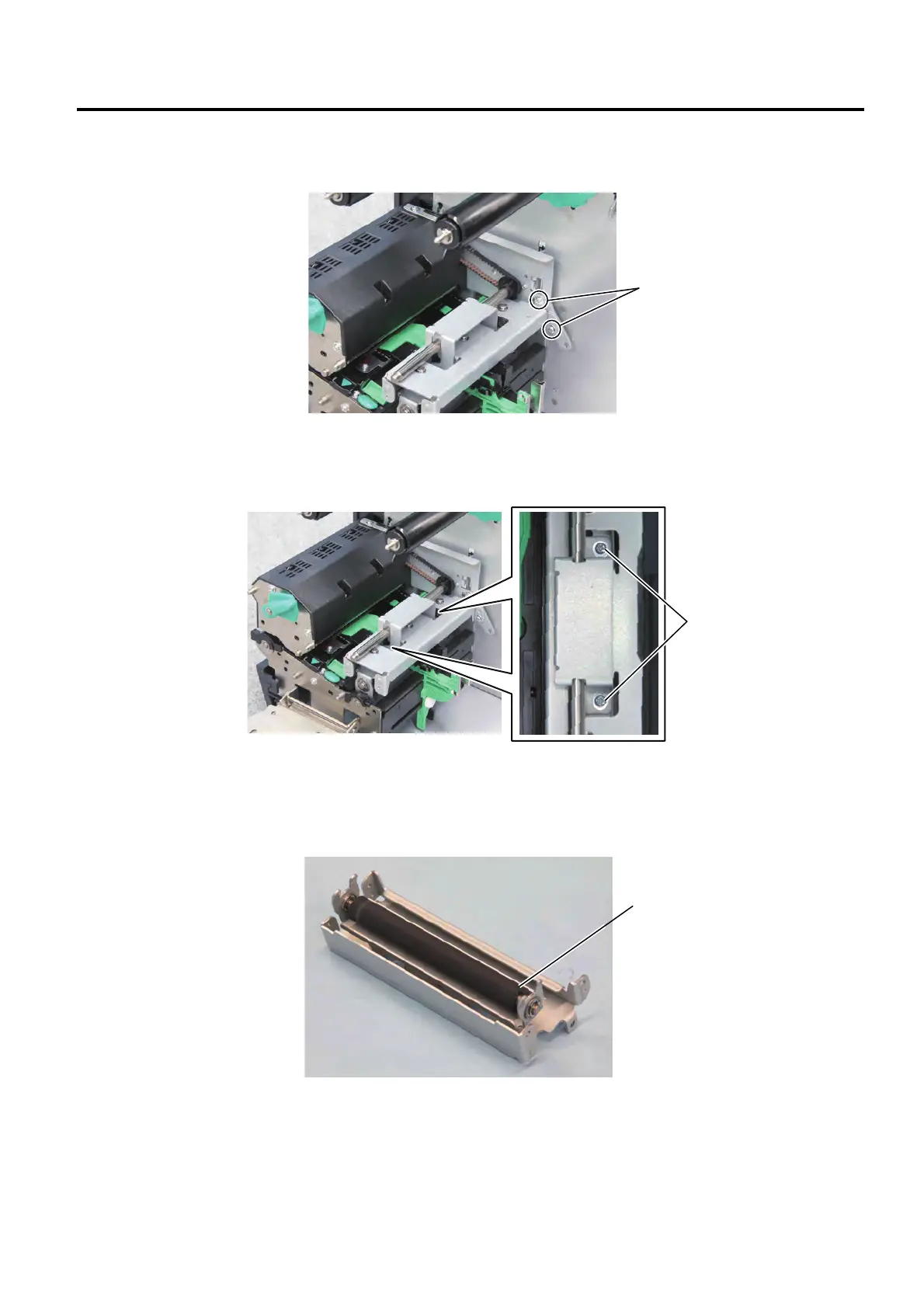

5) Close the print head block and remove the two SMW-4x8 screws.
6) Remove the two SMW-4x8 to detach the pinch roller upper ass’y.
7) Replace the pinch roller upper ass’y with a new one, then reassemble in the reverse order of
removal.
SMW-4x8 Screw
SMW-4x8 Screw
Pinch Roller Upper Ass’y
To Next Page
