Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.2 ROTARY CUTTER (B-EX204-R-QM-R)
4-14

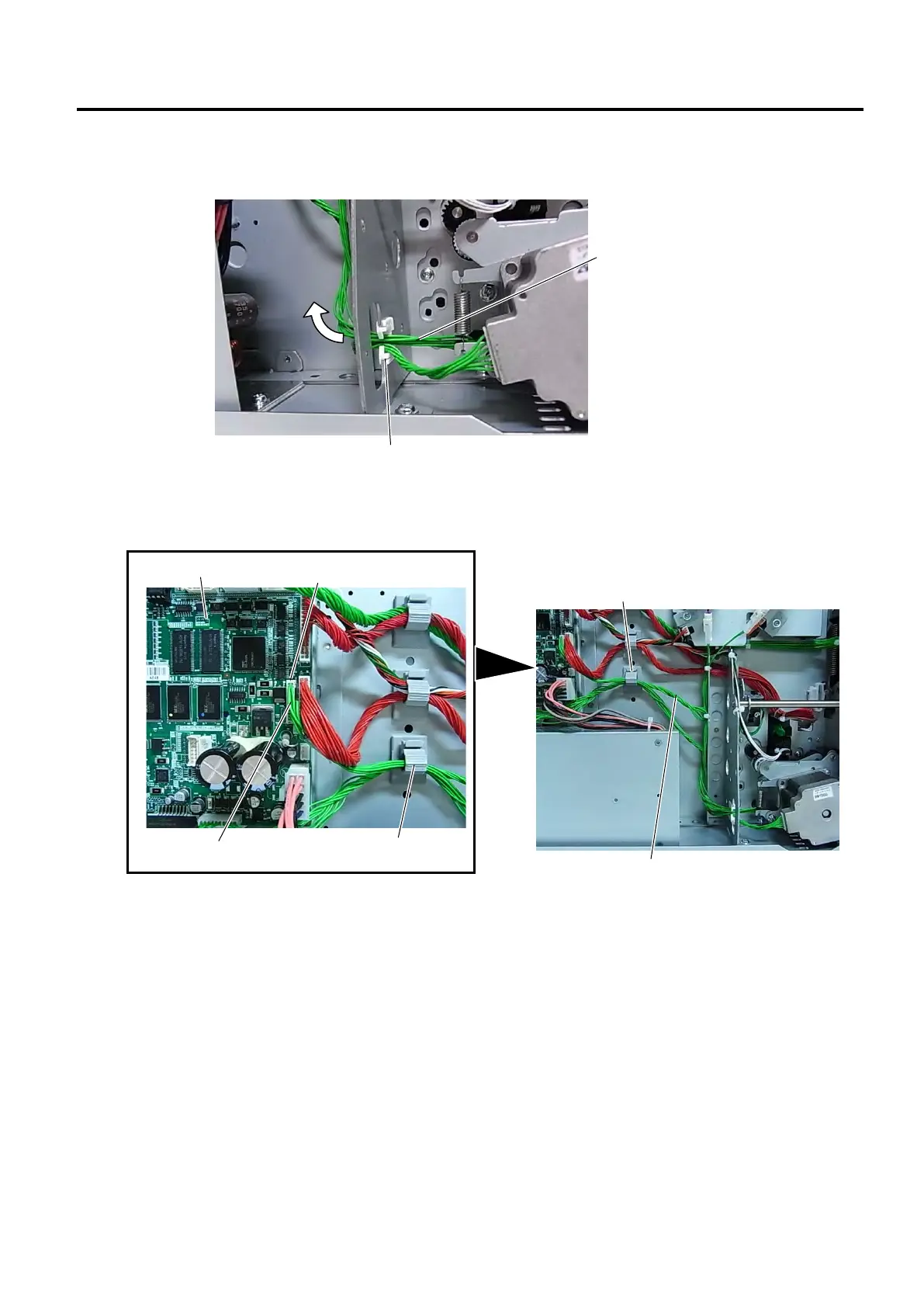

4.2.4 Wiring of the Harness Ass’y
1. Pass the Harness Ass’y through the Cable Protector.
2. Fasten the Harness Ass’y with the Cable Clamp.
3. Connect the Harness Ass’y to J11 on the Main PC board.
4. Close the Print Head Block and Ribbon Shaft Holder Plate.
NOTE: DO NOT excessively push down the print head block to close it. Doing so may cause a failure of
the print head block or damage to the print head.
5. Re-install the Side Panel (L) and close the Top Cover
6. Refer to the Service Manual for the parameter settings and check the cutter operation.
Main PC Board
J11
Harness Ass’y
Cable Clamp
Harness Ass’y
Cable Protector
Harness Ass’y
Cable Clamp

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
