Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
(Revision Date: Sept. 5, 2015)
4.2 ROTARY CUTTER (B-EX204-R-QM-R)
4-14-1
4.2.5 Cut Angle Adjustment
1. Loosen the two SM-4 x 8B screws.
2. Move the guide plate back or forth so that the cutter is perpendicular to the media. Tighten the
same SM-4 x 8B screws.

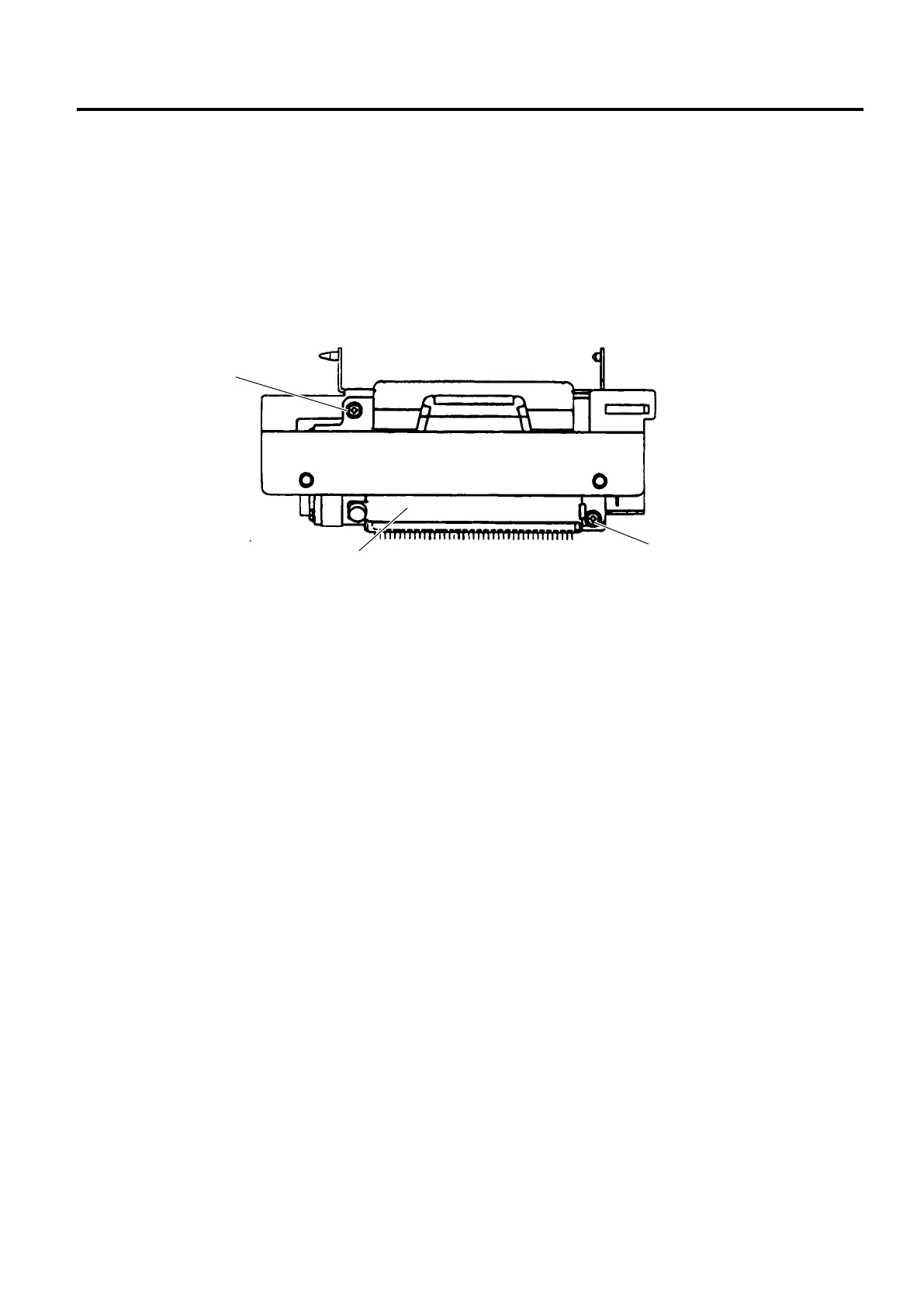

<As viewed from the top of the cutter unit>
3. Perform a test cut to check for a proper operation. Repeat the procedure, if necessary.
SM-4x8B Screw
Guide Plate
SM-4x8B Screw

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
