Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.3 PEEL-OFF MODULE (B-EX904-H-QM-R)
4-24

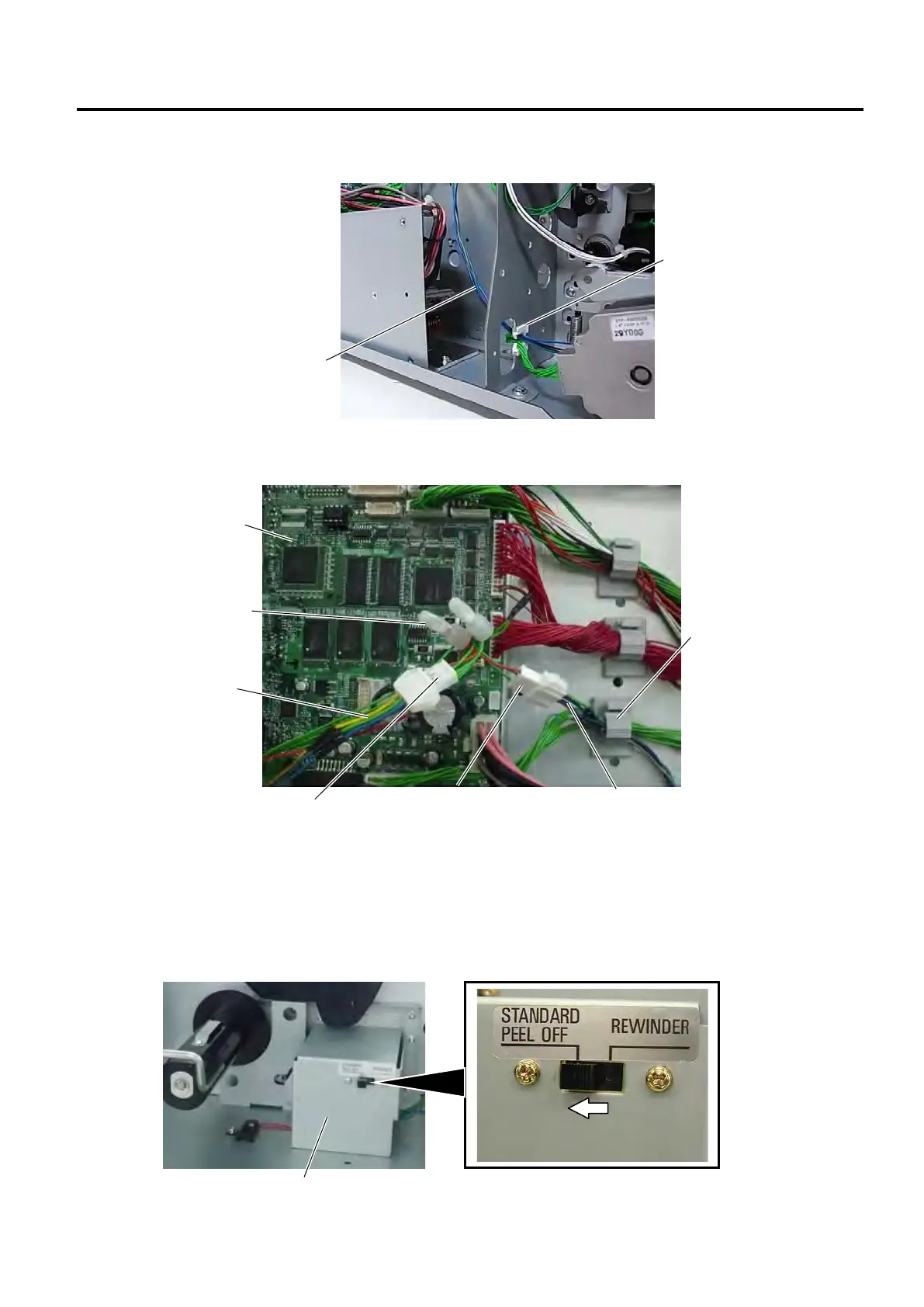

9. Pull out the Strip Sensor Harness from the opposite side, and pass it through the Cable Protector.
10. Fasten the Strip Sensor Harness with the Cable Clamp.
11 Connect the Strip Sensor Harness and Rewind Full Sensor Harness to the Rewinder Harness.
12. Close the Print Head Block and Ribbon Shaft Holder Plate.
NOTE: DO NOT excessively push down the print head block to close it. Doing so may cause a failure of
the print head block or damage to the print head.
13. Re-install the Side Panel (L).
14. Set the selection switch mounted on the Rewinder Ass’y to STANDARD/PEEL OFF position.
Cable Clamp
Rewinder
Harness
Main PC Board
Strip Sensor Harness
4-pin Connector of the
Rewinder Harness
Strip Sensor Harness
Cable Protector
Rewinder Ass’y
3-pin Connector of the
Rewinder Harness
Rewind Full
Sensor Harness

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
