4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.4 RIBBON SAVING MODULE (B-EX904-R-QM-R)
4-31

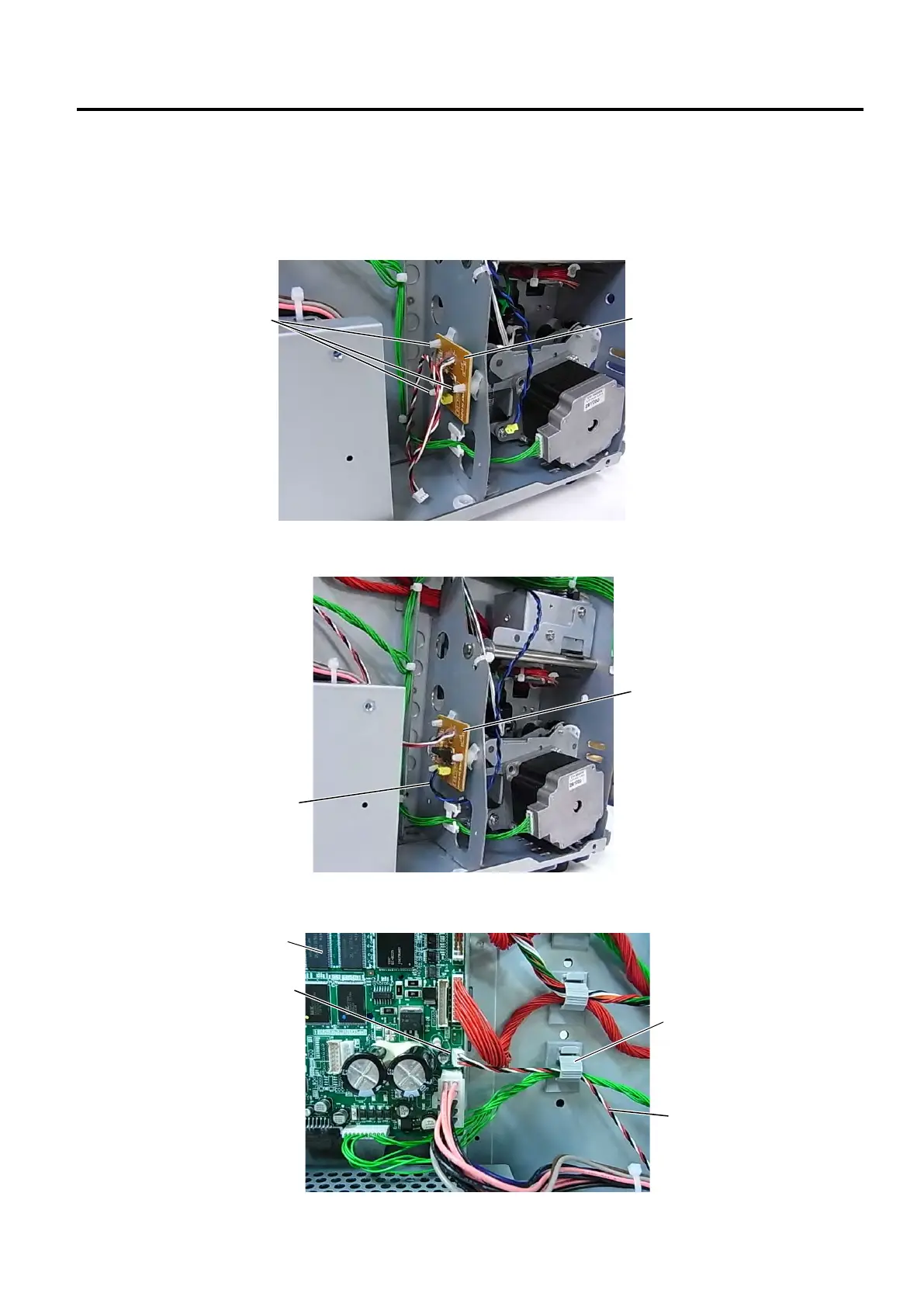

4.4.3 Installing the Driver PC Board
1. Attach the Driver PC Board to the following position with the three locking supports.
NOTE: Do not push the center of the Driver PC Board when attaching it to the printer. Doing so may break
the PC board. Hold the locking supports and push them into the Driver PC Board.
2. Connect the Solenoid Harness to the yellow connector on the Driver PC Board.
3. Fasten the Interface Cable with the Cable Clamp, and connect it to J12 on the Main PC Board.
Driver PC Board
Locking Support
Driver PC Board
Solenoid Harness
Interface Cable
J12
Main PC Board
Cable Clamp
