Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.6 EXPANSION I/O INTERFACE BOARD (B-EX700-IO-QM-R)
4-38
6. Connect the Interface Cable to J3 on the Main PC Board.
7. Re-install the Side Panel (L).
8. Refer to Section 5.4.2.13 in the Maintenance Manual for selecting the operating mode.
9. Perform a loop back test to confirm the expansion I/O board functions properly.

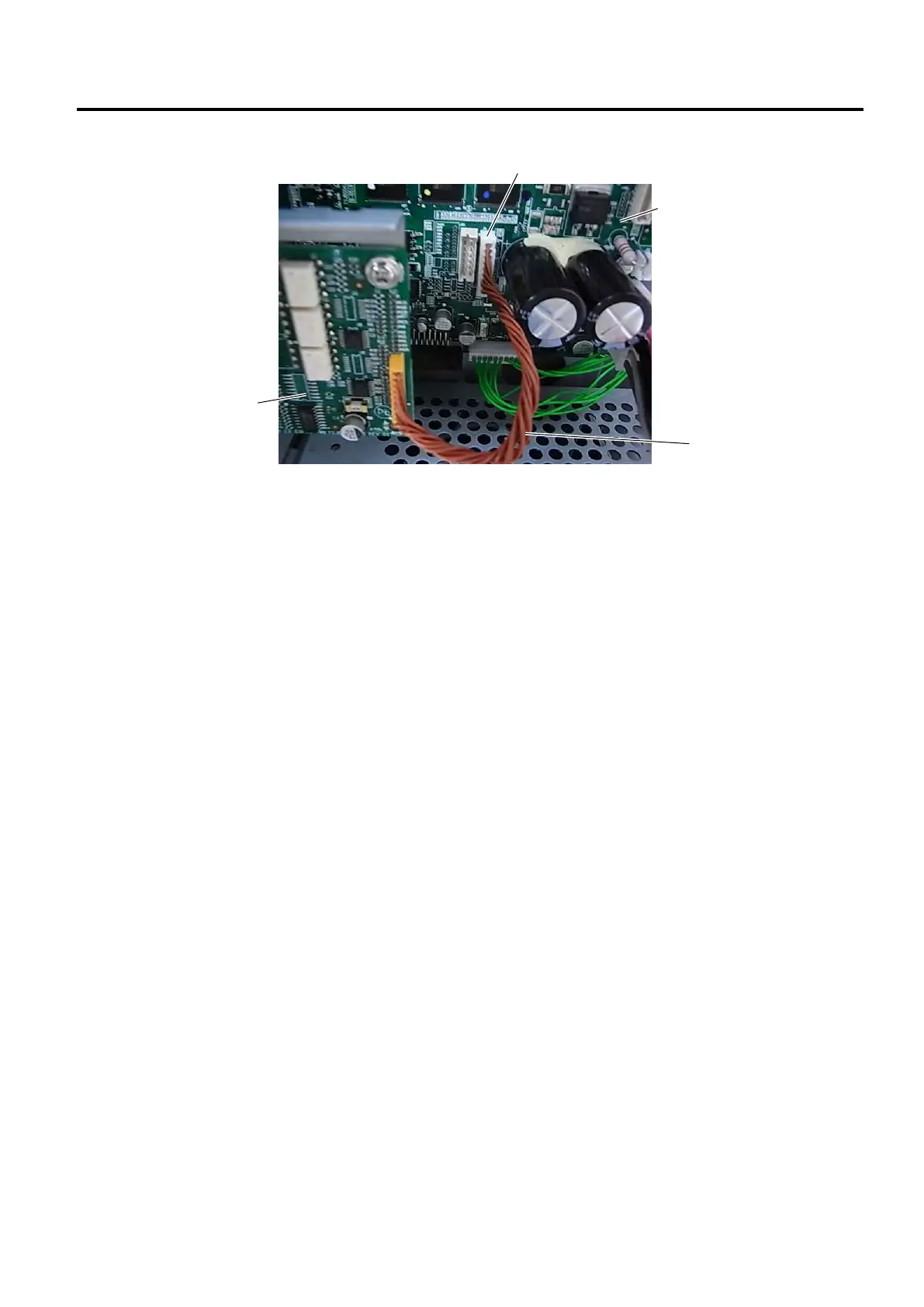

J3
Main PC Board
Interface Cable
Expansion I/O Board

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
