Toshiba B-EX4 SERIES Service Manual

4. INSTALLATION PROCEDURE FOR OPTIONAL EQUIPMENT EO18-33027
4.7 Wireless L AN BOARD (B-EX700-WLAN-QM-R)
4-42
8. Connect the Interface Cable to J6 on the Main PC board.
9. Re-install the Side Panel (L).
10. Attach the FCC ID Sticker to any available space of the printer back.
11. Refer to the Owner’s Manual for the interface parameter settings.
(System Mode →<7>INTERFACE → NETWORK)

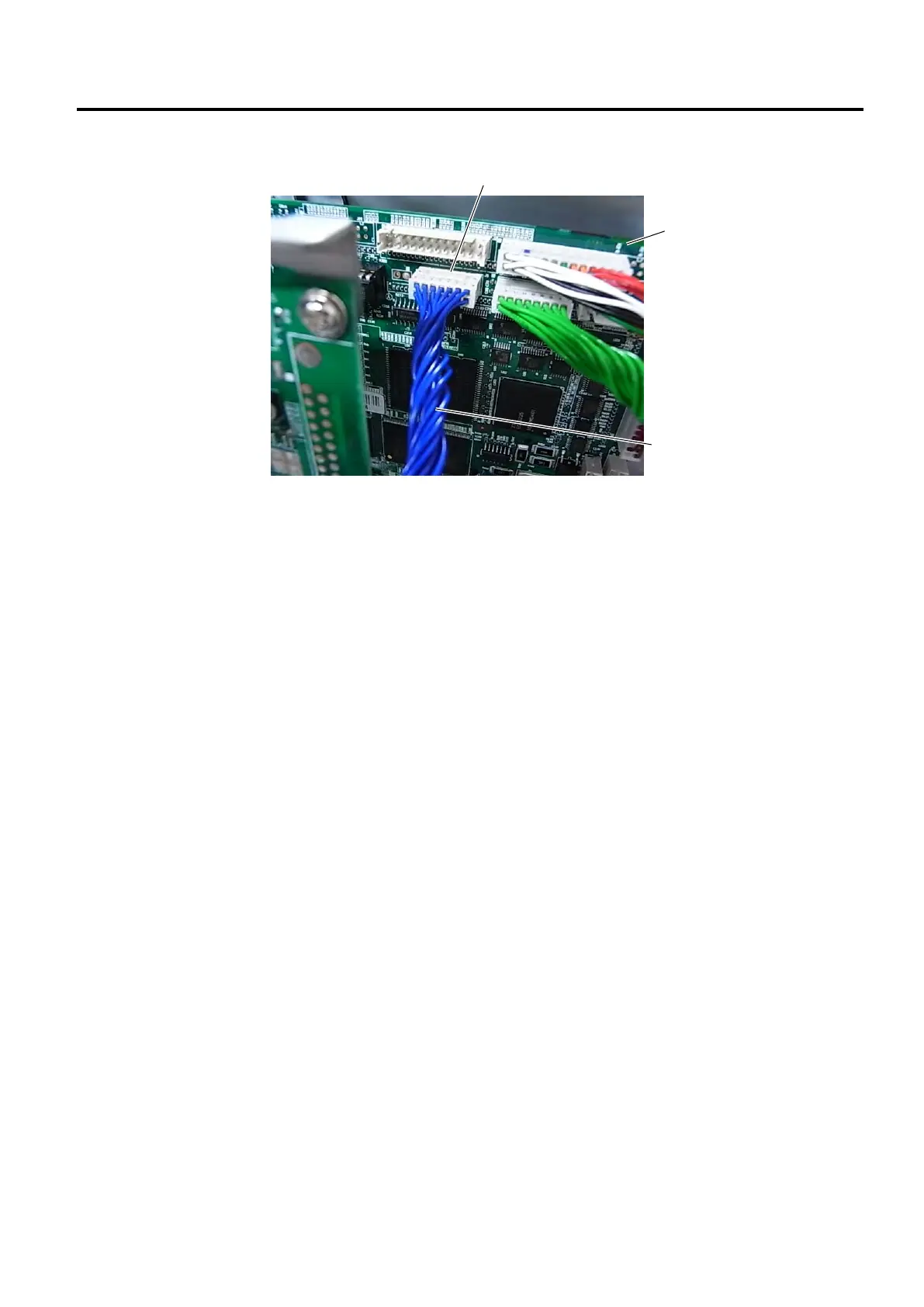

J6
Main PC Board
Interface Cable

Toshiba B-EX4 SERIES Specifications

General

Print Technology	Thermal Transfer / Direct Thermal
Power Supply	AC 100-240V, 50/60 Hz
Print Resolution	203 dpi
Max Print Width	104 mm
Connectivity	USB, Serial, Ethernet
Media Sensor	Transmissive, Reflective
Media Type	Roll, Fanfold, Tag, Ticket
Media Width	25.4 mm
Ribbon Width	110 mm
Ribbon Length	Up to 600 m
Media Thickness	0.06 – 0.19 mm
