6.5.4.2 Timing – diagram
Blue area: Output signals F Host-> measuring system
Orange area: Input signals measuring system-> F Host

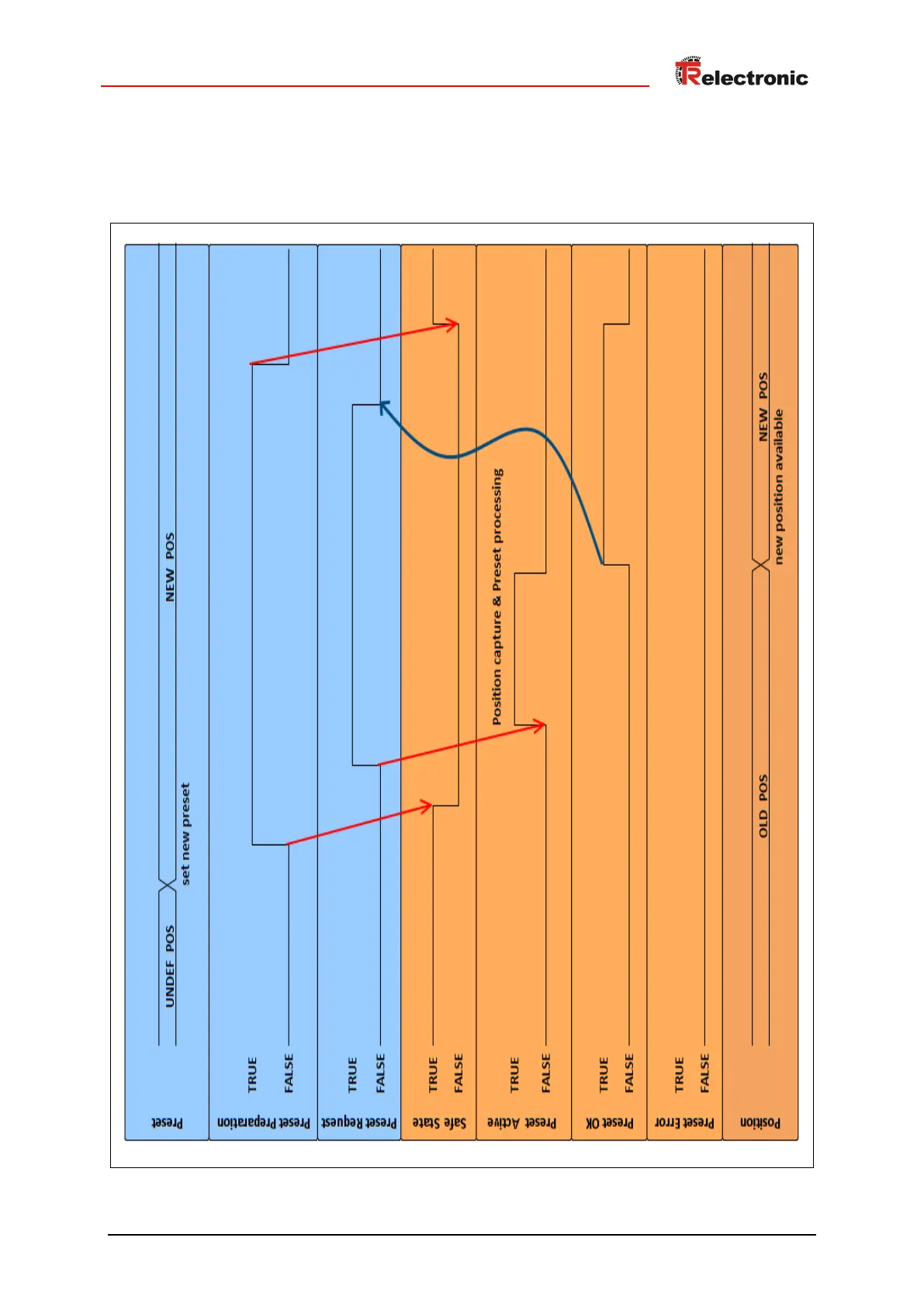

Figure 15: Preset Timing Diagram
