3.5.1 Signal characteristics

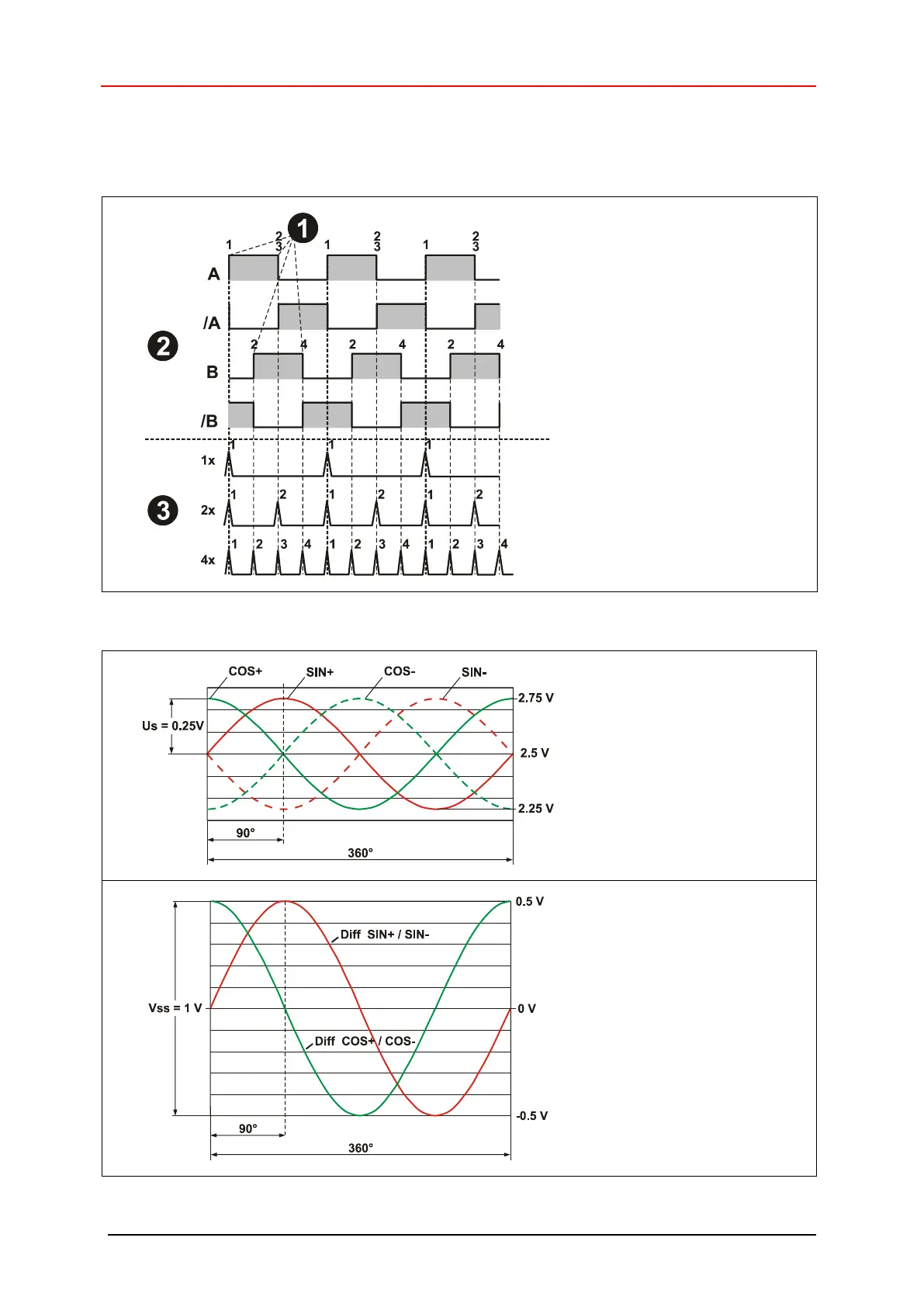

1: Edge evaluation
2: Measuring system with
1024 pulses/revol.
3: Counter evaluation
1x: 1024 counter pulses/rev.
2x: 2048 counter pulses/rev.
4x: 4096 counter pulses/rev.
Figure 1: Counter evaluation, incremental interface
Measurement of signals
tending to 0 V
Figure 2: Level definition, SIN/COS interface
