Appendix A Setting DIP Switch Addresses
220 BMTW-SVN01F-EN

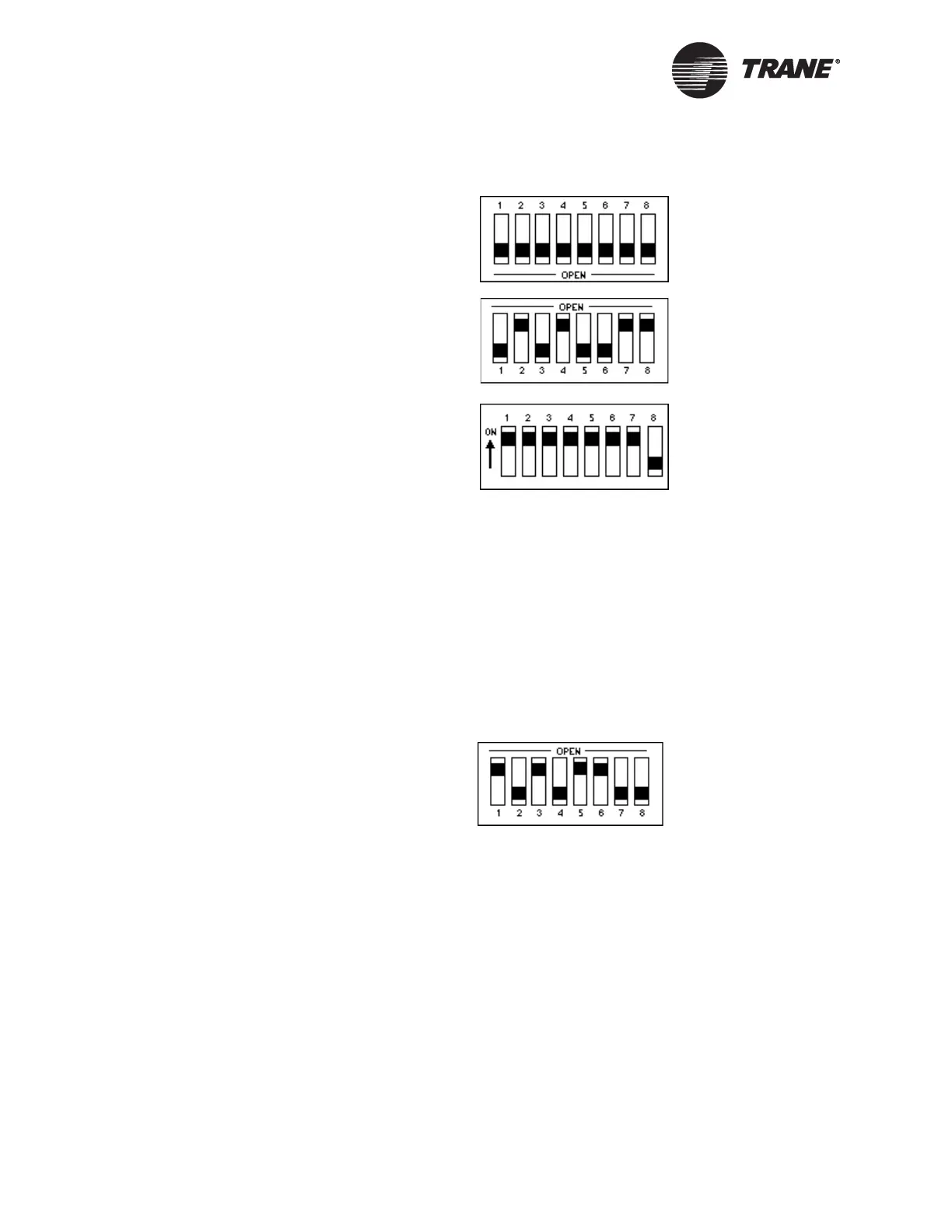

Figure 95. Various Types of DIP Switch Packages
Using Table 38, you can calculate any address by knowing each position
value and whether on or off is the active state.
For example, use Table 38 to determine the address of a variable air vol-
ume (VAV) UCM version 3.2 controller with the DIP switch set as shown
in Figure 96 on page 220.
Figure 96. Calculating DIP Switch Settings
VAV/UCM DIP Switch Package
ddress = 1st value + 2nd value +3rd value + 4th value + 5th value + 6th value + 7th
value + 8th value + base value
= 1 + 0 + 4 + 0 + 16 + 32 + 0 + 0 + 64
= 1 + 4 + 16 + 32 + 64
= 53 + 64
=117
