iSTAR eX Connections
4–18 iSTAR eX Installation and Configuration Guide
Wiring RM and Wyreless Readers, I/8s and R/8s to PMB

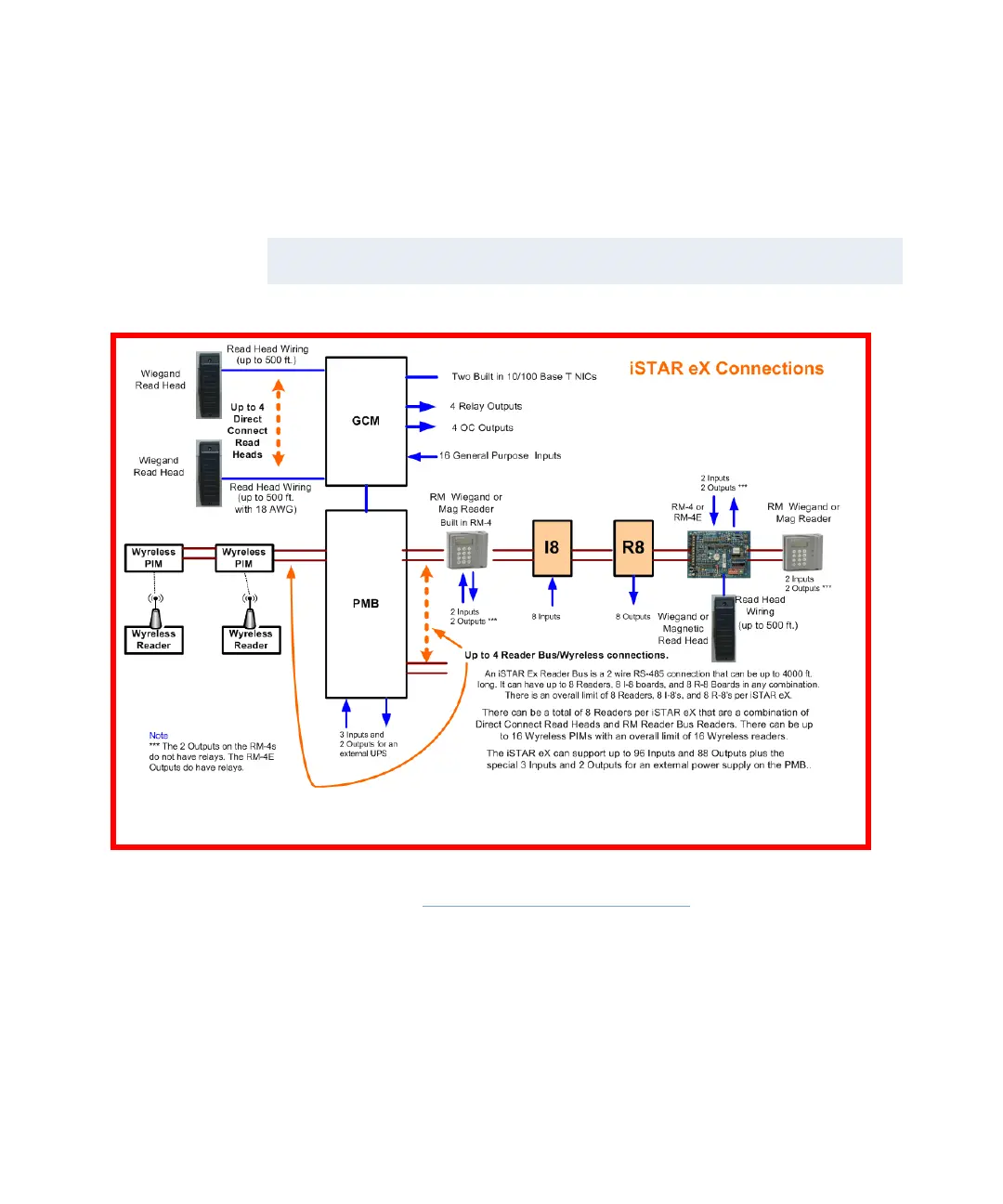

Figure 4.11 shows how to wire RM and Wyreless readers, I/8s, and R/8s to
the Power Management Board.
Figure 4.11: Readers, Inputs, and Output Connections
The four physical reader bus ports on the PMB connect RM readers and/or
Wyreless PIMs. There are two internal ports that are supported by the
software - COM1 and COM2.
Read1 and Read2 are connected to COM1; Read3 and Read4 are connected to
COM2.
NOTE
Figure 4.11 shows optional configurations not evaluated by UL.
