iSTAR eX - Support for iSTAR eX 8 Reader Option
iSTAR eX Installation and Configuration Guide 4–47
iSTAR Web Page Diagnostic Utility
The iSTAR Web Page Diagnostic Utility uses Internet Explorer to view status
and diagnostics information, including the status of the USB Security Key -
Installed or Removed.
1. Refer to “Connecting to the iSTAR Web Page Diagnostic Utility” on
page 5-35 to start the Web Page Diagnostic utility from ICU.
2. Open the ICU window and display the iSTAR eX 8 reader controller.
3. Right-click the 8 Reader iStar eX controller in the ICU window, then select
Controller Status.
4. The Controller Status page shows the USB Security Key and whether the
key is Added or Removed, as shown in Figure 4.40.

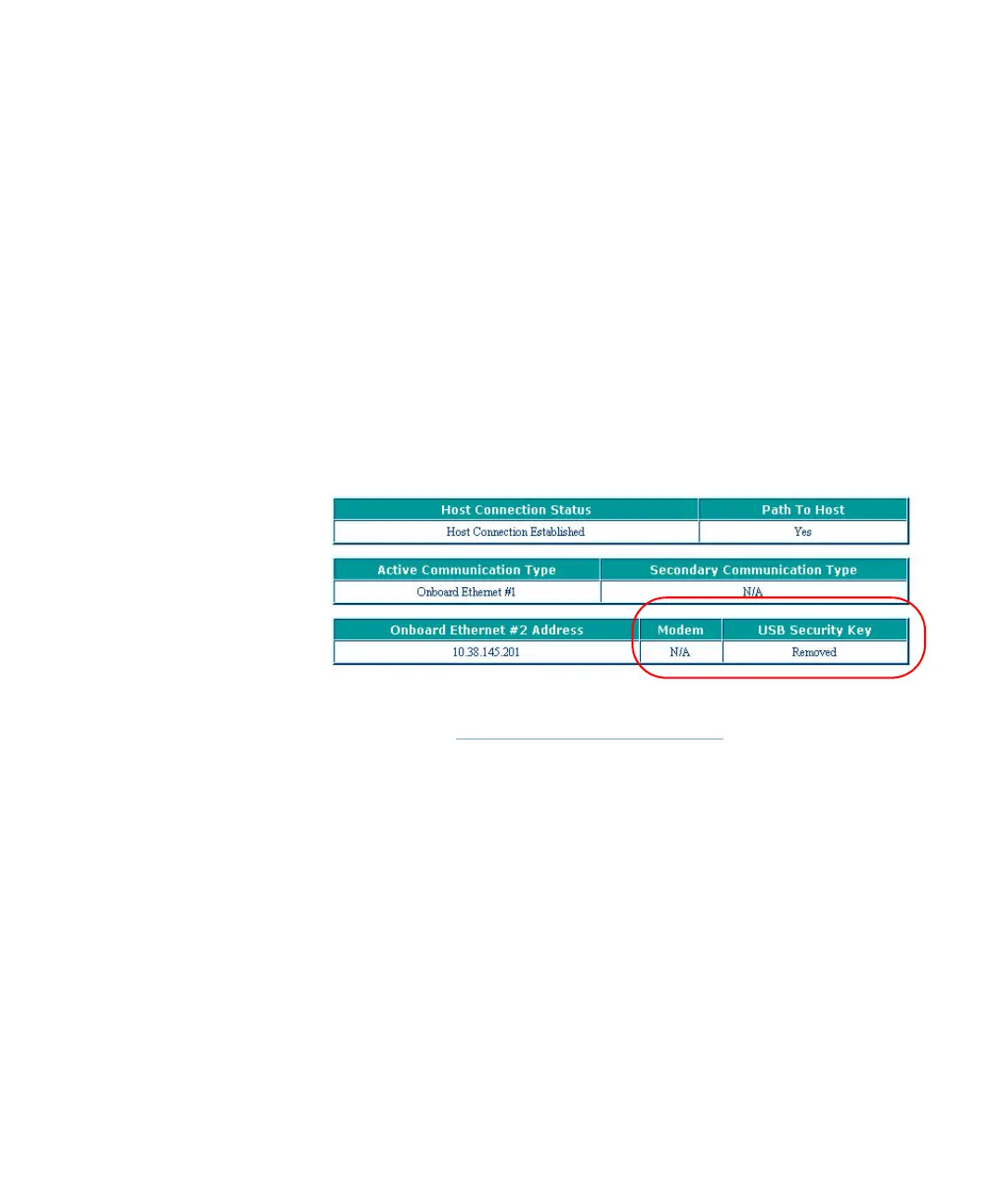

Figure 4.41: Diagnostic Web Page USB Security Key Status - Installed or Removed
