Tyco iSTAR eX User Manual

LED Connections
4–32 iSTAR eX Installation and Configuration Guide
3 Wire (Red, Green, Yellow)
When JP2 and JP3 are jumpered, it specifies Three wire LED control. In this
case, the Red, Green, and Yellow LED drives are wired to the associated LED
of the same color as shown in Figure 4.27.

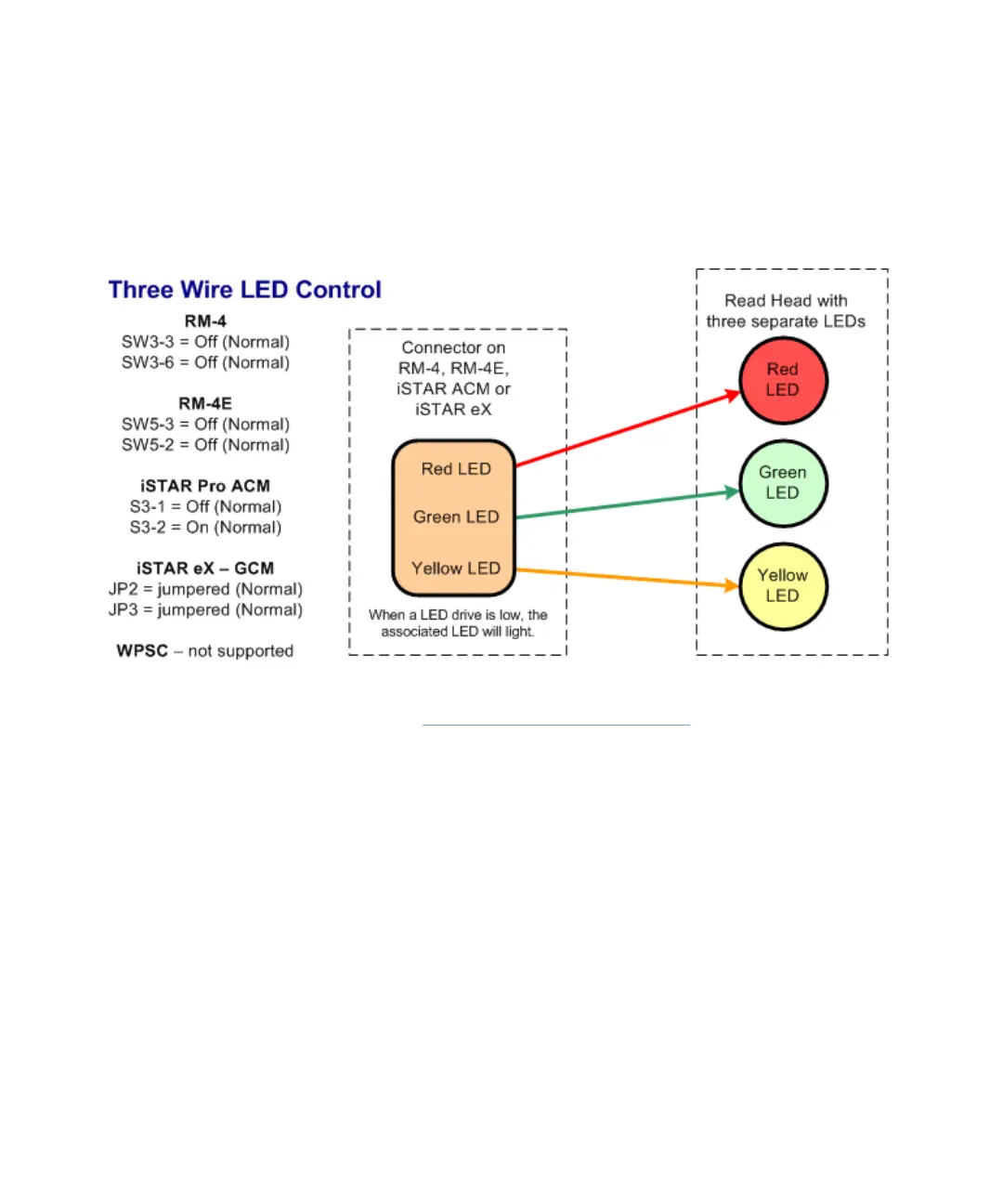

Figure 4.27: Three wire LED control

Tyco iSTAR eX Specifications

General

Brand	Tyco
Model	iSTAR eX
Category	Controller
Language	English
