iSTAR eX - Support for iSTAR eX 8 Reader Option
iSTAR eX Installation and Configuration Guide 4–37

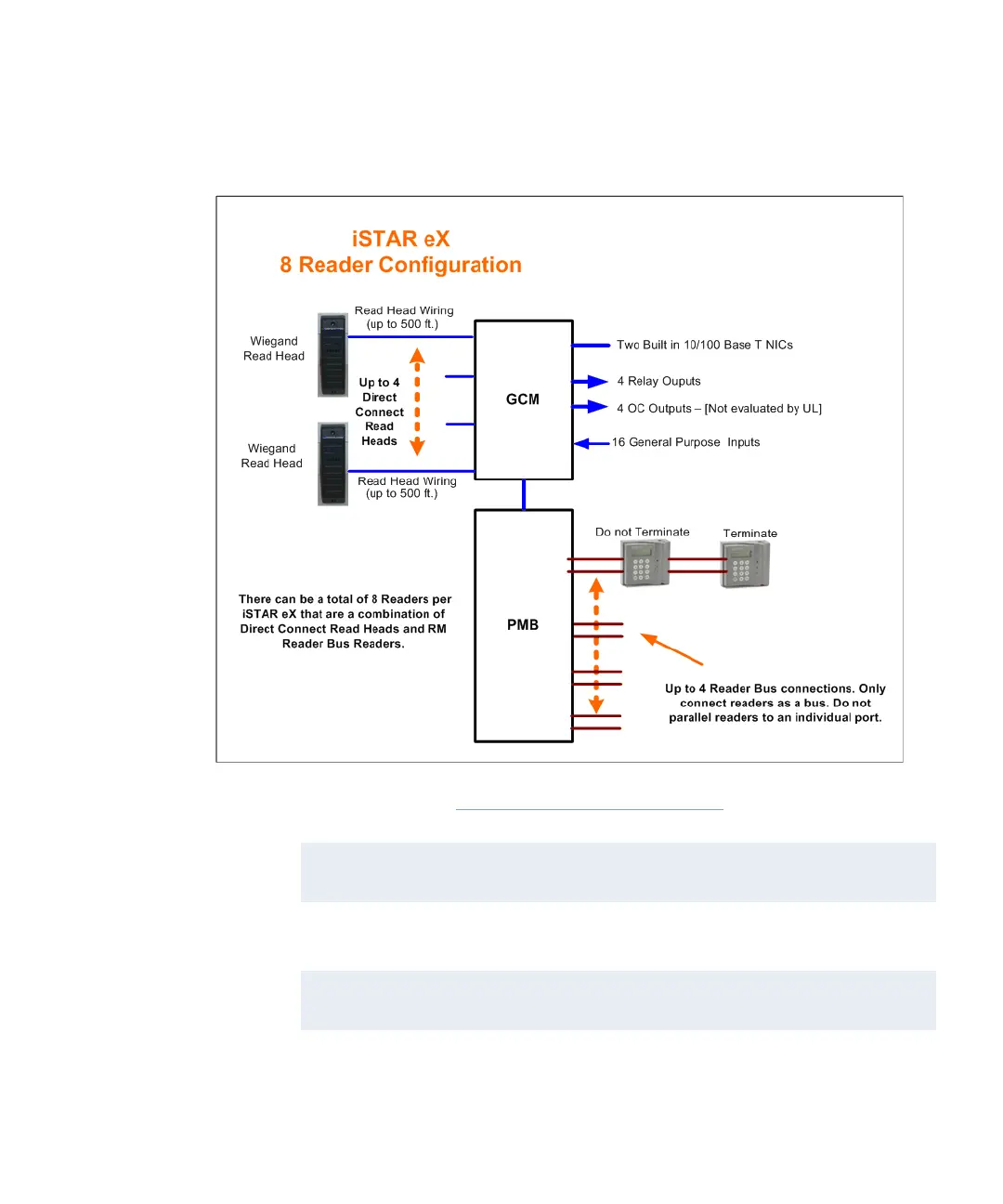

Figure 4.29 shows the various ways to connect the eight readers to iSTAR eX.
Figure 4.29: iSTAR eX 8 Reader Configuration
NOTE
UL has only evaluated the use of eight (8) RM readers or four (4) direct
connect Wiegand readers with the iSTAR eX.
NOTE
To activate the 8 Reader option, refer to “Using the USB Security Key to
Enable Readers 5-8” on page 4-39.
