Using the ICU Window
5–18 iSTAR eX Installation and Configuration Guide
The controller on the left is an iSTAR Classic.
The controller on the right is an iSTAR Classic with a
PCMCIA card.
Not Connected, or
Attempting Host Connection, or
Attempting Master Connection
The controller on the left is an iSTAR Pro.
The controller on the right is an iSTAR Pro with a
PCMCIA card.
Connected to Host, or
Connected to Master
The controller on the left is an iSTAR Pro
The controller on the right is an iSTAR Pro with a
PCMCIA card.
Not Connected, or
Attempting Host Connection, or
Attempting Master Connection
The controller is an iSTAR, an iSTAR Pro, or an iSTAR
eX.
Beaconing for Host
Beaconing for Master
Beaconing for Configuration.
The controller is currently rebooting.
The controller is an iSTAR eX.
The Status column indicates that the controller is:
Connected to Host
Connected to Master
Not Connected
Attempting Host Connection
Attempting Master Connection

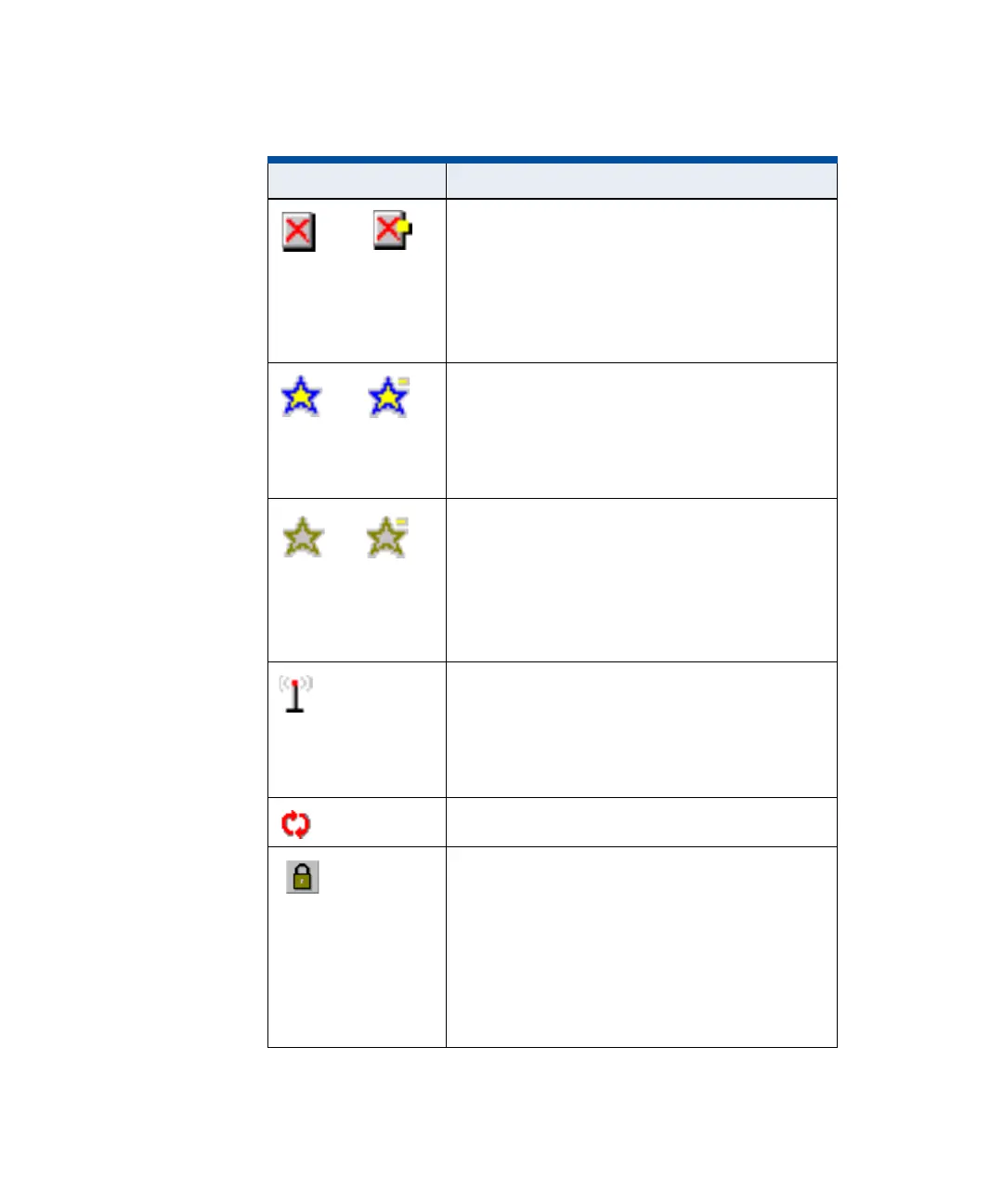

Table 5.3: ICU Window Icons (Continued)
