Uson SPRINT LC - BCD Program Select Input Table

Two Channel Concurrent
with BCD

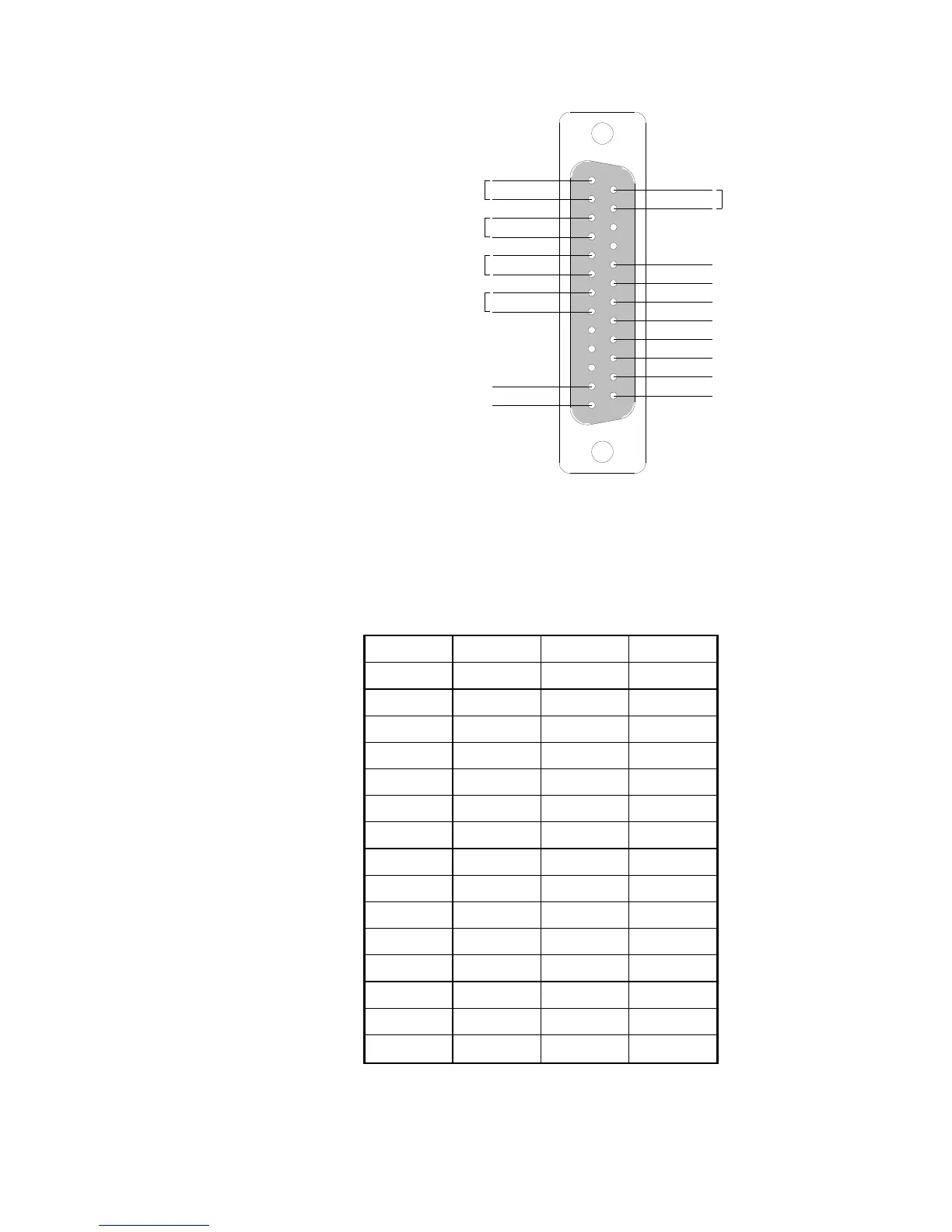

FIGURE 93
BCD Program Select Input Table
Program # Bit 0 Bit 1 Bit 2 Bit 3
no change
1 X
2 X
3 X X
4 X
5 X X
6 X X
7 X X X
8 X
9 X X
10 X X
11 X X X
12 X X
13 X X X
14 X X X
15 X X X X
25
Fail 2
Pass 2
24V Remote Start
Test Over
1
General Fail
Pass 1
24V BCD Bit 3
24V BCD Bit 0
+
-
-
-
+
24V BCD Bit 1
24V BCD Bit 2
-
-
+
+
+
Appendix 12
