Uson SPRINT LC - Three and Four Channel Concurrent with BCD

Three and Four Channel Concurrent with BCD
When a three or four channel concurrent Sprint LC has the BCD program
select option, there are not enough outputs to allow a pass and a fail output
for each channel. In this case a “General” fail output is used. It is active if
any combination of the test ports fail. The individual pass outputs are, of
course, active if the corresponding channel passes. A fail is assumed for
channels that do not have a pass output active.

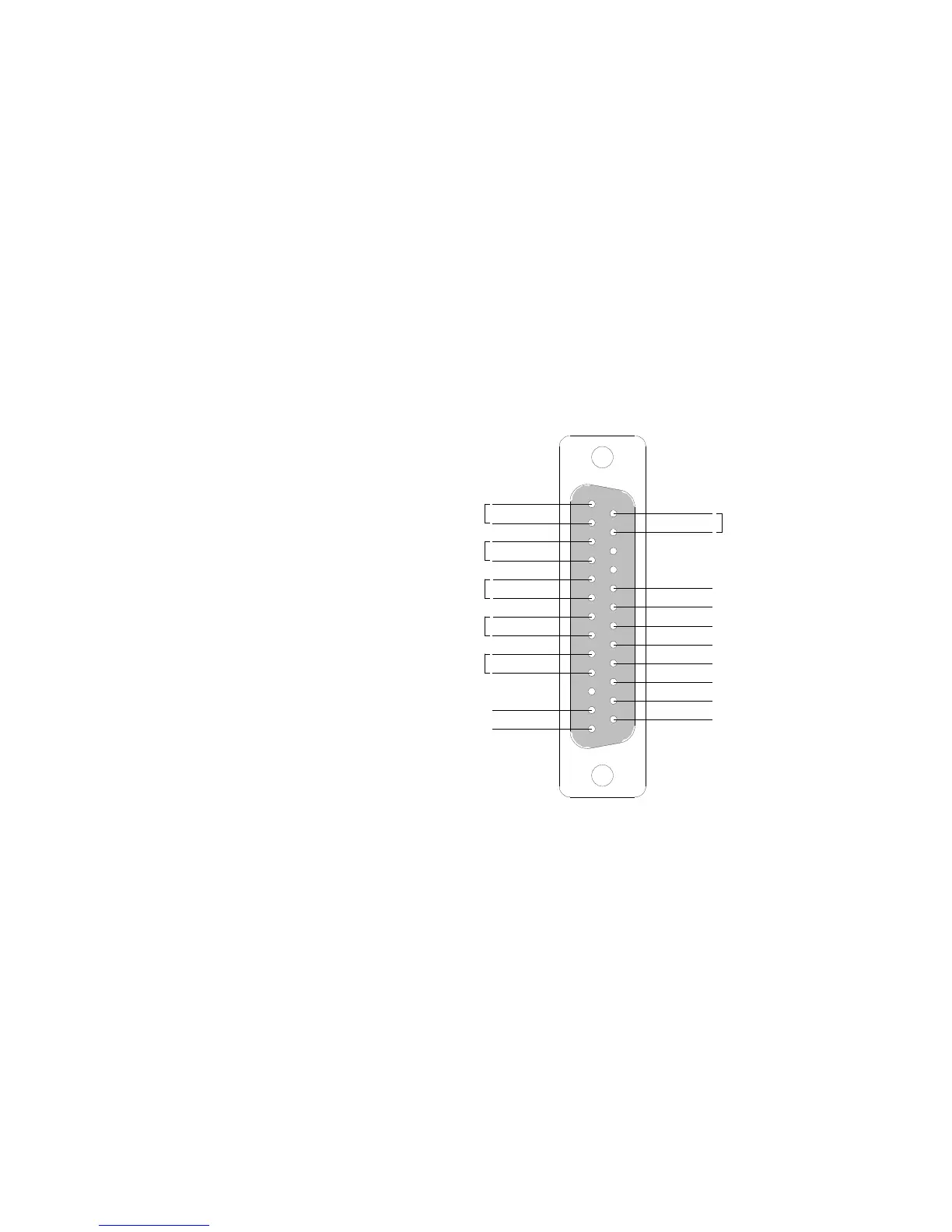

Four Channel Concurrent
with BCD
25
FIGURE 95
1
24V Remote Start
Test Over
General Fail
Pass 1
24V BCD Bit 3
24V BCD Bit 0
24V BCD Bit 1
24V BCD Bit 2
+
-
-
-
-
-
+
+
+
+
Pass 3
Pass 2
Pass 4
Appendix 14
