Reject Level
The reject level is the maximum pressure drop allowed in a product before
a reject is triggered. The level is the difference between the actual test
pressure (P-1) and the value entered in pressure units. If the pressure is
equal to or greater than the reject level at the end of test phase, the product
passes. The instant the pressure drops exceeds the reject limit in test phase,
the test ends and the reject light turns on. Figure 35. If dump is set to
AUTO, the dump valve opens and vents the pressure to atmosphere
without waiting for the test phase to finish.

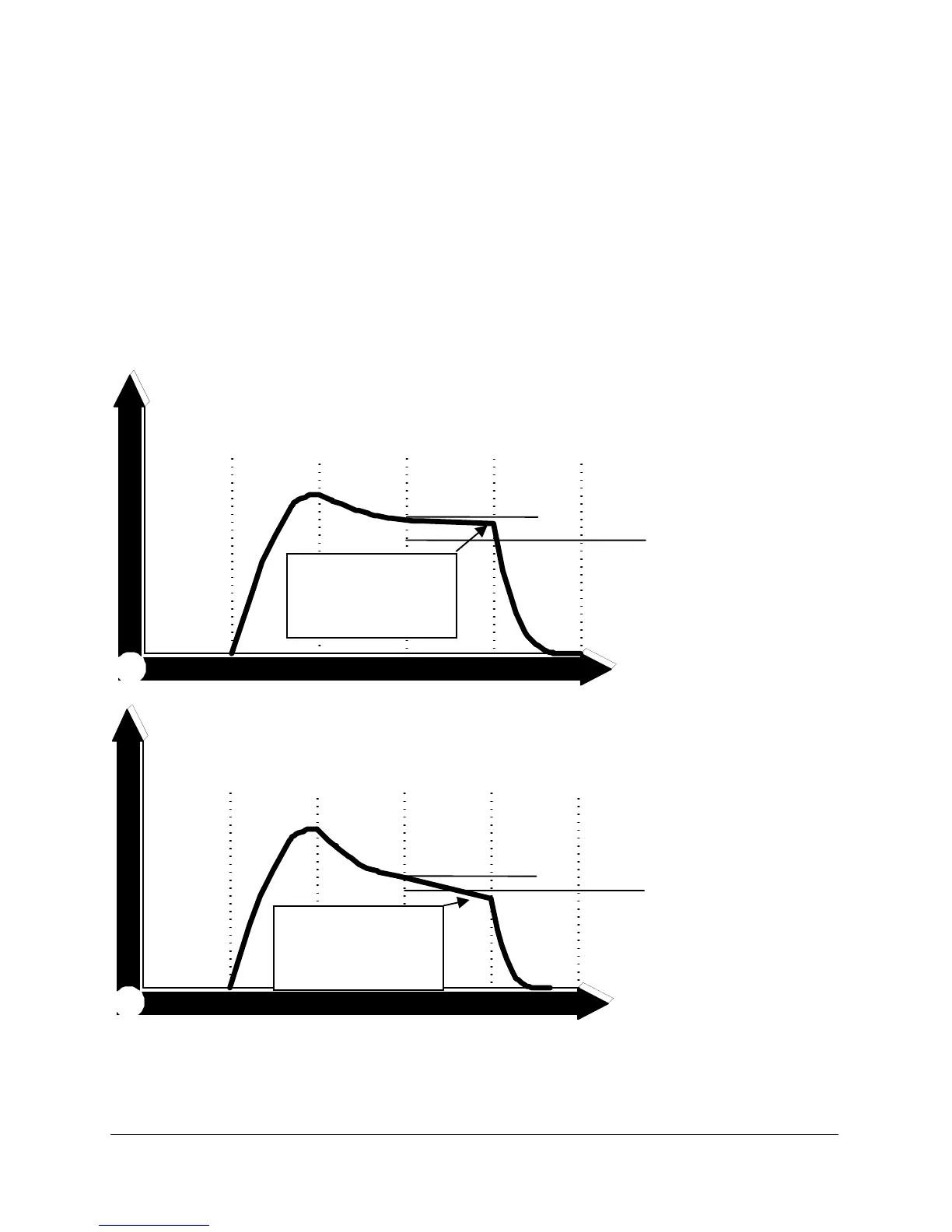

FIGURE 46
Fill Stabilize Test Dump
Zero
Couple
