b. Connect the maintenance terminal cable to the port COM0 of
the AWS330 system and to any free COM port on your
computer. For example, if the free COM port is COM3,
make the .bat file with Notepad, see Figure 119 below.
In the .bat file, the parameter -s115200 indicates the bit rate
(the default is 38400) and the parameter -pCOM3 indicates
the communication port (the default is COM1).
1101-028

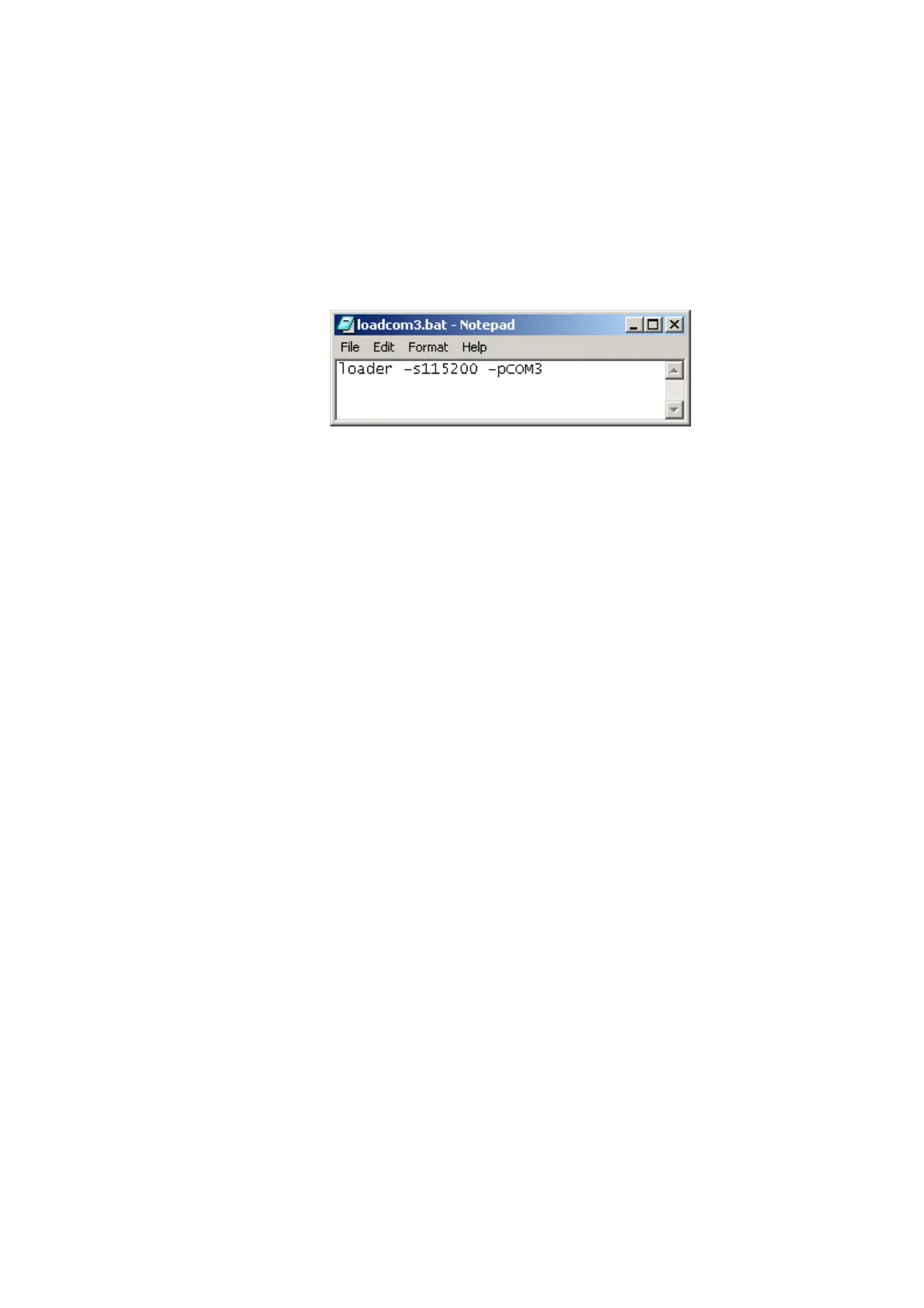

Figure 119 Making the .bat File in Notepad
3. Close any terminal connection to AWS330 so that the serial port is
free for software loading.
4. Close all other Windows programs.
5. To load the software, follow the instructions given in either step a.
or b.:
a. When you are using the COM1 port of your computer, open
Command Prompt and change the directory to the folder
where you have loader.exe and bin.mot. Type loader and
press ENTER. The Command Prompt window shows
Waiting.
b. When you are using some other communication port, execute
the .bat file created in step 2.b. The Command Prompt
window shows Waiting.
6. Reset the logger by pressing the reset button.
7. The Command Prompt window shows Erasing for some time
and then starts to show Loading. If you get a load error, try again
from step 2.
8. After a few minutes, the display shows Loading 100 %.
9. The program restarts with an existing setup, and AWS330 is now
ready to operate.
If you are having problems when loading software to the logger, for
example, if loading is interrupted and you get the message Load
Error -1, try again, with all other Windows programs closed except
Command Prompt.
Loading may be interrupted due to a corrupted bin.mot file, or due to
power save features, especially when a laptop PC is used.
