Chapter 4 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 65
1012-216

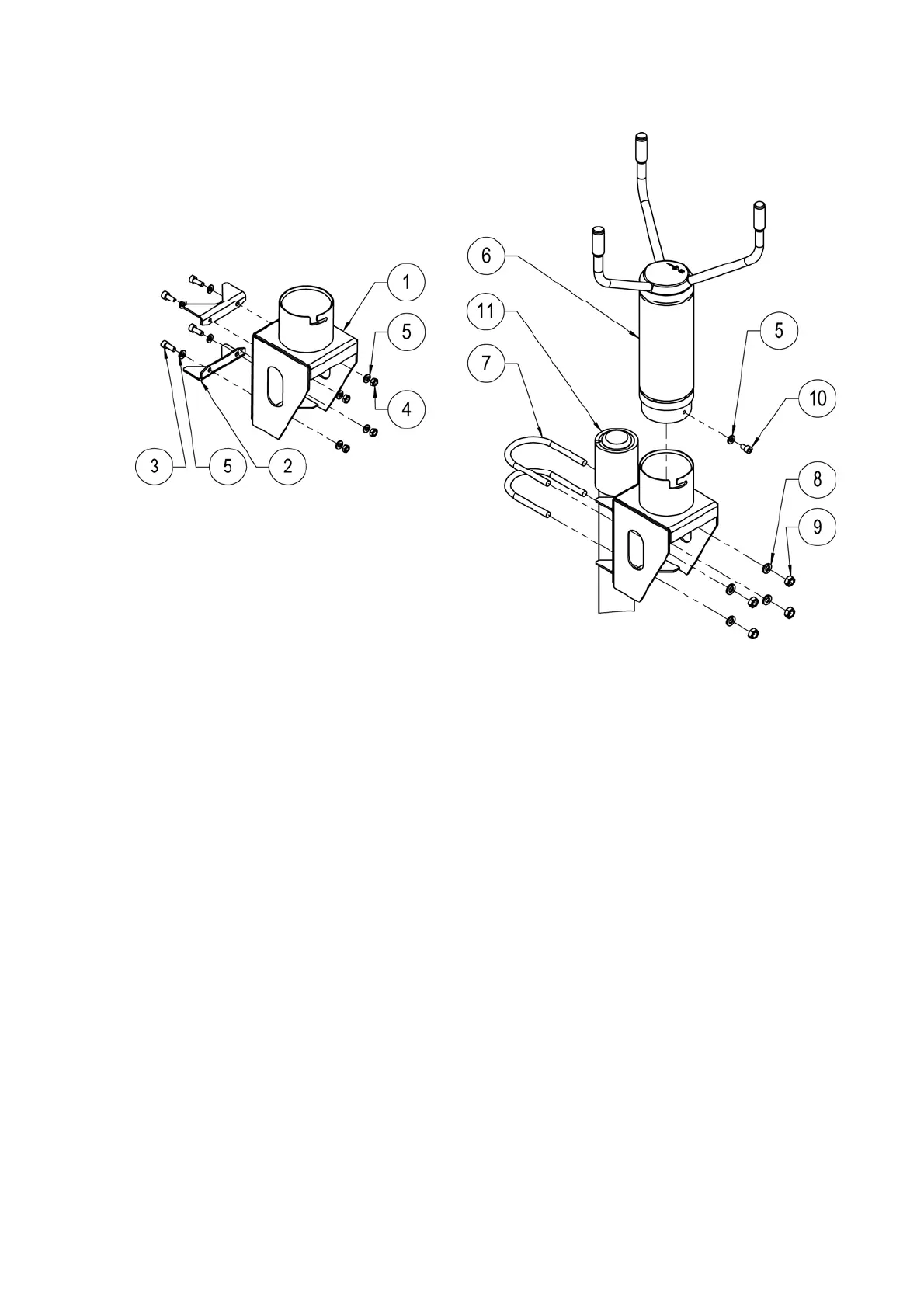

Figure 27 Installing Ultrasonic Wind Sensor WMT703
The following numbers refer to Figure 27 above:
1 = FIX70 mounting kit
2 = Mast adapter for FIX70 mounting kit
3 = Screw M6x16 DIN912 A4, 4 pcs; Allen key 5 mm
4 = Nut M6 DIN934 A4, 4 pcs; use wrench 10 mm
5 = Spring washer B6 DIN127 A4, 9 pcs
6 = Ultrasonic Wind Sensor WMT703
7 = U-bolt
8 = Spring washer B8 DIN127 A4, 4 pcs
9 = Nut M8 DIN934 A4, 4 pcs; use wrench 13 mm
10 = Fixing screw M6x10 DIN912 A4, 1 pcs; use Allen key 5 mm
11 = Mast
