Vaisala AWS330 User Manual

Chapter 4 _______________________________________________________________ Installation
VAISALA_______________________________________________________________________ 81
1012-183

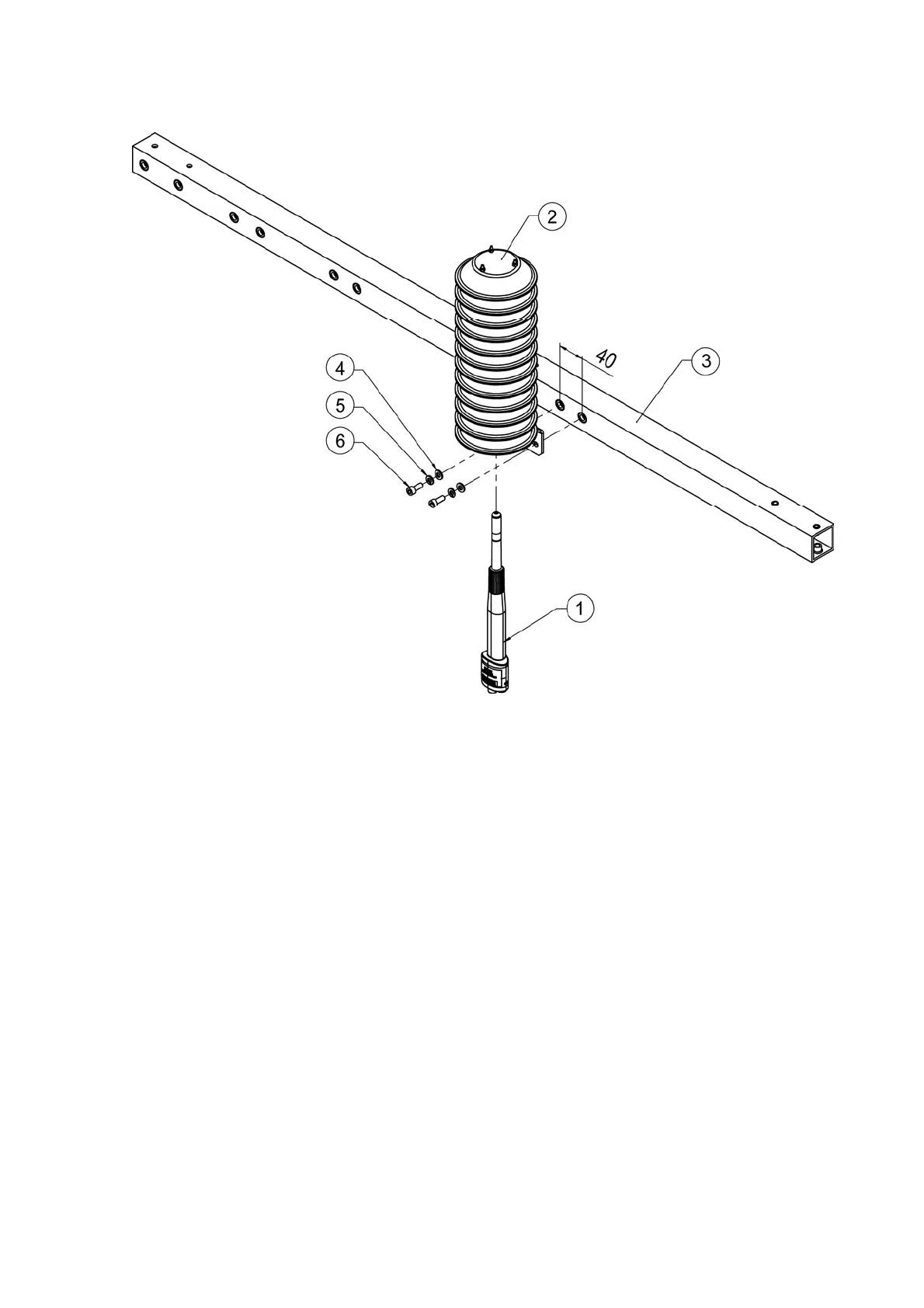

Figure 40 Installing HMP155 into Radiation Shield
The following numbers refer to Figure 40 above:
1 = HMP155 probe
2 = Radiation shield DTR503A
3 = Sensor support
4 = Washer A6.4 DIN125 A4, 2 pcs
5 = Washer B6 DIN127 A4, 2 pcs
6 = Screw M6x16 DIN912 A4, 2 pcs; use Allen key 5 mm
