User's Guide ______________________________________________________________________
92 __________________________________________________________________ M211296EN-A
1012-191

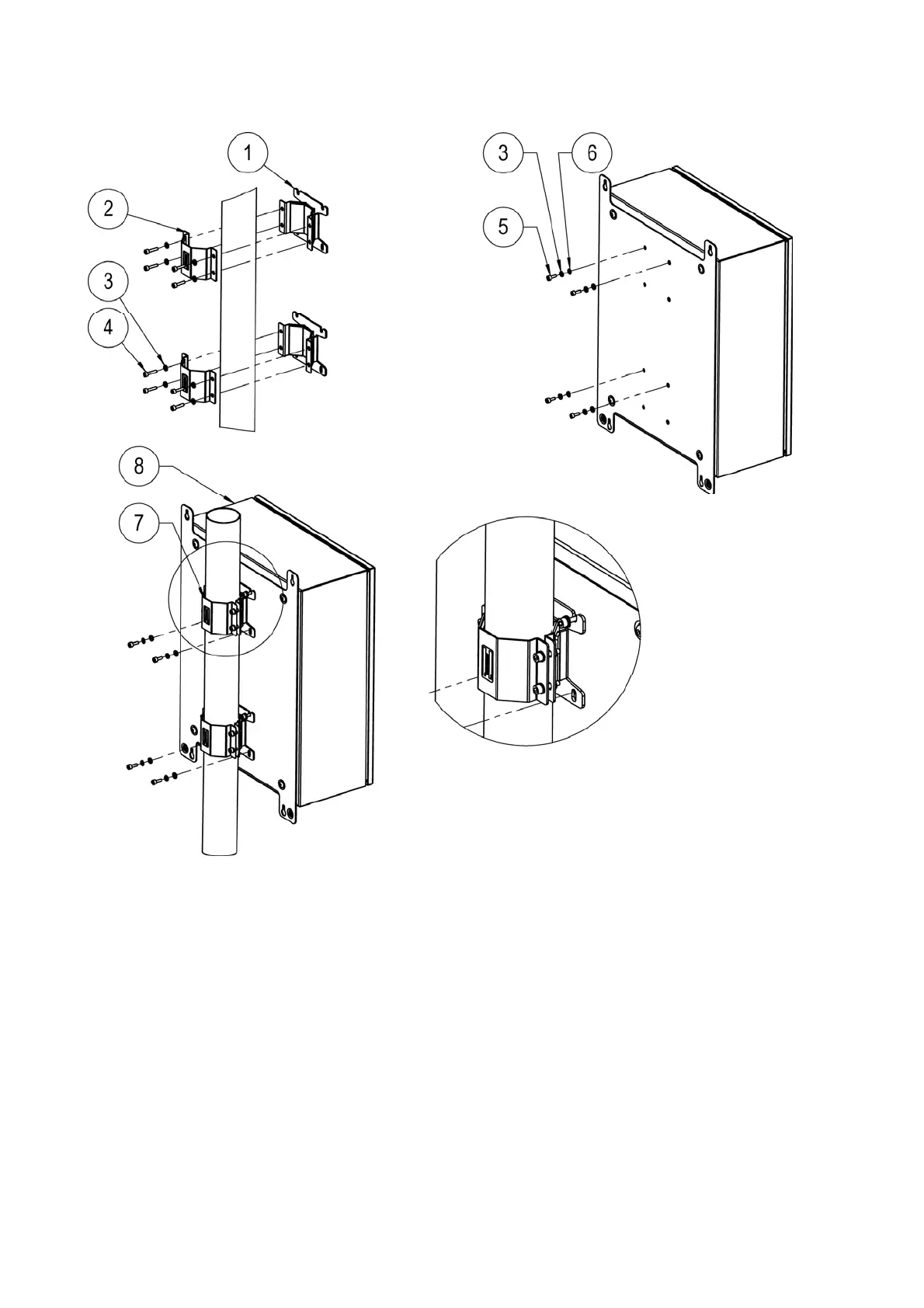

Figure 48 Installing Enclosure to Mast
The following numbers refer to Figure 48 above:
1 = Support plate, APPK-SET100
2
= Clamp plate, APPK-SET100
3 = Spring washer B6 DIN127 A4, 8 pcs
4 = Screw M6x25 DIN912 A4, 8 pcs; use Allen key 5 mm
5 = Screw M6x16 DIN912 A4, 8 pcs; use Allen key 5 mm
6 = Washer A6 DIN125 A4, 8 pcs
7 = Mast mounting set, APPK-SET100
8 = Enclosure
