Chapter 2 Installation Procedures
11
BASIC CONFIGURATION

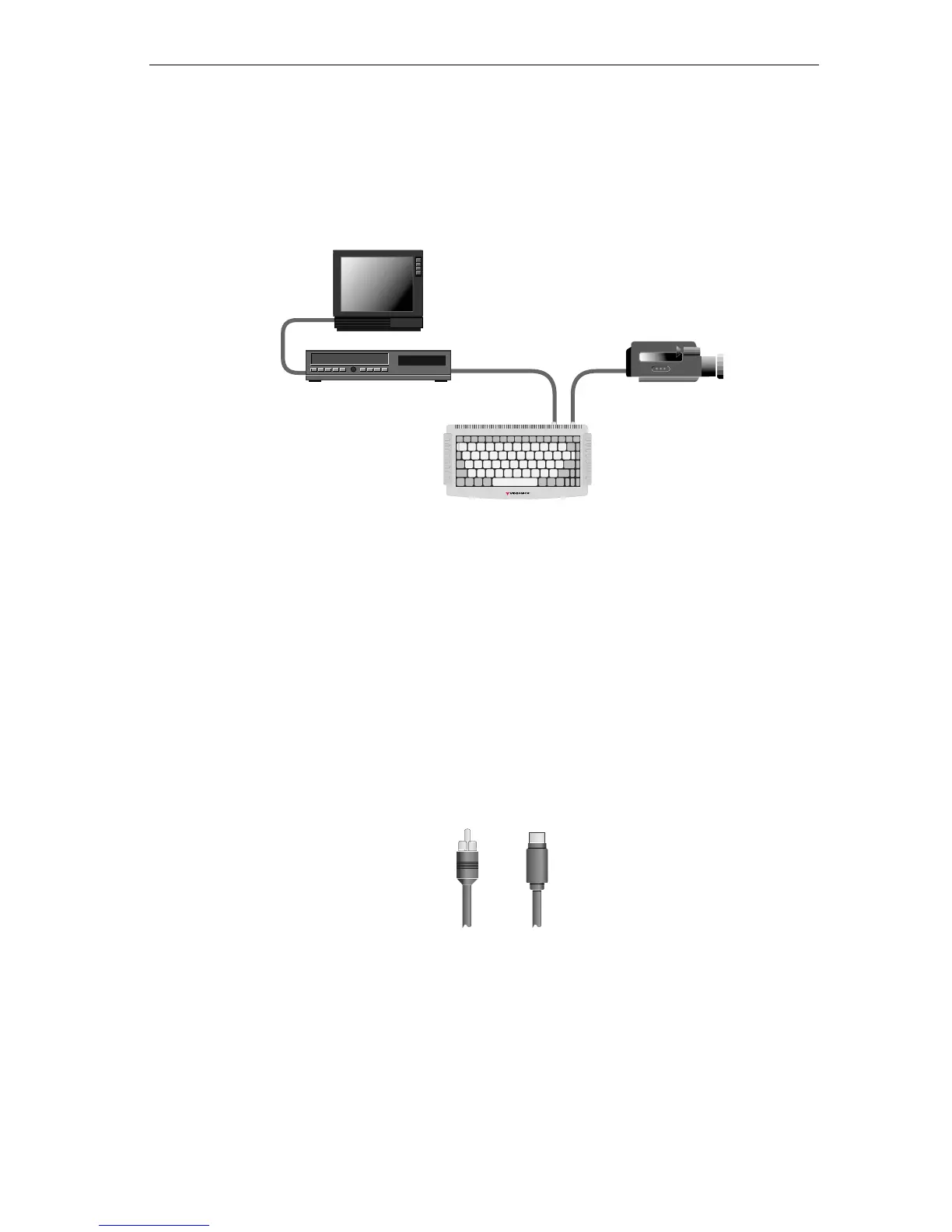

The following illustration shows the basic configuration for the Per-
sonal TitleMaker and video equipment.
Device Types
Use either Composite or S–Video devices as input and output. The two
types of devices have different connectors and, therefore, require the
proper cables. Make sure you have the cables you need before pro-
ceeding with the setup, and make sure you have the right types of
cables for each device.
Composite devices use an RCA-type jack. S–Video devices use a Y/C
jack.
Know which types of devices you are using so that you can make the
proper connections to Personal TitleMaker.
00:00
Video Monitor
Output Device Input Device
Personal TitleMaker
Composite S-Video
RCA jack Y/C jack
