Watlow F4T • 57 • Chapter 3 Using the F4T Front Panel
Set up
1. Create Part and Profile list
2. Set up Load Batch and Unload Batch fields the end user
will be prompted to scan for the job
Daily Operations
3. Batch Entry - Load: Operator will scan in bar code fields
being requested by controller
4. Batch Entry - Unload: Operator will scan in bar code fields
being requested by controller
Admin. or Manager
Line Operator
Step 2

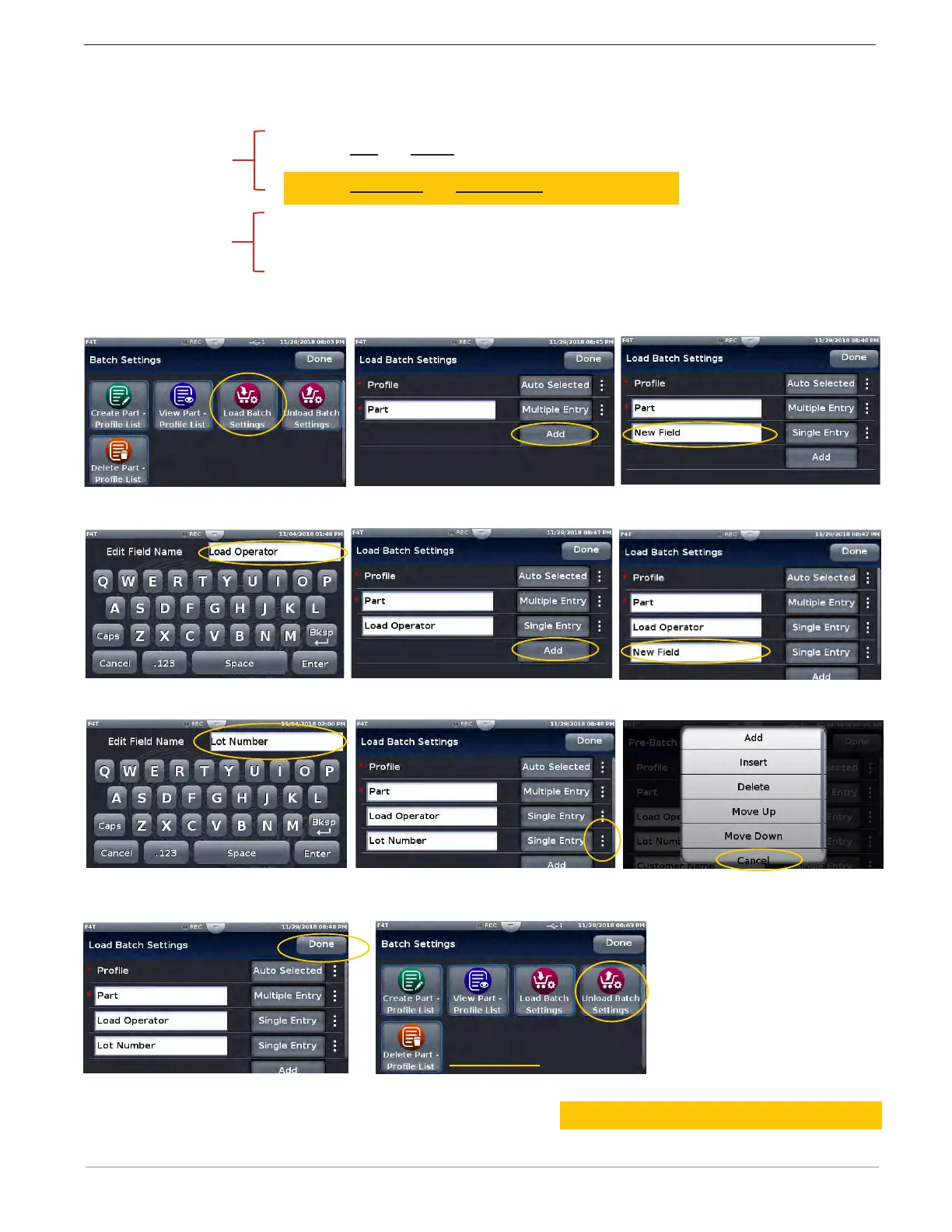

Batch Processing Programming - 4 Simple "How To" Programming Steps (con't)
1
4
5
6
7
9
11
Repeat steps 2-10 to set up
Unload Batch bar code fields
10
Up to 25 different custom named fields can be added
Set up of batch processing complete
Create Load Batch bar code fields
the operator will be asked to scan
2
3
Edit name
Edit field or list
8

Watlow F4T Specifications

General

Inputs	Thermocouple, RTD, mA, V
Outputs	Relay, SSR, mA, V
Communication	Ethernet, Modbus RTU
Data Logging	Yes
Certifications	CE, UL, cUL, RoHS
Control Modes	PID, On/Off
Power Supply	100 to 240 VAC
Operating Temperature	0 to 50°C
Enclosure Rating	IP65
Display	4.3 in. (109 mm) color touch panel LCD
Control Loops	Up to 4
