Operation 72800115 Markoprint X4JET
Seite 107 von 177 GB
Configurable Inputs and Outputs
The X4JET controller offers the possibility of the M12 (ALARM) and the 15-pin SUB-D
connector (EXTERNAL) to use as additional inputs / outputs. The used pins of the pin
assignment see Chapter Plugs and sockets, page 144 for further details.
A variety of configurations are possible and so the connectors for output of status
messages (OK, Warning, Error), cartridge level messages (5% low / empty), print ready
and print pulse are possible to use. On the input side signals for heating, spitting, print
direction, upside print, stop and text selection are possible.
The setting can be done with iDesign Software in System Settings features Advanced
Settings Config Input / Output

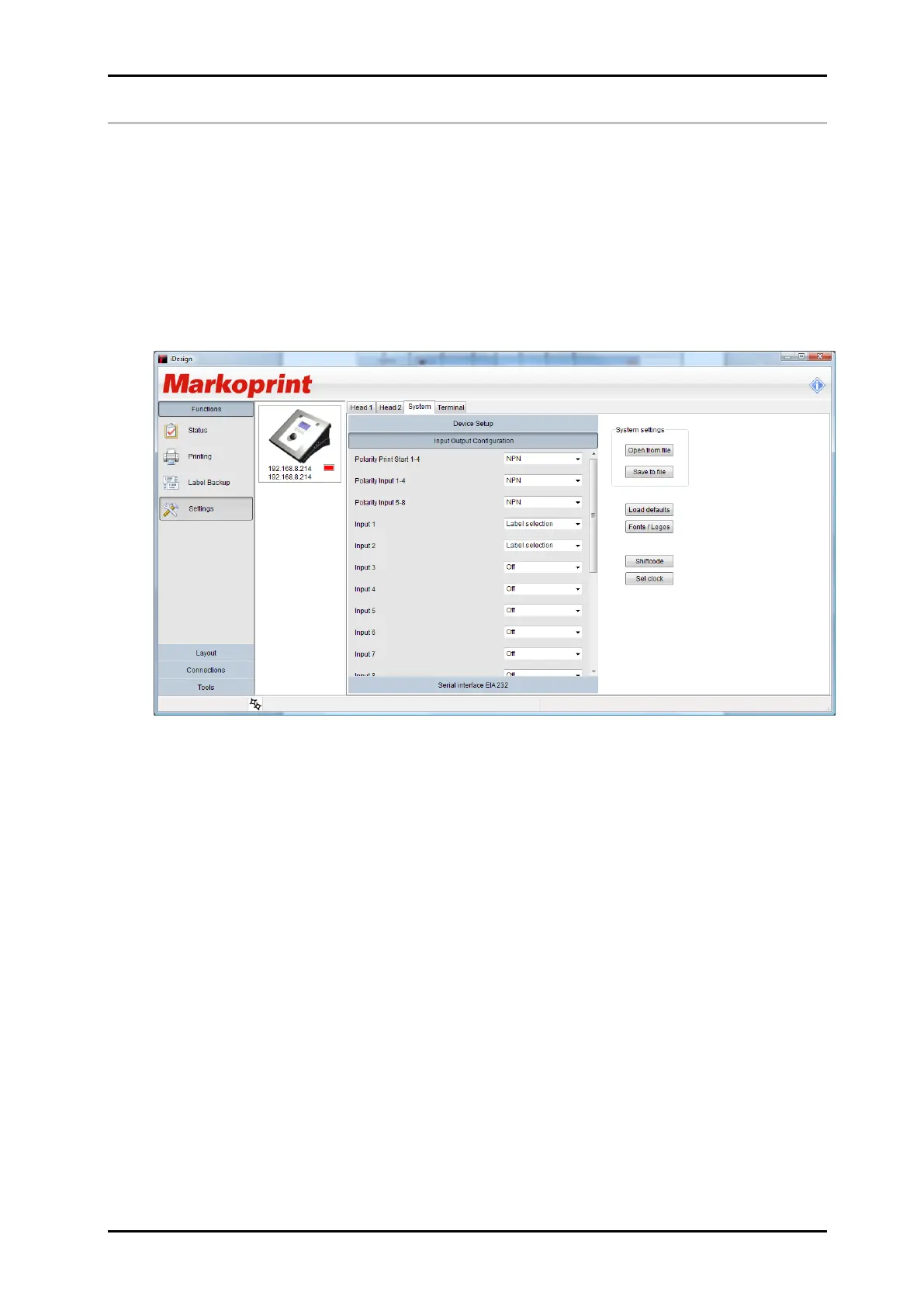

Fig. 41: Desktop surface of iDesign
