Assembly and function 72800115 Markoprint X4JET
Seite 39 von 177 GB
Print heads
HP – print heads
The print heads will be installed with mounting brackets at the production line directly.
The HP print heads consist of:
 Cartridge bracket
 Ink cartridge
 Controller connector
 Integrated electronics

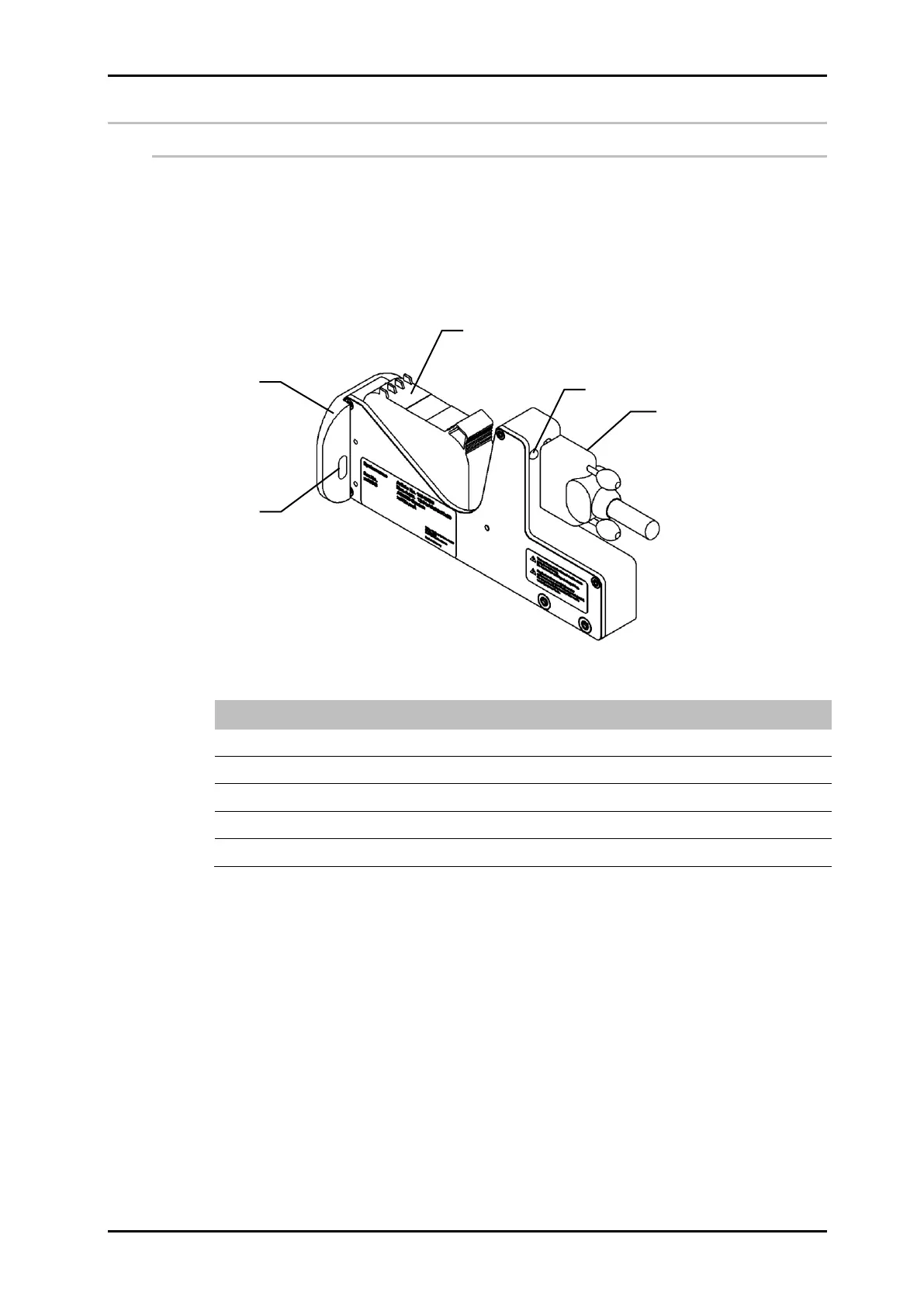

Fig. 10: Print head HP MK2 Version1 Single model
No.
Description
1
DEFLECTOR
2
INK CARTRIDGE
3
STATUS LED
4
CONTROLLER CONNECTION
5
APERTURE SENSOR
The HP print heads are available in three different versions:
 HP MK2 Version 1 – flat version (196,5mm) with connector at the back
 HP MK2 Version 2 – short version (187mm) with connector at the bottom
Detailed dimensional drawing see appendix.
1
4
5
3
2
