Assembly and function 72800115 Markoprint X4JET
Seite 38 von 177 GB

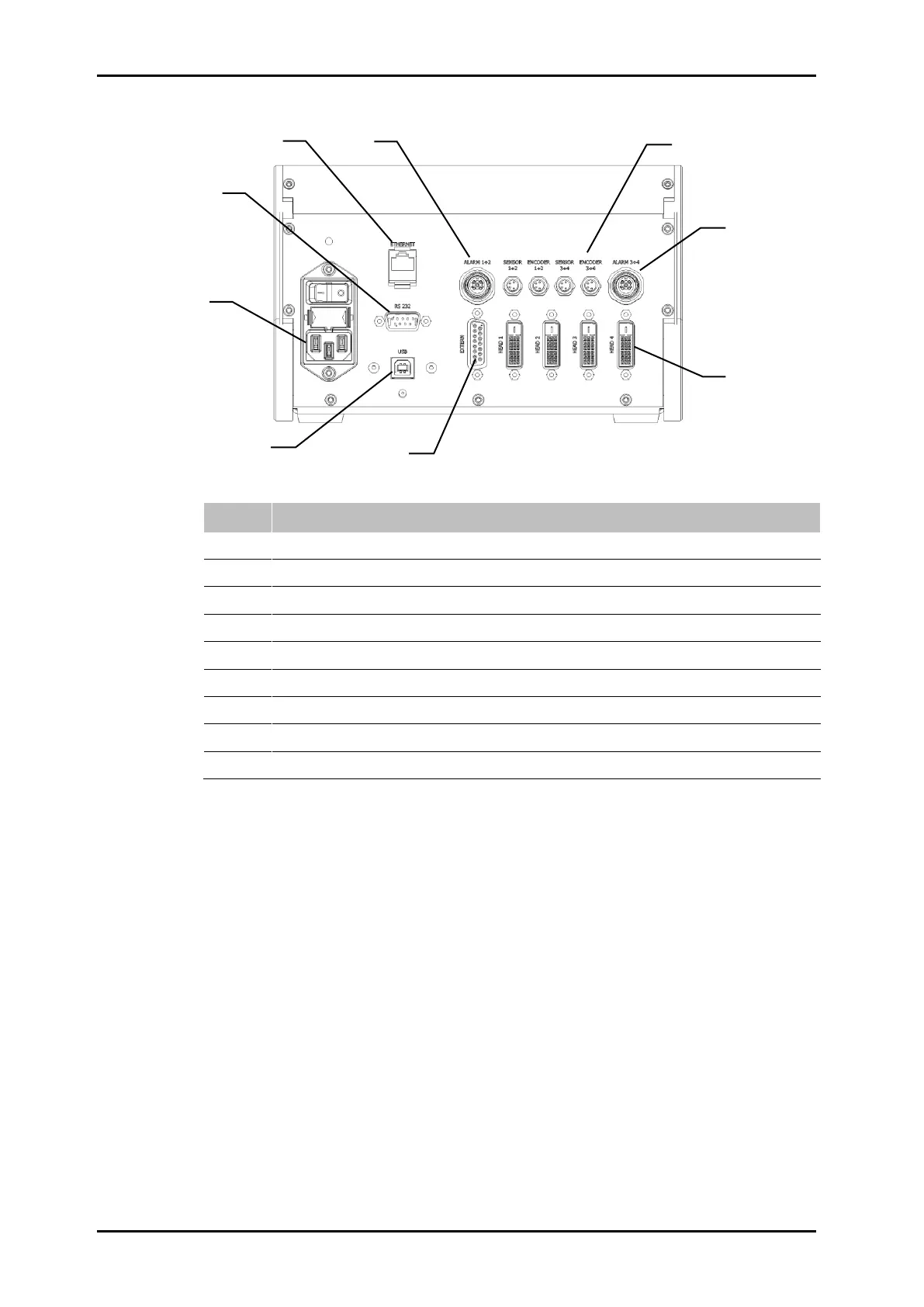

Fig. 9: Controller back-/connection side
No.
Description
1
NETWORK CONNECTION
2
SENSOR
3
ENCODER
4
ALARM
5
PRINT HEAD CONNECTIONS
6
OPTIONAL IN-/OUTPUTS
7
USB-B
8
POWER CONNECTION
9
RS 232
1
3
5
6
2
4
7
9
8
