Weber Markoprint X4JET - Encoder

Appendix 72800115 Markoprint X4JET
Seite 145 von 177 GB
Encoder
Encoder input: 24V
Standard: NPN or push-pull max. 100 kHz
Rotary encoder with 4-pole M8 round plug
PIN
Description
Value
Unit
1
Power, max. 10mA
+ 24
V
2
3
GND
0
V
4
Encoder signal
Standard: NPN or push-
pull
-
If using a PNP encoder or a PNP Signal as encoder the encoder input must be pulled to
GND with an 1KOhm resistor.
The resistor must be for min.1W and the load is about 25mA.

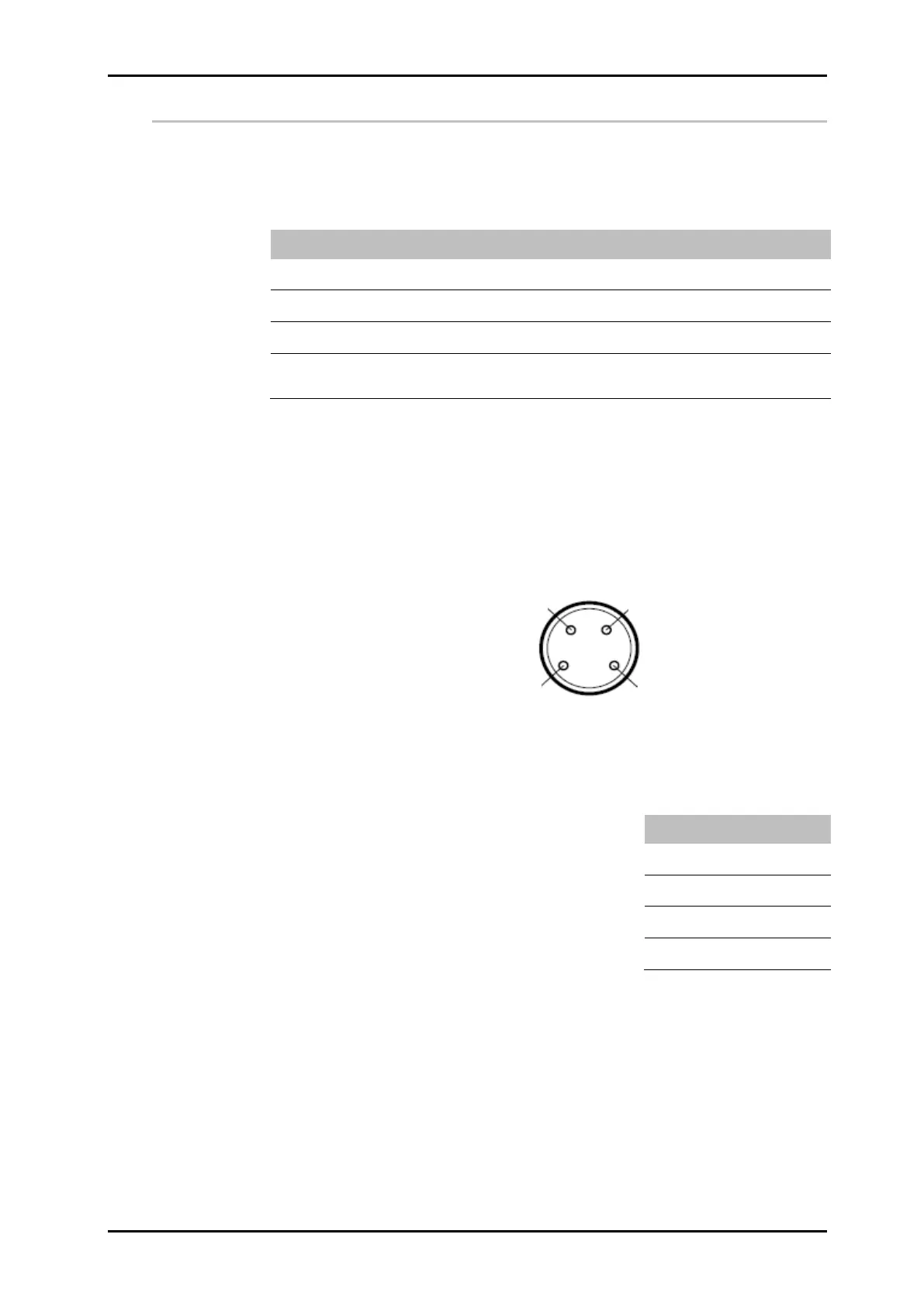

Fig. 47: Socket 4-pole M8 plug
Cable colours
PIN
Cable colour
1
Brown 24V
2
White input
3
Blue 0V (ground)
6
Black input
When using the splitter cable are both inputs / outputs clearly separated.
The output is on a socket on PIN4 (see Fig.48).
PIN 1 BN (brown)
PIN 2 WH (white)
PIN 4 BK (black)
PIN 3 BU
(blue)
View on plug back side
