Controller
The Markoprint X4JET controller consists of:
 The electronics inside the housing
 The iLOGIK controller for parameter input and settings
 Four membrane keys for print head selection and to make settings
 One OLED display
 The connectors on the system back for power supply, encoder, photo sensor and
other in-/outputs
The Markoprint X4JET can be used as table system or can be installed on the
production line directly with special optional mounting brackets or as wall-mounted
system.

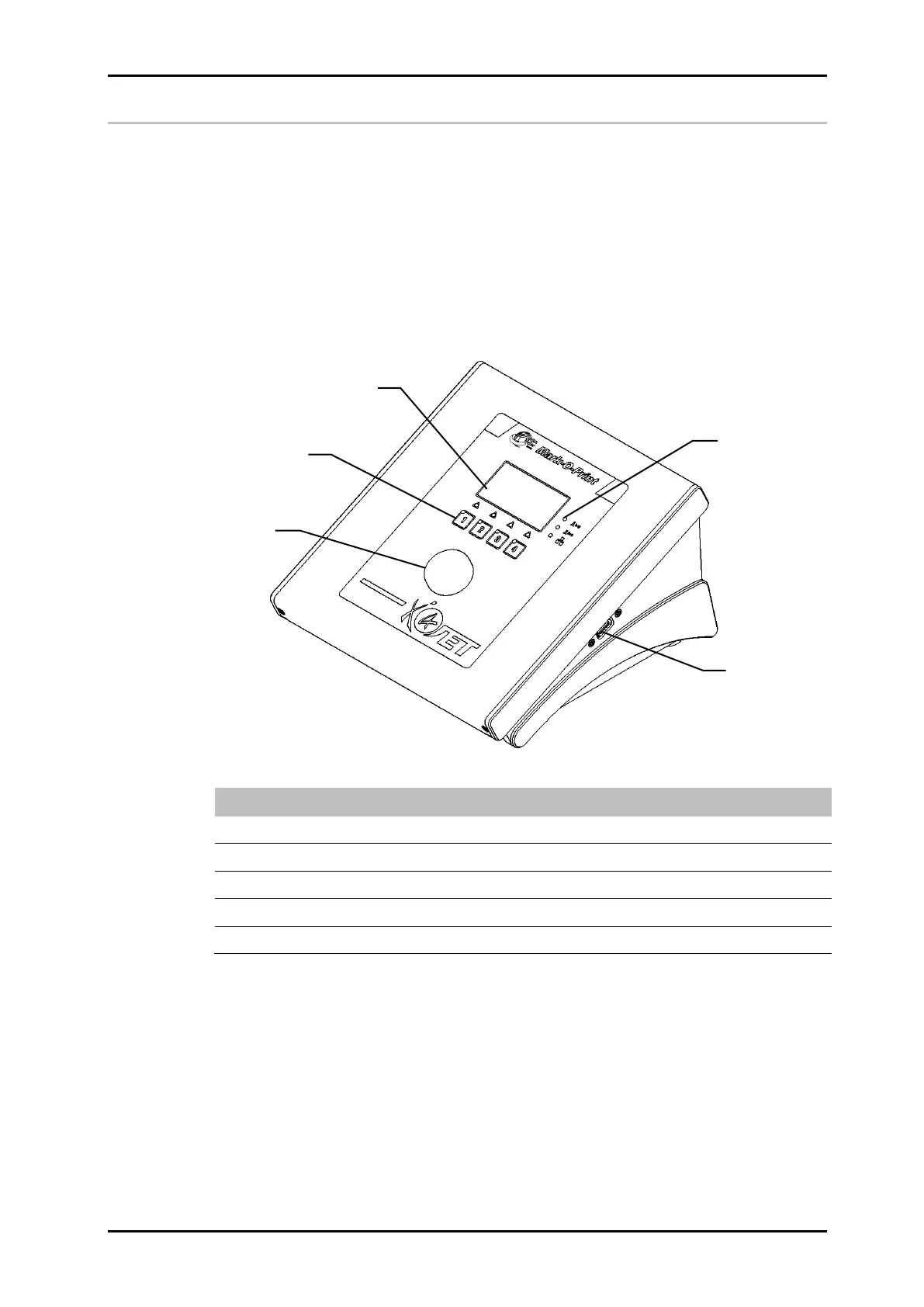

Fig. 8: Controller
No.
Description
1
DISPLAY
2
STATUS LED
3
USB-A
4
ILOGIK
5
KEYS FOR PRINT HEAD SELECTION
1
2
3
4
5
