Weber Markoprint X4JET - MX print heads

Assembly and function 72800115 Markoprint X4JET
Seite 47 von 177 GB
MX print heads
The print heads will be installed with mounting brackets at the production line directly.
With suspicion of arise shocks or vibrations of the conveyor belt install the print head on
a separate floor stand.
The MX print heads consist of:
 The Trident print head module with 50mm or 100mm print height
 The adapter of the ink bottle
 The integrated electronics
 The flange plate on the bottom side of the housing (optional on the side) with
connector for the controller, power supply, alarm light, maintenance station,
purge button and status LED

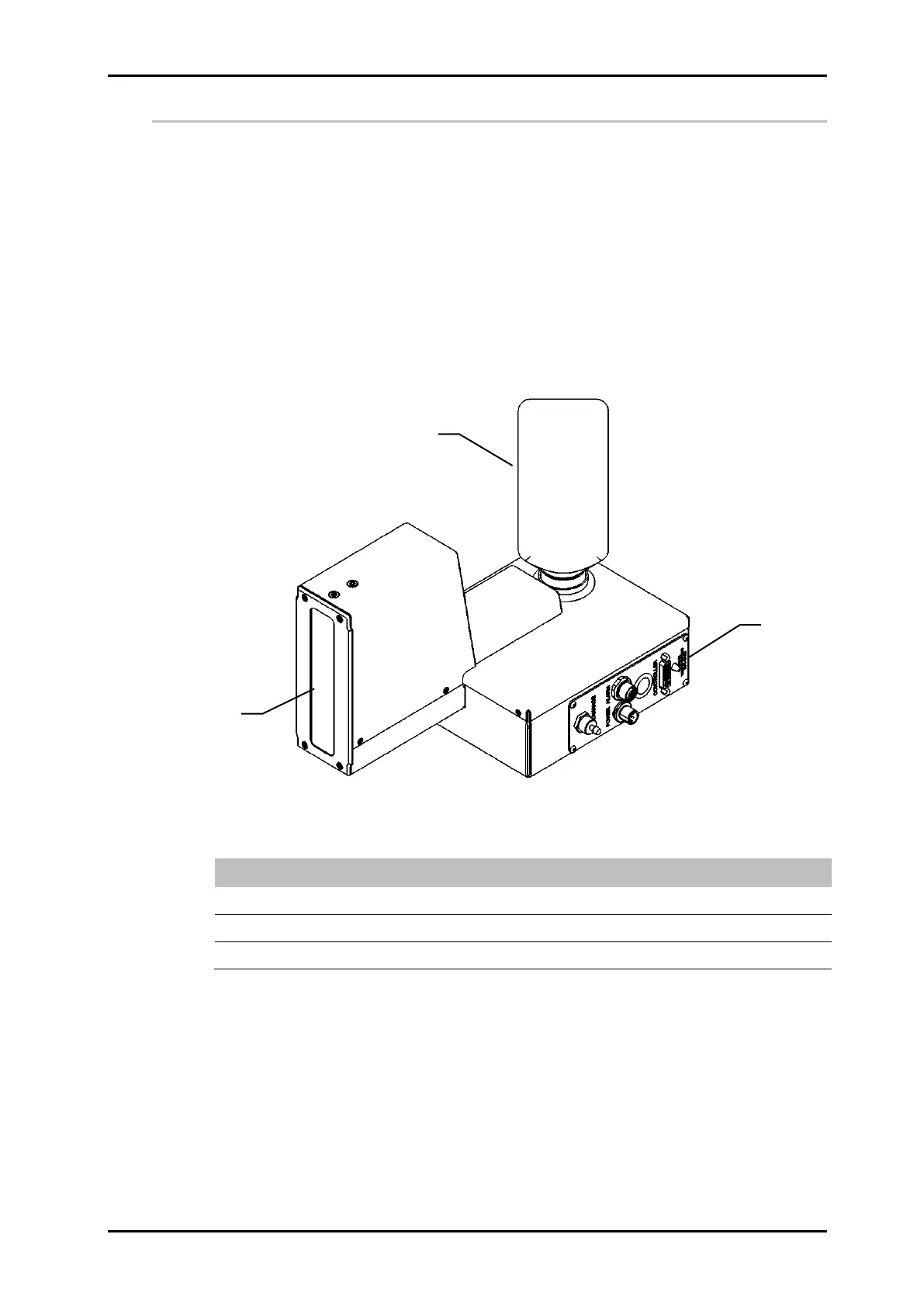

Fig. 14: Trident – Print head MX 100 single model
No.
Description
1
INK BOTTLE
2
FLANGE PLATE
3
PRINT HEAD MODULE
The MX print heads are available in following versions:
 MX 100: max. print height 100mm ; available in the „Compact“ version, „Top“ and
„Vario“.
 MX 50: max. print height 50mm ; available in the „Compact“ version, „Top“ and
„Vario“.
2
1
3
