Assembly and function 72800115 Markoprint X4JET
Seite 48 von 177 GB

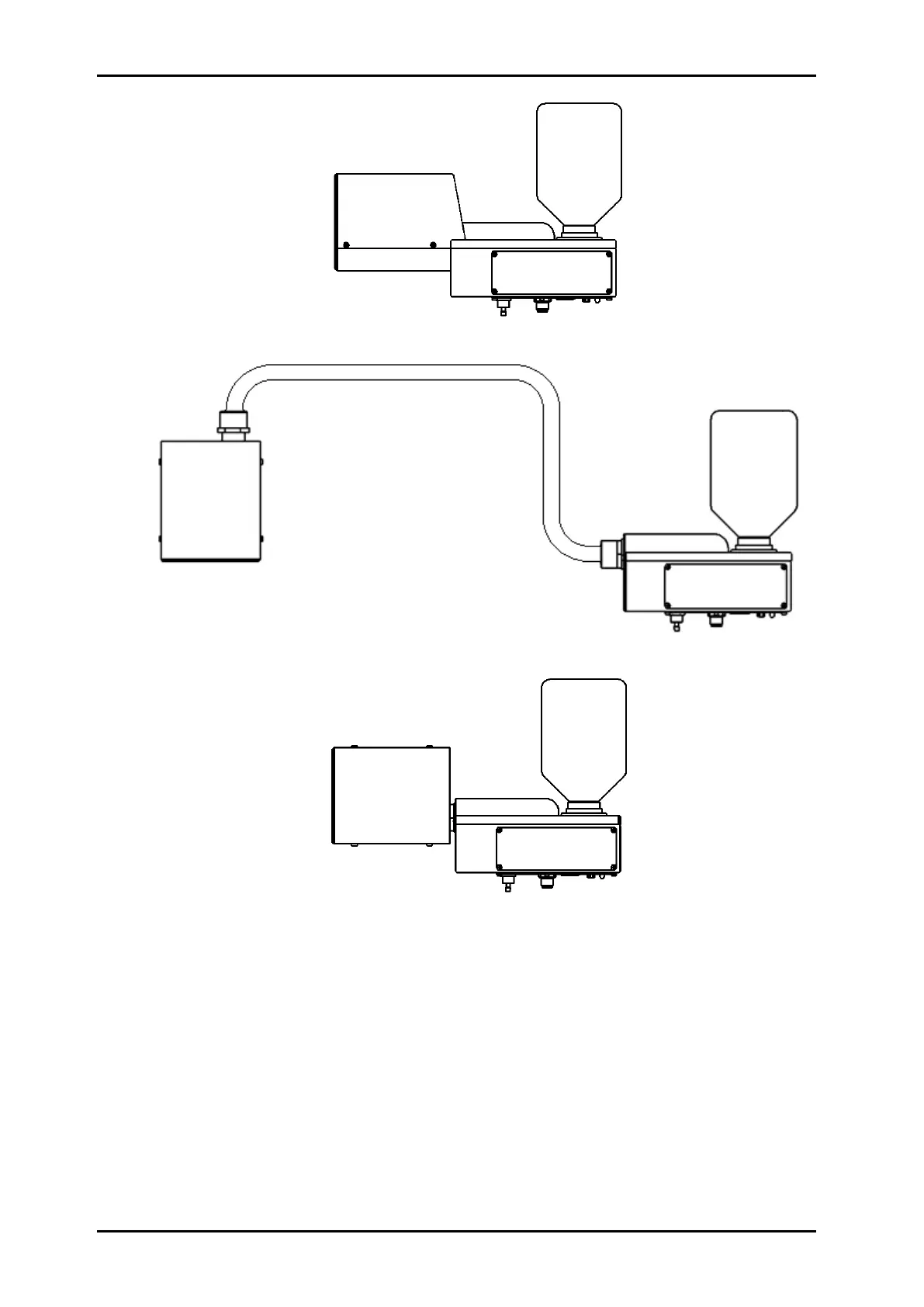

Fig. 15: Trident print head, MX 50 Compact model
Fig. 16: Trident print head, MX 50 Top model
Fig. 17: Trident print head, MX 50 Vario model
Print head distance:
The distance from nozzle to nozzle is 150 mm if two or more print heads will be installed
to print 150 mm or higher.
The 50mm print head (if needed) must the top print head.
