Trident – print head module MX 100 / 50
Material damage
The nozzle plate can be damaged by incorrect
disassembly.
Therefore:
Never remove the nozzle plate - this would invalidate
the warranty.
The print head MX 100 has 256 selectable channels, each with 3 nozzle openings.
The print head MX 50 has 128 selectable channels, each with 3 nozzle openings.
The nozzle plate is permanently screwed to the metal body.
The connections for the control electronics are located at the back.

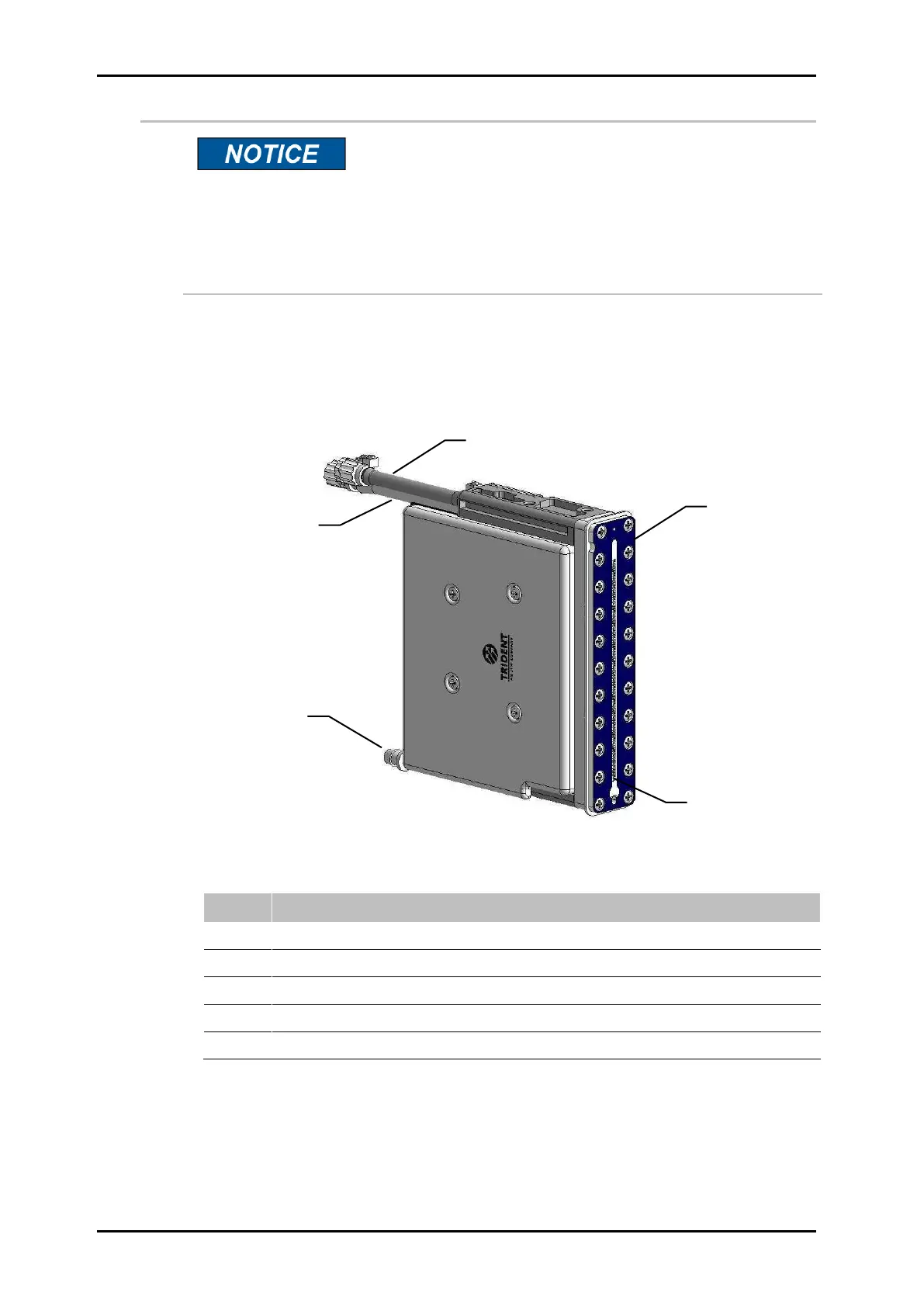

Fig. 19: Trident print head module MX 100
No.
Description
1
INK RETURN
2
NOZZLE PLATE
3
NOZZLE OPENINGS
4
MAINTENANCE STATION CONNECTOR
5
INK SUPPLY
The Trident print heads are available as single version. Up to two print heads can be
cascaded.
The single print head as 50 version has a maximum print height of 50 mm, the 100
version a print height of 100 mm. The print height will be higher with a cascading of
every additional print head (two 100er print heads = 200 mm). The 50er and 100er print
heads can be mixed together.
