Weber Markoprint X4JET User Manual

Assembly and function 72800115 Markoprint X4JET
Seite 44 von 177 GB
LX print heads
The print heads will be installed with mounting brackets at the production line directly.
The HP print heads consist of:
 Cartridge bracket
 Ink cartridge
 Controller connector
 Integrated electronics

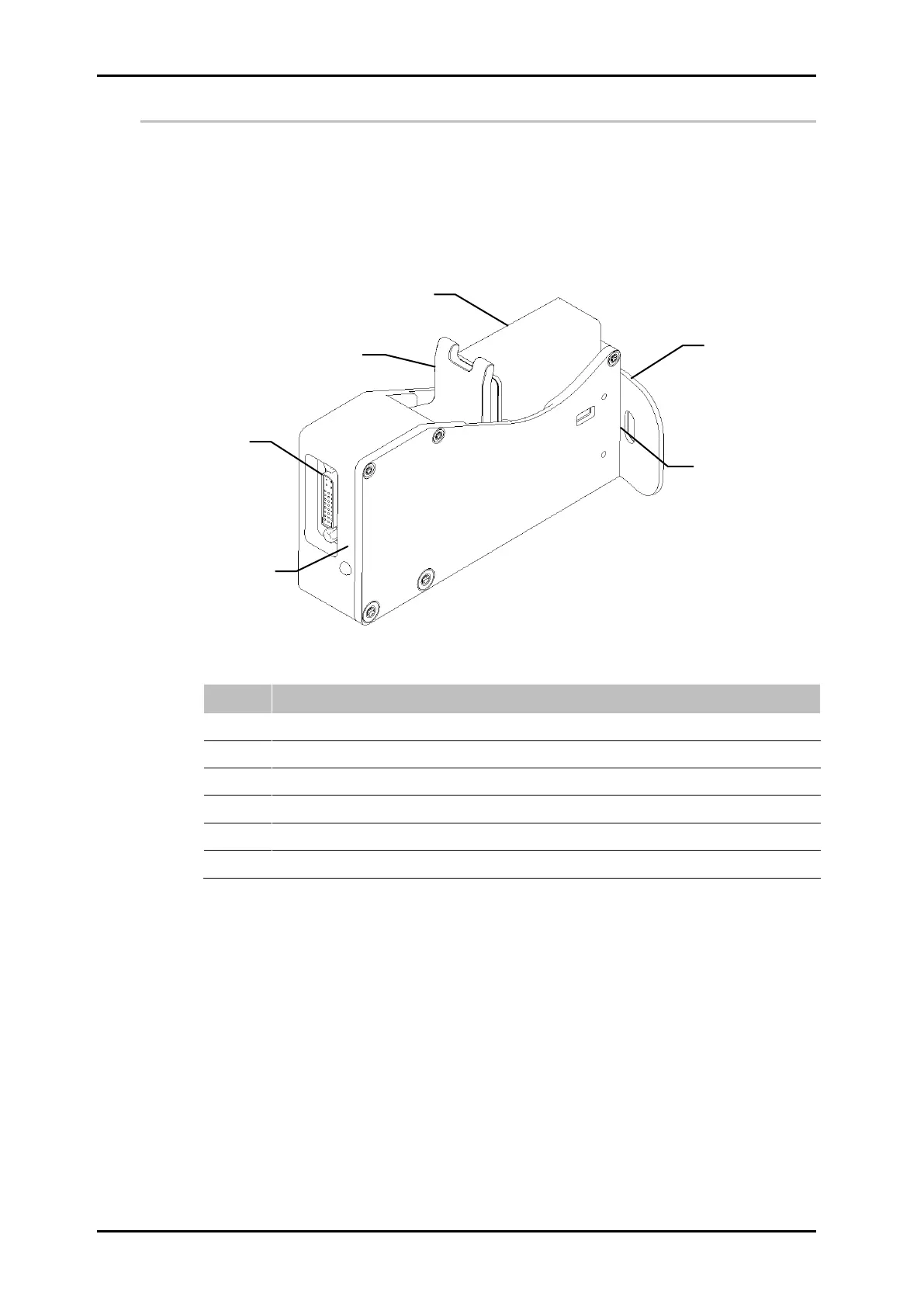

Fig. 12: Print head LX MK2 Version 1 Single version
No.
Description
1
INK CARTRIDGE
2
DEFLECTOR
3
APERTURE SENSOR
4
STATUS-LED
5
CONTROLLER CONNECTOR
6
CLAMP LEVER CARTRIDGE
2
1
3
5
4
6
