Appendix 72800115 Markoprint X4JET
Seite 154 von 177 GB

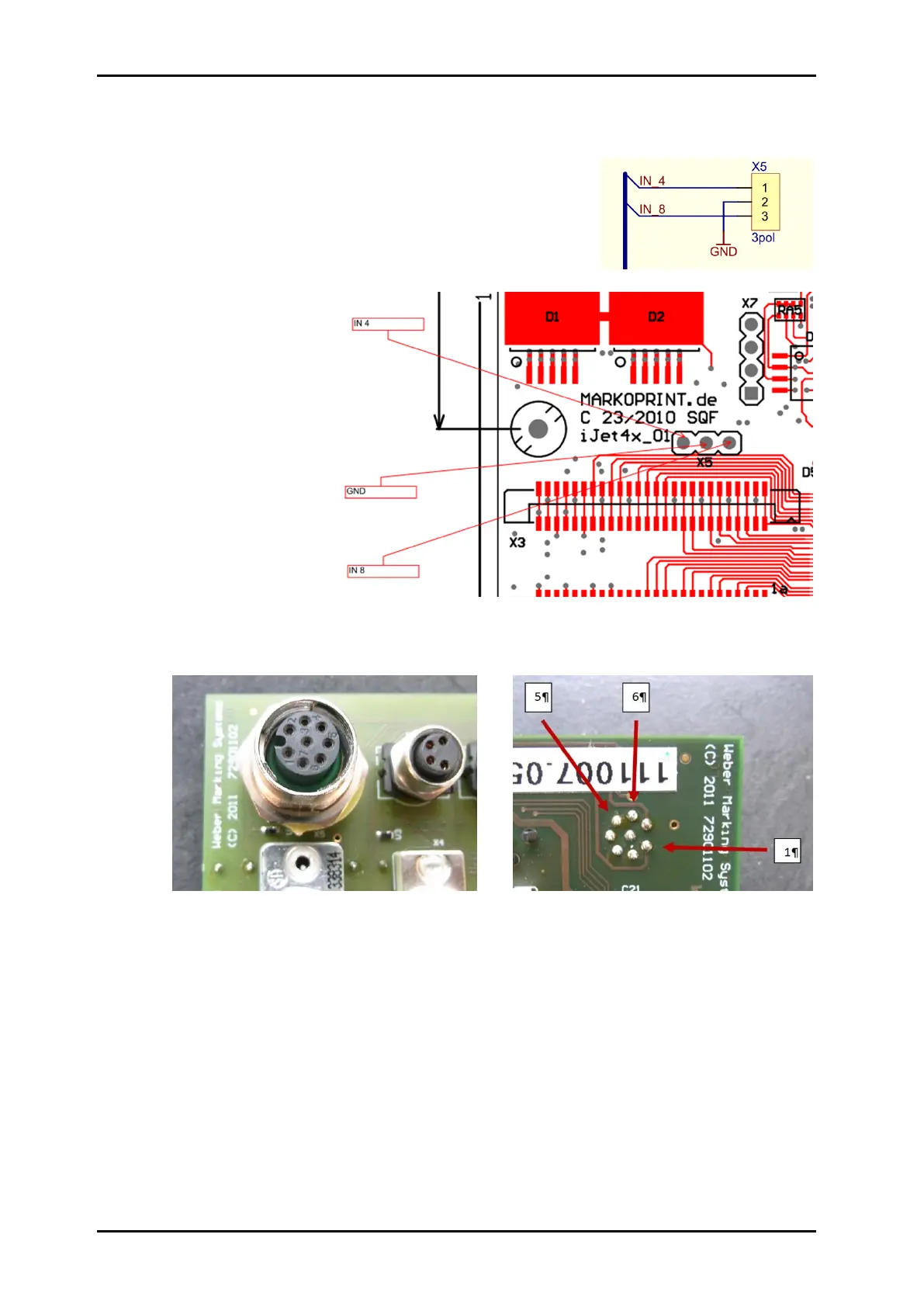

Additional input IN4 und IN8 connecting on the flange plate:
On the mainboard you can find a connector with IN4 und IN8:
Theas three pins must be connected with the M12 connector to reach the signals from
the outside.
