CHAPTER 6 - DETAILED PARAMETER DESCRIPTION
Range
[Factory Setting]
Parameter
Unit
Description / Notes
This is the time that the CFW-09 waits before enabling the ramp after
receiving the “Start” command.
P356
(1)
0.0 to 10.0
Delayfor
[ 0.0 ]
RampEnable
0.1 s
Time constant of the filter applied to the torque current. The sampling
time is 5 ms.
It works along with P358 and activates a digital or relay output that was
set to the option Torque Polarity +/-.
The filtered torque current may be available at analog outputsAO3 and
AO4 when theyare set to the option “Iq with P357” (P255 and/or P257 =
38).
P357
(1)
0.00 to 9.99
Filter for the
[0.00]
Torque Current-Iq
0.01 s
Establishes the percentage of hysteresis that is applied to the
commutation of a digital (DOx) or relay output when they are set to the
options 34 or 35.
P358
(1)
0.00 to 9.99
Hysteresis for the
[2.00]
Torque Current - Iq
0.01 %
P361
(1)
0 or 1
Load Detector
[0]
-
The motor accelerates up to the stabilization speed and remains at this
speed during the time set at parameter P363.
During this period, the CFW-09 detects the load condition by using the
average current.
P362
(1)
0 to P134
Stabilization Speed
[90]
1 rpm
Available only
if P361 = 1 (On)
H1 = P358 x rated torque
H2 = P358 x rated torque
H2
H1
Positive Torque (+)
Torque Polarity
Negative Torque (-)
Iq with P357

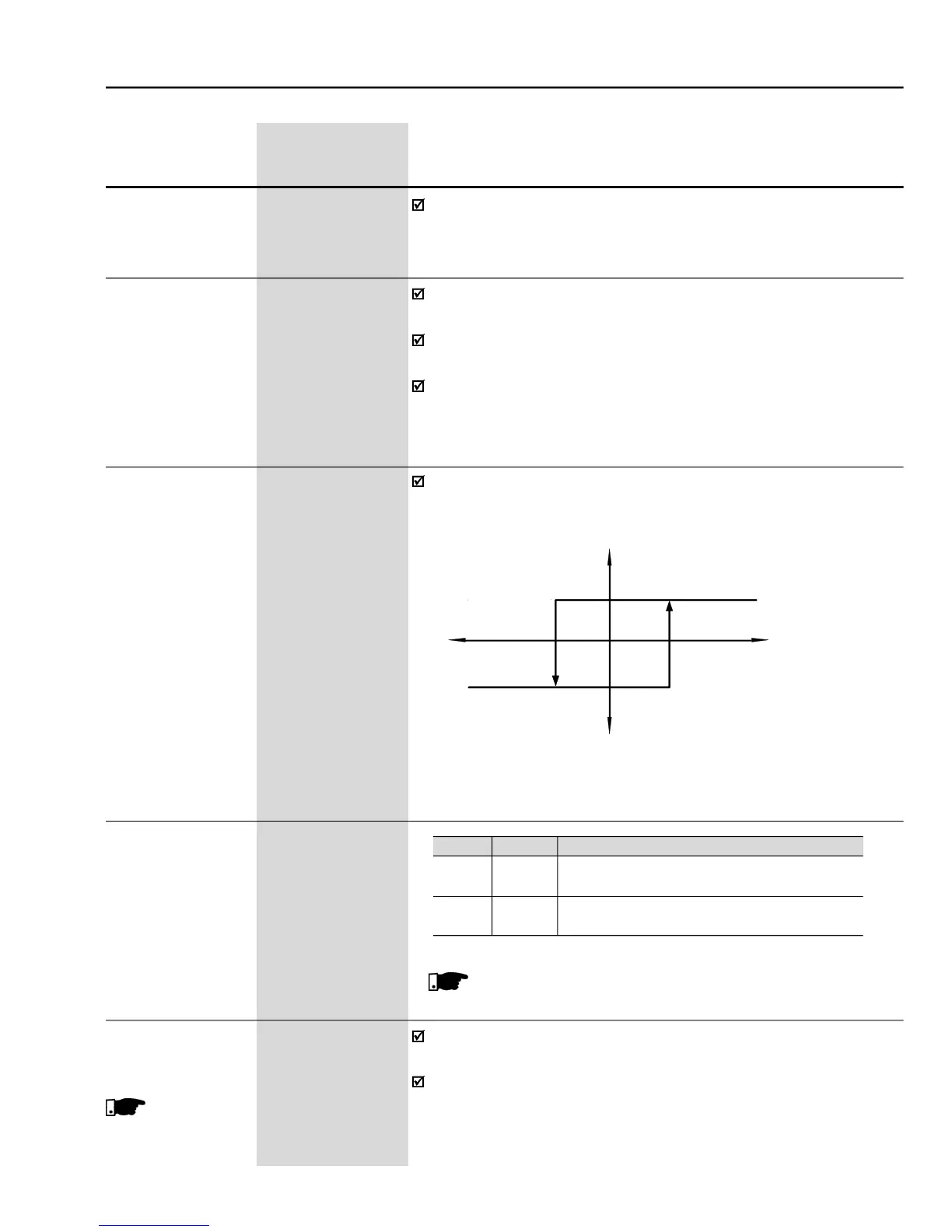

Figure 6.45 -
Hysteresis for the torque current - Iq
Description
Functions that are set at parameters from P362 to P368
are disabled.
The following functions are enabled: Slack Cable De-
tection, Lightweight Level and Overweight Detection.
P361
0
1
Function
Off
On
Table 6.57
- Load detector
NOTE!
Refer to figures 6.46 a) and b).
