CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES
8.16
CFW-09 SHARK
NEMA 4X
In applications that need a inverter with a higher protection enclosure, the
CFW-09 SHARK NEMA 4X is indicated. The NEMA 4X provides protection
against dust, dirt and splashing or hose-directed water.
The SHARK NEMA 4X is the CFW-09 standard with a stainless steel
enclosure. The models are:
CFW 09 0006 T 2223
CFW 09 0007 T 2223
CFW 09 0010 T 2223
CFW 09 0016 T 2223
CFW 09 0003 T 3848
CFW 09 0004 T 3848
CFW 09 0005 T 3848
CFW 09 0009 T 3848
CFW 09 0013 T 3848
CFW 09 0016 T 3848
Size 1
(*)
Size 2
(*)
Size 1
(*)
Size 2
(*)
(*)
TheShark inverterdimensionsaredistinctfrom thestandardCFW-09inverter,
so, the Sizes 1 and 2 from the Shark inverter are different from the Sizes 1
and 2 of the standard CFW-09.
8.16.1
Enclosure
Specifications
8.16.2
Mechanical
Installation
NEMAType 4X indoors;
NEMAType 12 indoors;
IP 56;
Other specifications are same to the standard CFW-09 and are explained
along this manual.
Theinvertercomes coveredbya plastic film.Remove this sheetbeforestarting
the installation.
Install the inverter in an environment that does not exceed Type 4 / 4X / 12
limitations.
Install the inverter on a flat surface, in the vertical position.
External dimensions and mounting holes are according to figures 8.55 and
8.56.

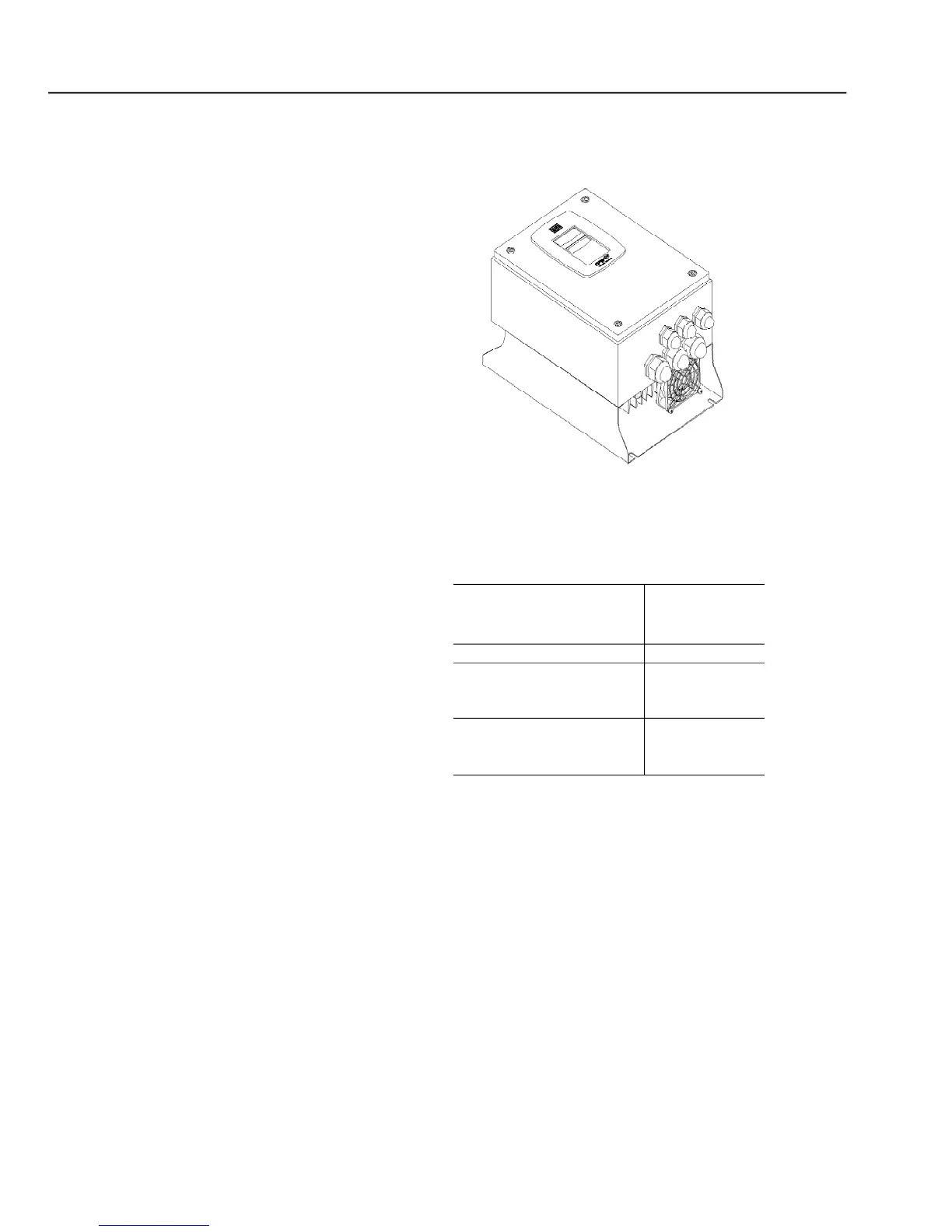

Figure 8.54
- CFW-09 Shark Nema 4X
