CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES
Sizes 2 to 8

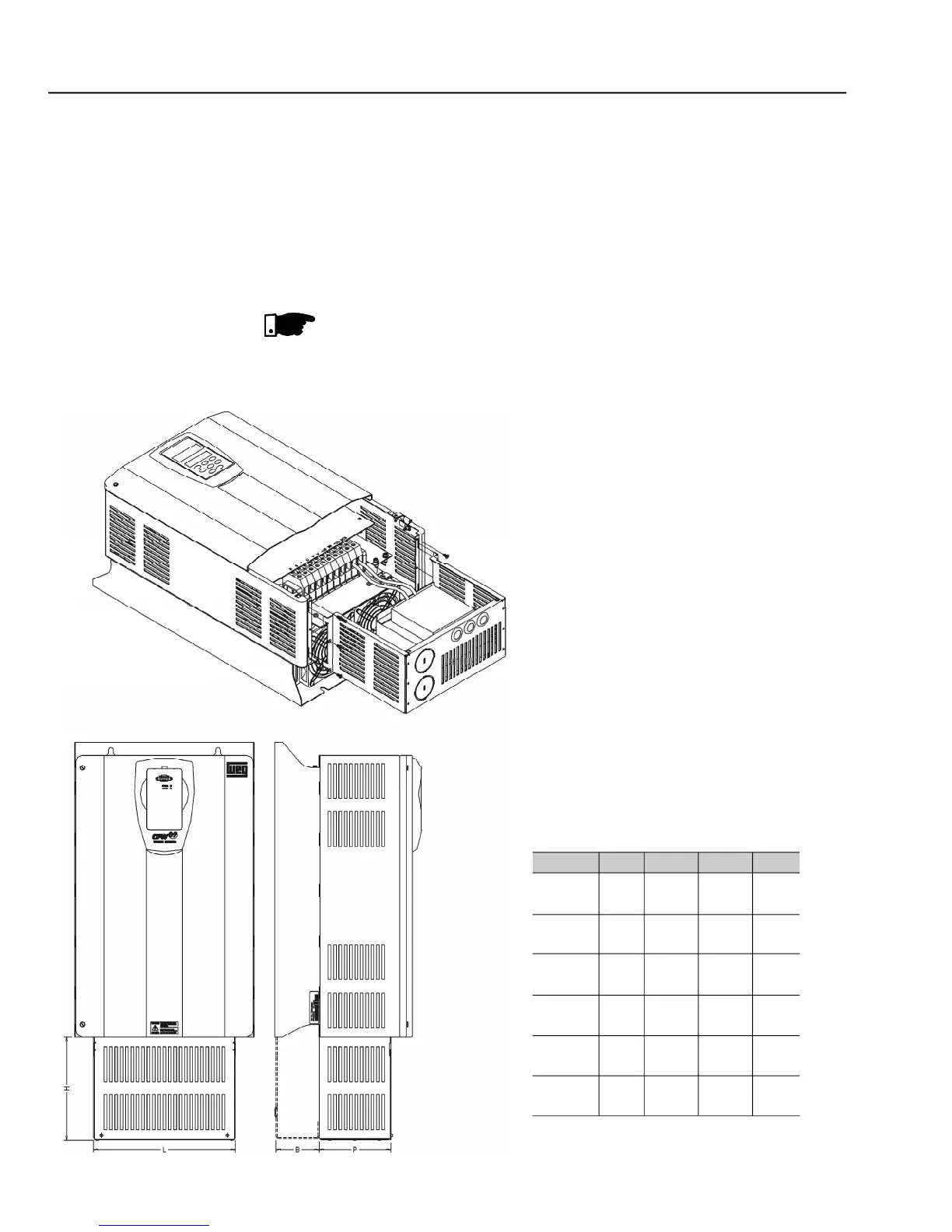

Dimensions mm (inch)
Model
L
H
P
B
Size 2
160
120
105.5
-
(6.30)
(4.72)
(4.15)
Size 3
153
137
134
-
(6.02)
(5.39)
(5.27)
Size 4
180
172
134
-
(7.08)
(6.77)
(5.27)
Size 5
265
193.5
134
-
(10.43)
(7.57)
(5.27)
Size 6-7
265
212.5
159
-
(10.43)
(8.36)
(6.25)
Size 8
325
240
221.5
80.5
(12.79)
(9.44)
(8.72)
(3.16)
CFW-09 with DC Link inductor
Thefollowing CFW-09 inverter models, can be fitted with an inductor at theDC
Link alreadyincorporated into the product:
Models

16A/220-230 V, Models

13A/380-480 V and Models

240A/380-
480 V.
To request the inverter with an inductor already assembled, please add the
code“HC”(forinverteroperatingatconstant
torque)or“HV”(forinverteroperating
withvariabletorque) inthemodelCFW-09,
in the optionfield“SpecialHardware”
(refer to item 2.4).
NOTE!
Rememberthattheoperationathighercurrents thantheratedcurrent invariable
Torque mode is not possible with all inverter types (refer to items 9.1.2 and
9.1.3). Thus the HV optionis onlypossible with the types that can be operated
in that situation.
8.7.2 DC Link Inductor Built in
Table 8.11
- CFW-09 with DC Link inductor
dimensions
