CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES

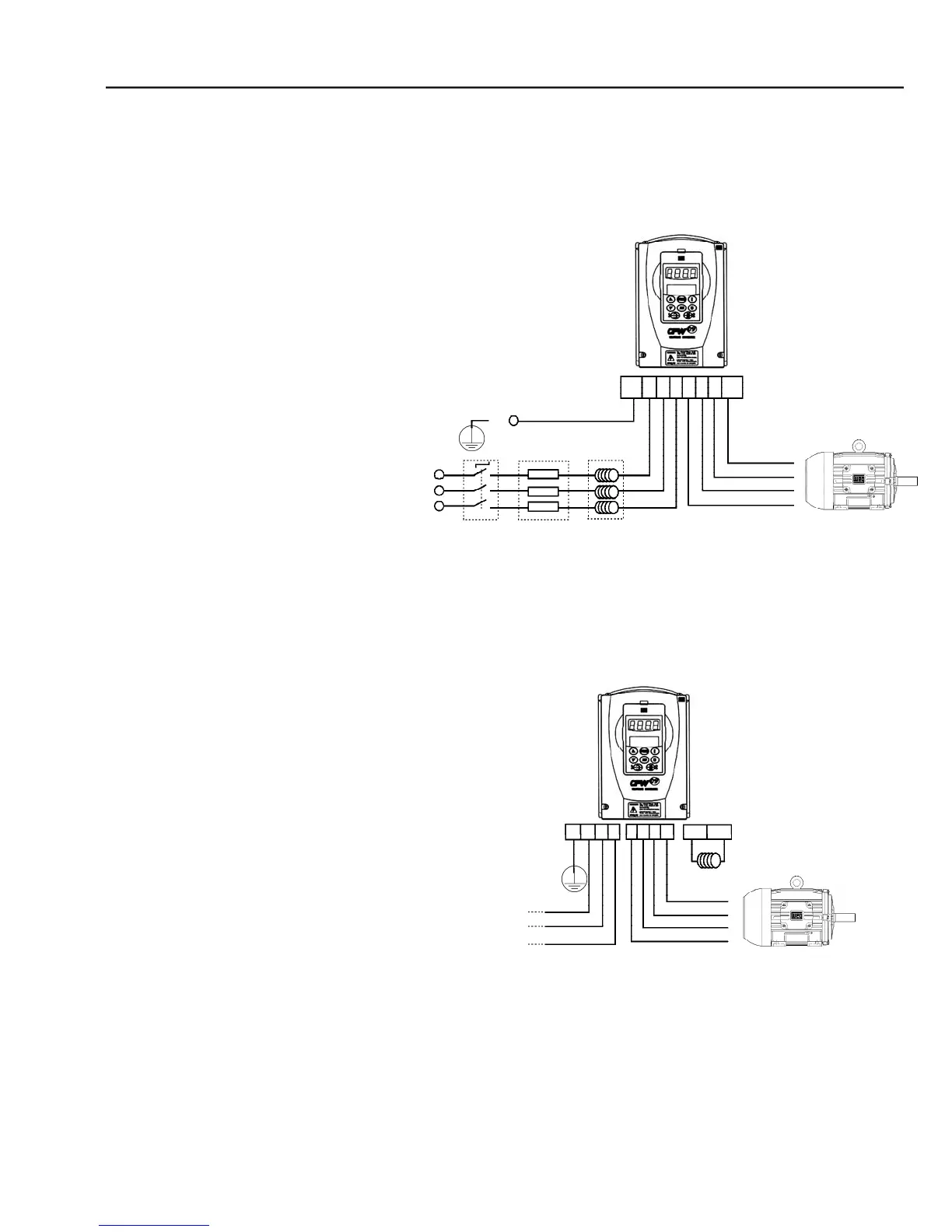

Figure 8.19 b)
– DC bus choke connection
U
V
W
PE
DC Bus
Choke
AC Input
R
S
T
AC Input
Fuses
Reactor
PE
Disconnect
Switch
Figure 8.19 a)
– Line reactor connection
P
E
R
S
T
U
V W
PE
P
E
R
S
T
+UD
DCR
The electrical installation of an input line reactor is shown on figure 8.19 a).
For CFW-09 sizes above 16A/220-230 V or 13A/380-480 V, the connection
of a DC Bus Chokeis possible. The DC bus chokeconnection is alsopossible
in all 2.9A to 32 A/500-600 V models. Figure 8.19 b) shows this connection.
