WEG CFW-09 - KIT KME (for Extractable Mounting)

329
CHAPTER 8 - CFW-09 OPTIONS AND ACCESSORIES
8.15
KIT KME (for Extractable
Mounting)
The kit KME enables the mounting of CFW-09 inverter in the sizes 7, 8, 8E, 9,
10
and 10E (models 361A to 600 A/380-480 V, 107A to 472 A/500-690 V and
100 A
to 428 A/660-690 V) in the panel in an extractable form. The inverter is
mounted in the panel like a sliding drawer, thus making easier the assembling
andmaintenance works. When requesting this kit,please specifythe following:
Lifting support set
Guide base of the KIT-KME for
panel mounting
Lateral guides for the car
M8x20 hexagon
socket-head screw

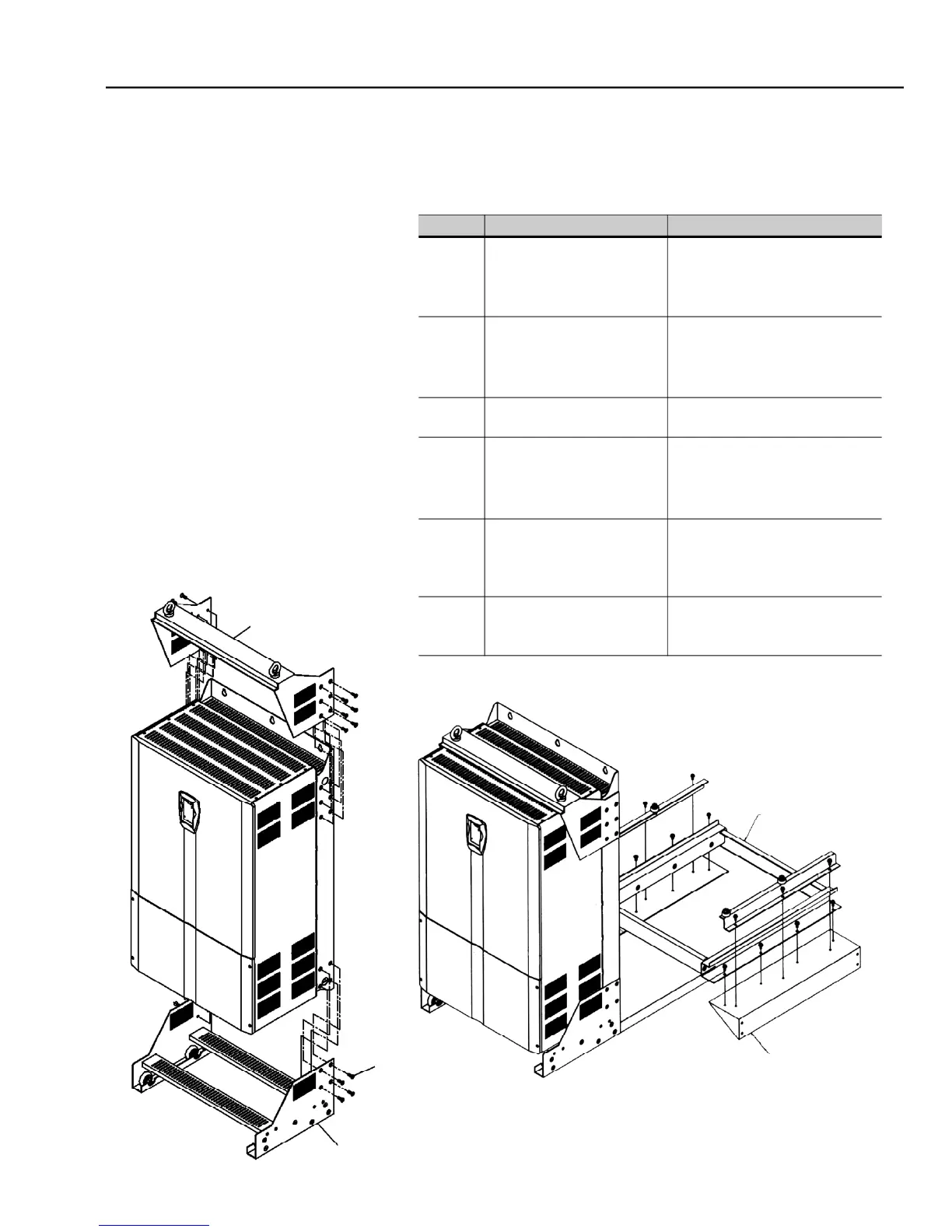

Figure 8.53
- Mounting of the KIT-KME on the inverter
Note:
Please refer to drawings in item 9.4.
Panel support
Item
417104899
417104467
417104898
417104896
417104897
417104895
Description
KIT KME - CFW-09 M10/L =1000
KIT KME - CFW-09M10/L = 800
KIT KME - CFW-09 M9/L = 800
KIT KME - CFW-09 M8/L = 600
KIT KME - CFW-09 M8/L = 800
KIT KME - CFW-09 M7/L = 600
Notes
Size
10 - 450A to 600 A/380-480 V and
Size
10E - 247Ato 472A/500-690 V and
255 A to 428 A/660-690 V
Panel width
= 1000 mm (39.37 in)
Size 10 - 450 A to 600A/380-480 V and
Size 10E - 247 A to 472 A/500-690 V and
255 A to 428 A/660-690 V
Panel width = 800 mm (31.50 in)
Size
9 - 312 A to 361A/380-480 V
Panel width
= 800 mm (31.50 in)
Size
8 - 211 A to 240 A/380-480 V and
Size
8E - 107Ato 211A/500-690 V and
100 A to 179 A/660-690 V
Panel width
= 600 mm (23.62 in)
Size
8 - 211 A to 240 A/380-480 V
Size
8E - 107 A to 211 A/500-690 V and
100 A to 179 A/660-690 V
Panel width
= 800 mm (31.50 in)
Size 7 - 142 A/380-480 V and
44 A to 79 A/500-600 V
Painel width = 600 mm (23.62 in)
