CHAPTER 3 - INSTALLATIONANDCONNECTION
Figure 3.8 c) and
d)
–

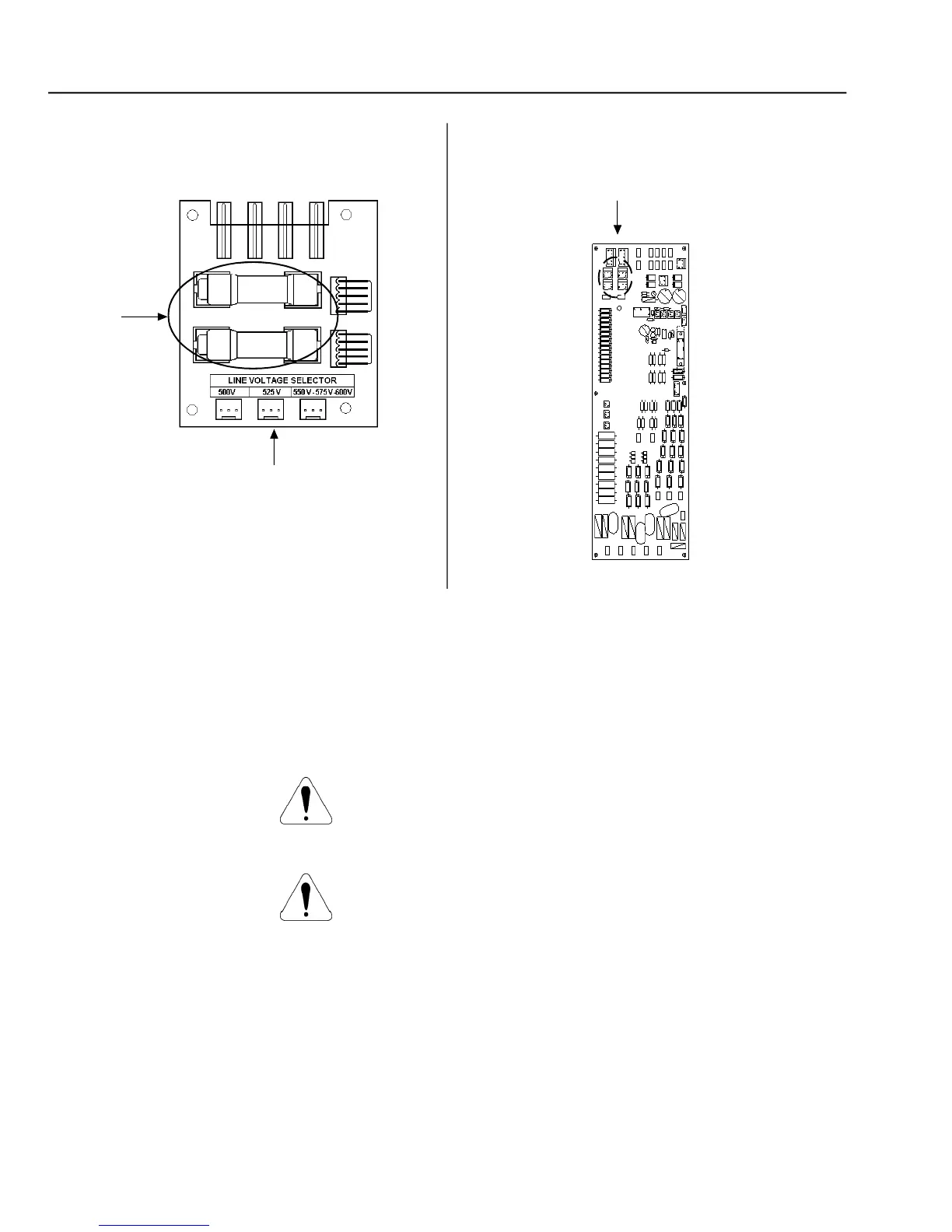

Rated voltage selection on
boards LVS1, CIP2, LVS2 and CIP3
RATEDVOLTAGE SELECTION
RATEDVOLTAGE SELECTION
c) LVS2 (size 7, 500-600 V)
d) CIP3 (size 8E and 10E, 500-690 V)
ATTENTION!
Sensitiveequipment (PLCs, temperature controllers, thermocouples, etc.)
and its wiring must stay at a minimum distance of 10 in (0.25 m) from the
frequencyinverters, thereactors andfrom the inputandmotorpower cables.
ATTENTION!
When flexible wires are used for power and grounding connections it is
necessaryto provide appropriatecrimp terminals.
Use wire sizing and fuses as recommended in table 3.5.
3.2.4
Power/Grounding Wiring
and Fuses
AUXILIARY
CIRCUITFUSES
